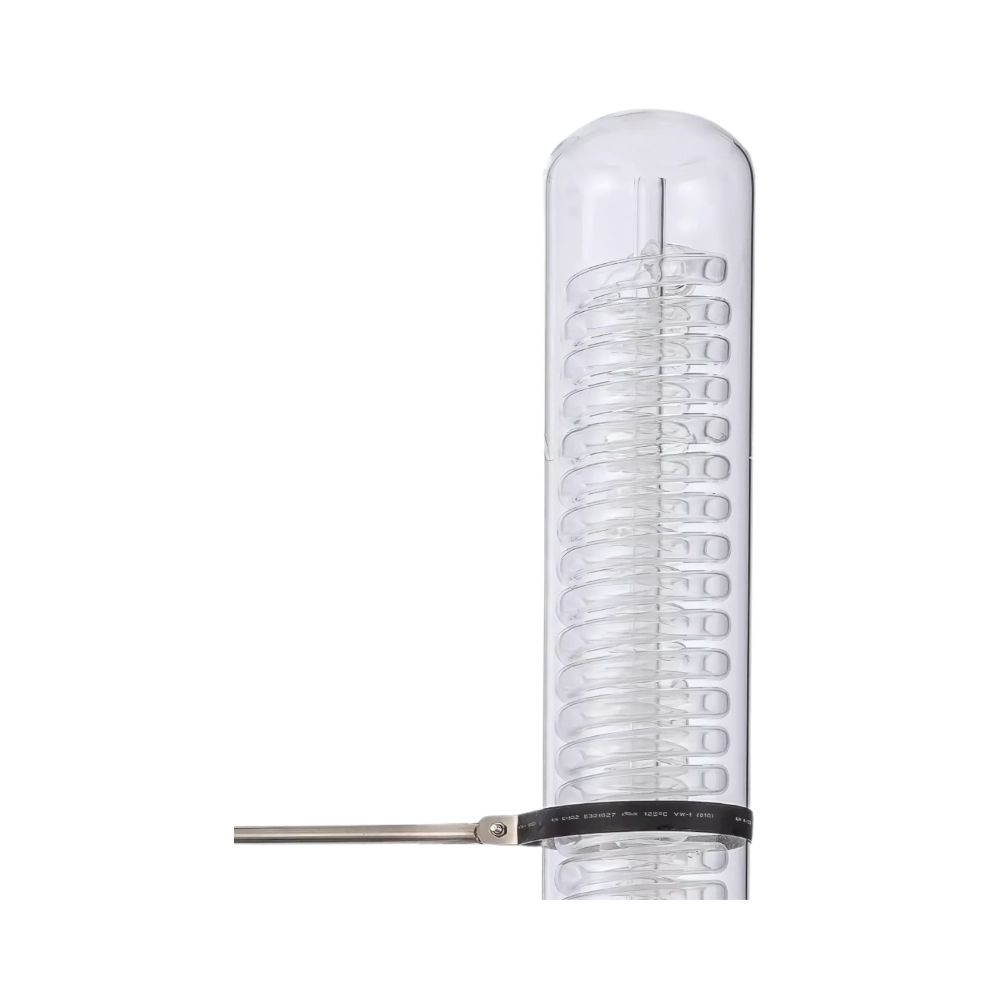

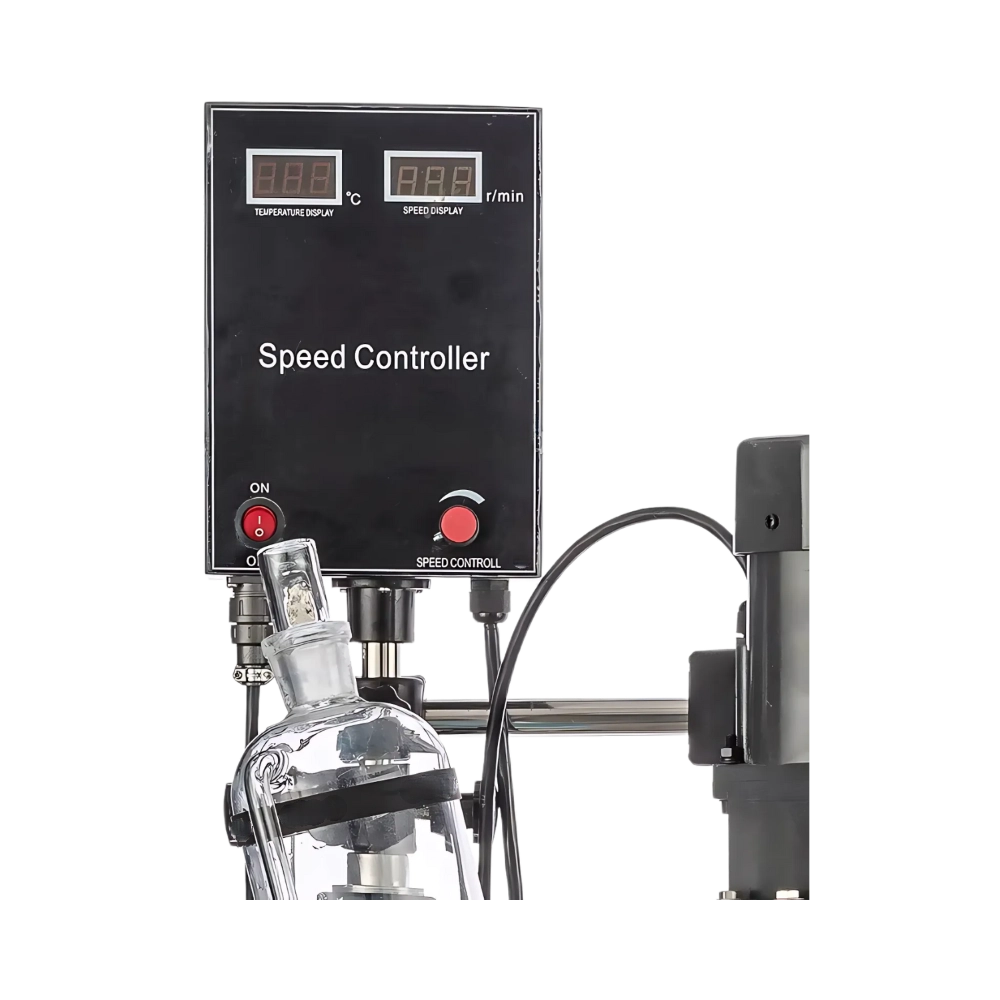

Single Layer Glass Reactor LMSLR-B105 comes with 20-liter vessel built for seamless reactions. It features solid charging port that offers direct addition of materials without interrupting internal processing. Equipped with speed regulator, it provides real-time stirring adjustments. Integrated temperature sensor port allows instant thermal tracking for reliable operation control. Our Reactor is ideal for chemical synthesis, material distillation, and solvent recovery.
Specifications
| Capacity | 20 L |
| Temperature Range | -80 to 250°C |
| Temperature Measurement Accuracy | ±1°C |
| Vacuum Degree | 0.098 MPa |
| Dropping Funnel Volume | 1 L |
| Rotation Speed Range | 0 to 450 rpm |
| Stirring Motor Power | 120W1/3 |
| Heating Power | 5kW |
| Power Supply | 220V/50Hz |
| Glass Vessel Diameter | 355 mm |
| Dimensions (W×D×H) | 810×540×1960 mm |
| Weight | 48 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Single Layer Glass Reactor LMSLR-B105 | $ 3187.5 | Each of 1 |
Features
Uniform heat distribution
Controlled liquid feeding
External vacuum connectivity
Mobile caster base
Dual-seal protection
Programmable system interface
Applications
Single Layer Glass Reactor LMSLR-B105 is ideal for chemical synthesis, material distillation, reaction monitoring, solvent recovery, pharmaceutical formulation, and vacuum-assisted evaporation in laboratory environments.
Similar Products
$ 5937.5 / Each of 1
$ 3487.5 / Each of 1
$ 3562.5 / Each of 1
$ 3650 / Each of 1
$ 2825 / Each of 1
$ 6312.5 / Each of 1
$ 2400 / Each of 1
$ 4150 / Each of 1
$ 4481.25 / Each of 1
$ 5375 / Each of 1
$ 17275 / Each of 1
$ 3850 / Each of 1
$ 3675 / Each of 1
$ 8750 / Each of 1
$ 2500 / Each of 1
Frequently Asked Questions
1 What is a Single Layer Glass Reactor?
A Single Layer Glass Reactor is an apparatus designed for chemical reactions with a single-layer wall for clear visibility and chemical resistance.
2 How is temperature controlled in Single Layer Glass Reactor?
Temperature control is typically achieved through external jackets or immersion in temperature-controlled baths, ensuring precise reaction conditions.
3 Can Single Layer Glass Reactor be used for pharmaceutical synthesis?
It is widely used in pharmaceutical synthesis for precise control and monitoring of chemical reactions.
4 Is Single Layer Glass Reactor suitable for polymerization processes?
It is ideal for polymerization due to its chemical resistance and ability to maintain controlled reaction environments.
5 Can Single Layer Glass Reactor be used for crystallization applications?
It is commonly employed in crystallization to observe crystal formation clearly and maintain proper reaction conditions.
6 Is Single Layer Glass Reactor used in research and development labs?
It is a standard tool in R&D labs for experimental reactions and process optimization.
7 Is Single Layer Glass Reactor used for food and flavor industry applications?
It is used in the food and flavor industry for controlled reaction processes and product development.
8 Can Single Layer Glass Reactor be used for catalyst testing?
It is commonly used for catalyst testing due to its transparent design, allowing observation of catalytic reactions.
9 Can Single Layer Glass Reactor be used in environmental testing applications?
It is often used in environmental labs for testing reactions related to pollution control and remediation.
10 Is Single Layer Glass Reactor used for quality control testing in manufacturing?
It is used in quality control to simulate and monitor chemical processes for consistency.
