Single Layer Glass Reactor LMSLR-B101 is designed with 2-liter vessel capacity. It features stainless steel bath and vacuum gauge for reliable temperature and pressure monitoring. Equipped with an all-copper brushless motor, it ensures high torque, smooth operation, and longer life. Incorporates stepless speed regulation for flexible control during material stirring and reaction processes. Our Reactor enables evaporation and distillation in chemical and pharmaceutical labs.
Specifications
| Capacity | 2 L |
| Temperature Range | -80 to 250°C |
| Bath Temperature Range | RT to 180°C |
| Temperature Measurement Accuracy | ±1°C |
| Vacuum Degree | 0.098 MPa |

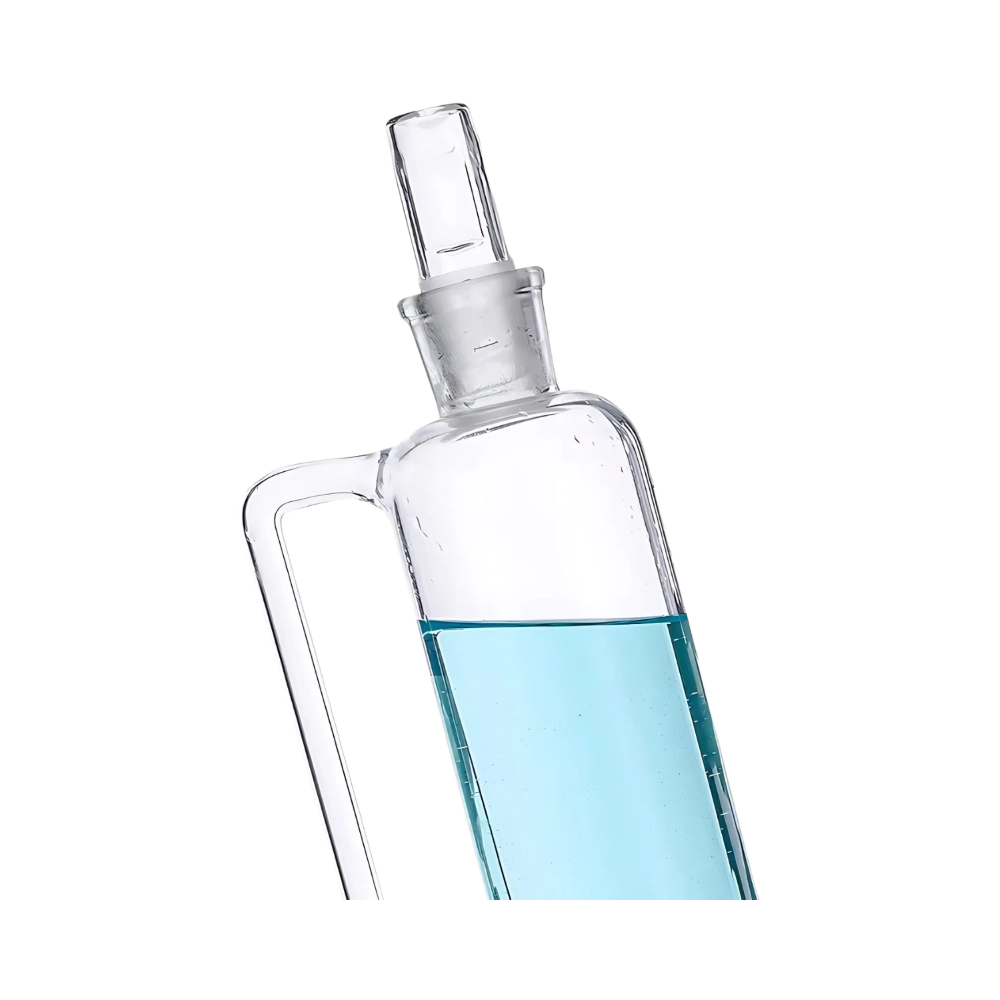

| Dropping Funnel Volume | 250 ml |
| Rotation Speed Range | 0 to 800 rpm |
| Stirring Motor Power | 40W |
| Heating Power | 1.5kW |
| Power Supply | 220V/50Hz |
| Glass Vessel Diameter | 166 mm |
| Dimensions (W×D×H) | (400 to 700)×330×930 mm |
| Weight | 18 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Single Layer Glass Reactor LMSLR-B101 | $ 2262.5 | Each of 1 |
Features
PTFE contact parts
Ceramic bearing seal
Cooling water inlet

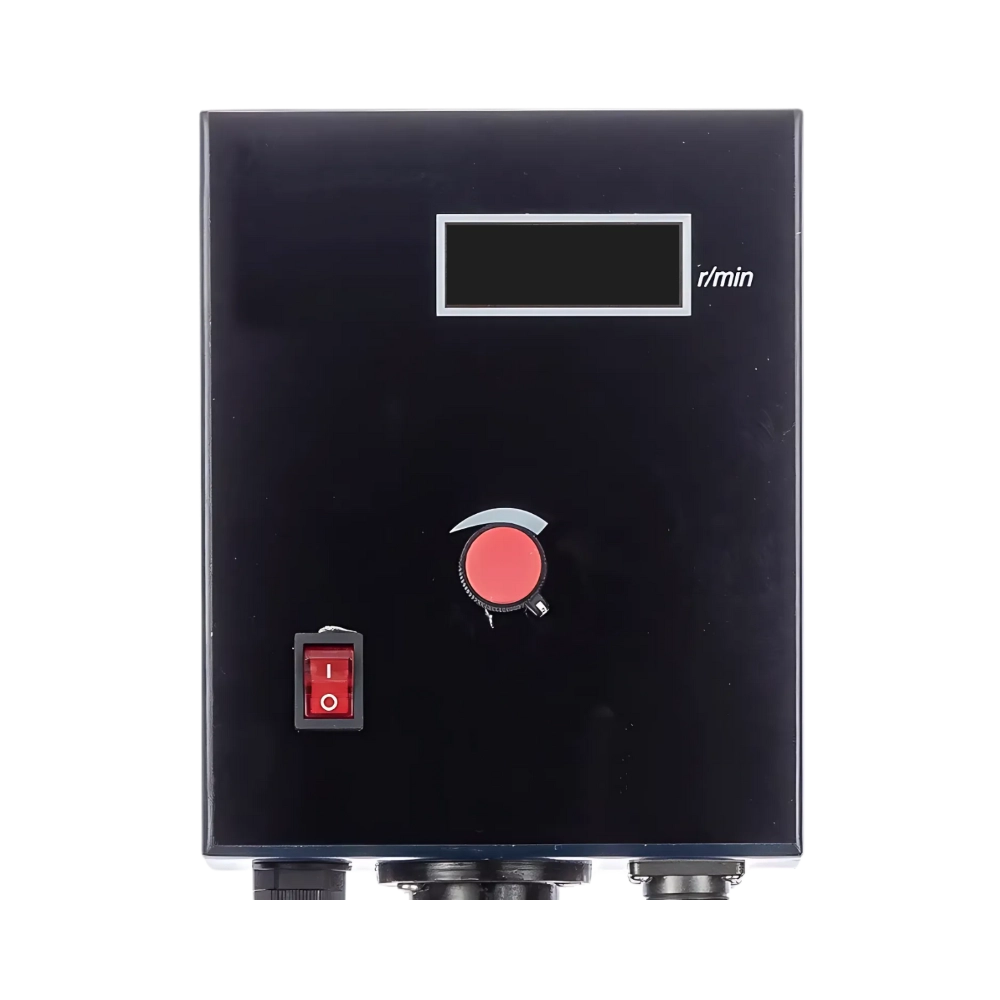

Digital system controller
Stable bottom base
Air nozzle
Applications
Single Layer Glass Reactor LMSLR-B101 is ideal for material synthesis, reaction, evaporation, mixing, and distillation processes in chemical engineering, pharmaceuticals, biomedicine, environmental studies, metallurgy, and aerospace research.
Similar Products
$ 6687.5 / Each of 1
$ 5937.5 / Each of 1
$ 4150 / Each of 1
$ 2825 / Each of 1
$ 6887.5 / Each of 1
$ 2400 / Each of 1
$ 3750 / Each of 1
$ 3487.5 / Each of 1
$ 3650 / Each of 1
$ 8750 / Each of 1
$ 3562.5 / Each of 1
$ 6312.5 / Each of 1
$ 5375 / Each of 1
$ 3675 / Each of 1
$ 3812.5 / Each of 1
Frequently Asked Questions
1 What is a Single Layer Glass Reactor?
A Single Layer Glass Reactor is an apparatus designed for chemical reactions with a single-layer wall for clear visibility and chemical resistance.
2 How is temperature controlled in Single Layer Glass Reactor?
Temperature control is typically achieved through external jackets or immersion in temperature-controlled baths, ensuring precise reaction conditions.
3 Can Single Layer Glass Reactor be used for pharmaceutical synthesis?
It is widely used in pharmaceutical synthesis for precise control and monitoring of chemical reactions.
4 Is Single Layer Glass Reactor suitable for polymerization processes?
It is ideal for polymerization due to its chemical resistance and ability to maintain controlled reaction environments.
5 Can Single Layer Glass Reactor be used for crystallization applications?
It is commonly employed in crystallization to observe crystal formation clearly and maintain proper reaction conditions.
6 Is Single Layer Glass Reactor used in research and development labs?
It is a standard tool in R&D labs for experimental reactions and process optimization.
7 Is Single Layer Glass Reactor used for food and flavor industry applications?
It is used in the food and flavor industry for controlled reaction processes and product development.
8 Can Single Layer Glass Reactor be used for catalyst testing?
It is commonly used for catalyst testing due to its transparent design, allowing observation of catalytic reactions.
9 Can Single Layer Glass Reactor be used in environmental testing applications?
It is often used in environmental labs for testing reactions related to pollution control and remediation.
10 Is Single Layer Glass Reactor used for quality control testing in manufacturing?
It is used in quality control to simulate and monitor chemical processes for consistency.
