Overview

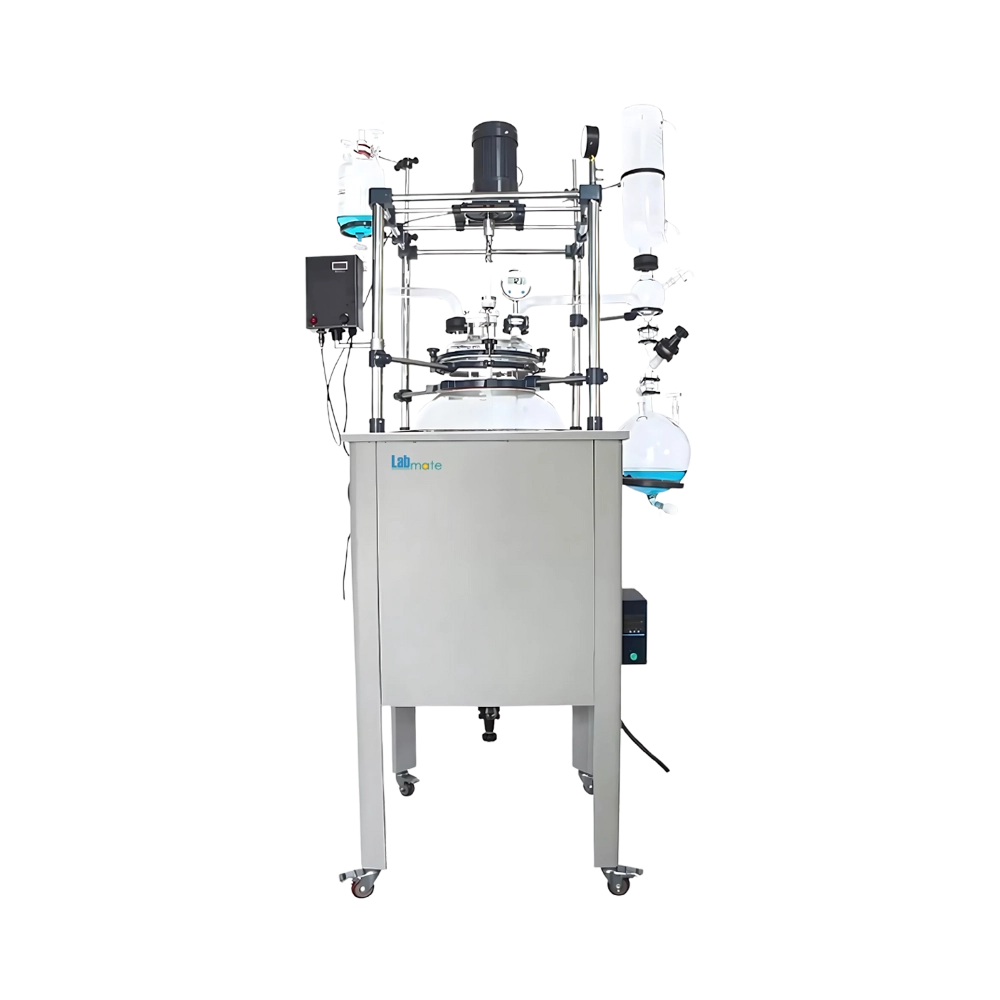

Single Layer Glass Reactor LMSLR-B109 features cylindrical vessel with 100-liter capacity. Its stirring paddle ensures thorough material mixing, promoting uniform distribution and improved reaction. Equipped with controller unit, it regulates rotation speed and temperature settings with an intuitive interface. Incorporates constant-pressure funnel for stable liquid feeding without causing fluctuations. Our Reactor is ideal for solvent recovery, distillation, and concentration.
Features :
Efficient thermal transfer
High-torque motor
Low noise operation
Chemical-resistant surfaces
External vacuum connectivity
Mobile caster base
Dual-seal protection
Specifications :
| Capacity | 100 L |
| Temperature Range | -80 to 250°C |
| Temperature Measurement Accuracy | ±1°C |
| Vacuum Degree | 0.098 MPa |
| Dropping Funnel Volume | 5 L |
| Rotation Speed Range | 0 to 450 rpm |
| Stirring Motor Power | 200W1/3 |
| Heating Power | 15kW |
| Power Supply | 220V/50Hz (Stirrer), 330V/50Hz (Heating bath) |
| Dimensions (W×D×H) | 900×770×2250 mm |
| Weight | 110 Kg |
Applications :
Single Layer Glass Reactor LMSLR-B109 is widely employed for vacuum evaporation, crystallization, chemical synthesis, solvent recovery, pharmaceutical formulation, concentration, and distillation.
