Single Layer Glass Reactor LMSLR-B100

Name: Single Layer Glass Reactor LMSLR-B100
Brand: Labmate
SKU: LMSLR-B100
Rating: 4.8 (482 reviews)

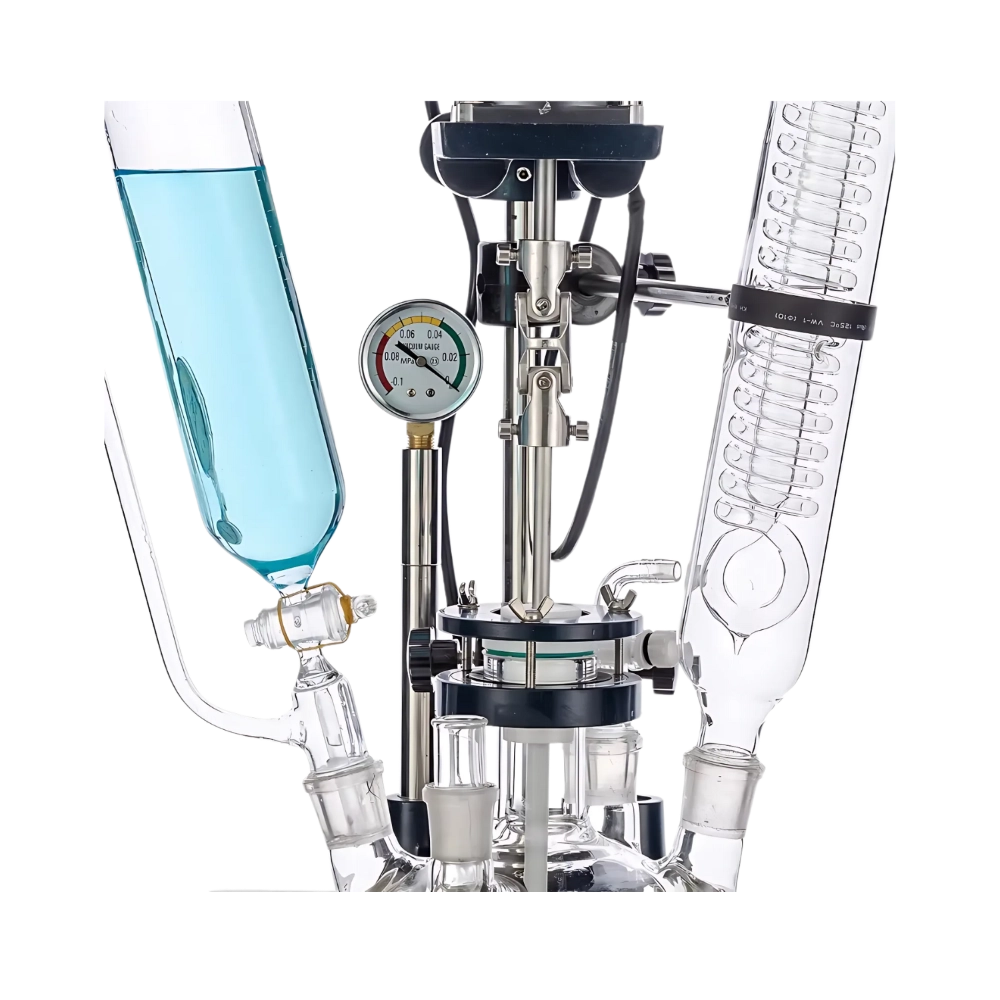

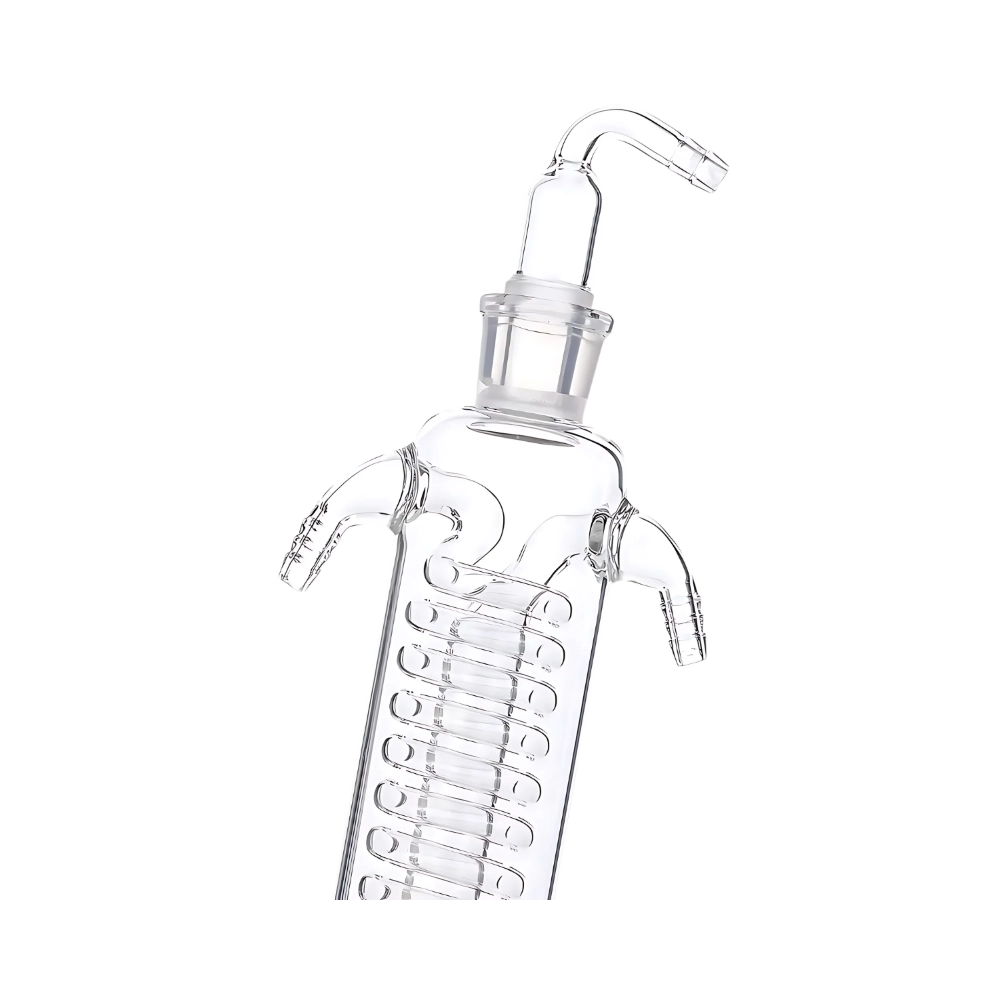

Single Layer Glass Reactor LMSLR-B100 is a desktop reactor with 1 liter vessel capacity. It features high borosilicate glass body for excellent thermal and chemical resistance. Equipped with high-efficiency condenser for improved vapor cooling and condensation. Integrated low-noise motor provides powerful mixing while maintaining quiet operation. Our Reactor is ideal for material synthesis, distillation, and evaporation.

Catalog Send Mail Whatsapp

Specifications

Capacity	1 L
Temperature Range	-80 to 250°C
Bath Temperature Range	RT to 180°C
Temperature Measurement Accuracy	±1°C
Vacuum Degree	0.098 MPa
Dropping Funnel Volume	250 ml
Rotation Speed Range	0 to 800 rpm
Stirring Motor Power	40W
Heating Power	1.5kW
Power Supply	220V/50Hz
Glass Vessel Diameter	131 mm
Dimensions (W×D×H)	(400 to 700)×330×900 mm
Weight	18 Kg

Pricing

Product	Price	Unit	Action
Single Layer Glass Reactor LMSLR-B100	$ 2175	Each of 1

Features

Stepless speed regulation

PTFE sealing ports

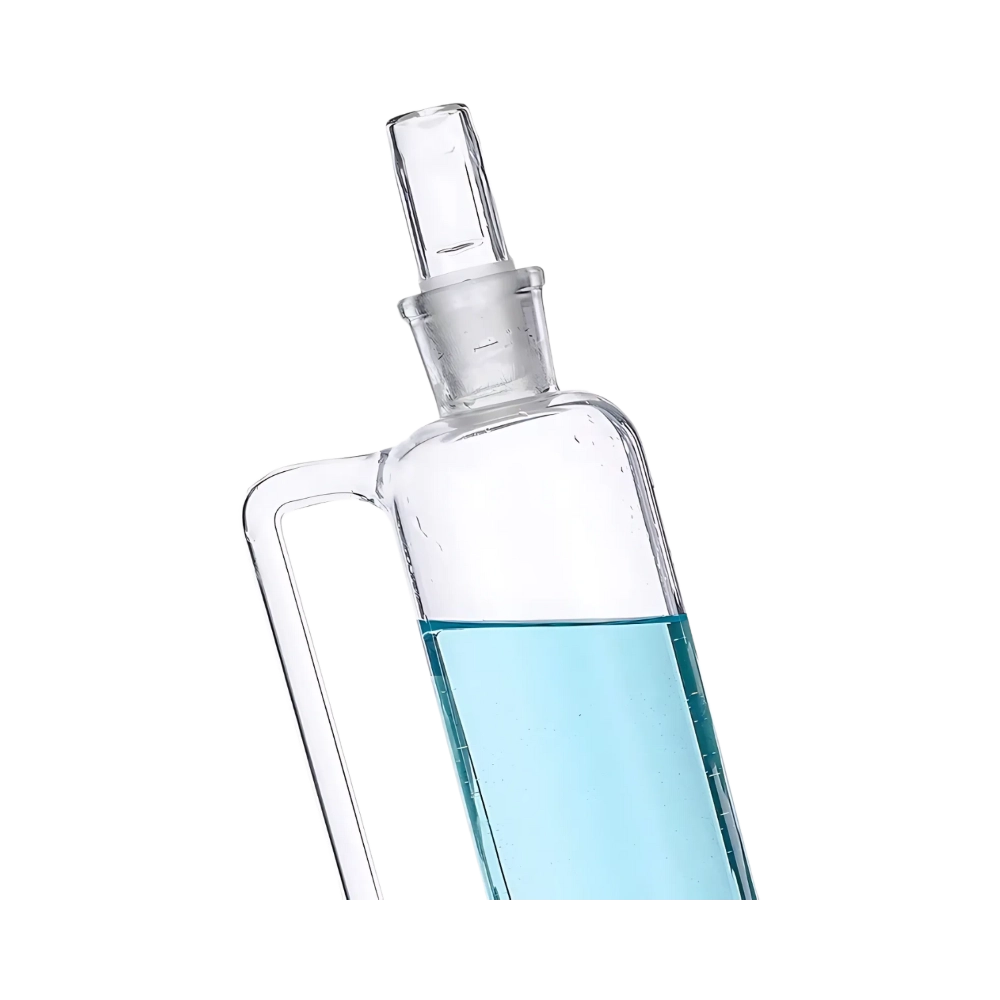

Constant pressure funnel

Vacuum connection port

Uniform stirring paddle

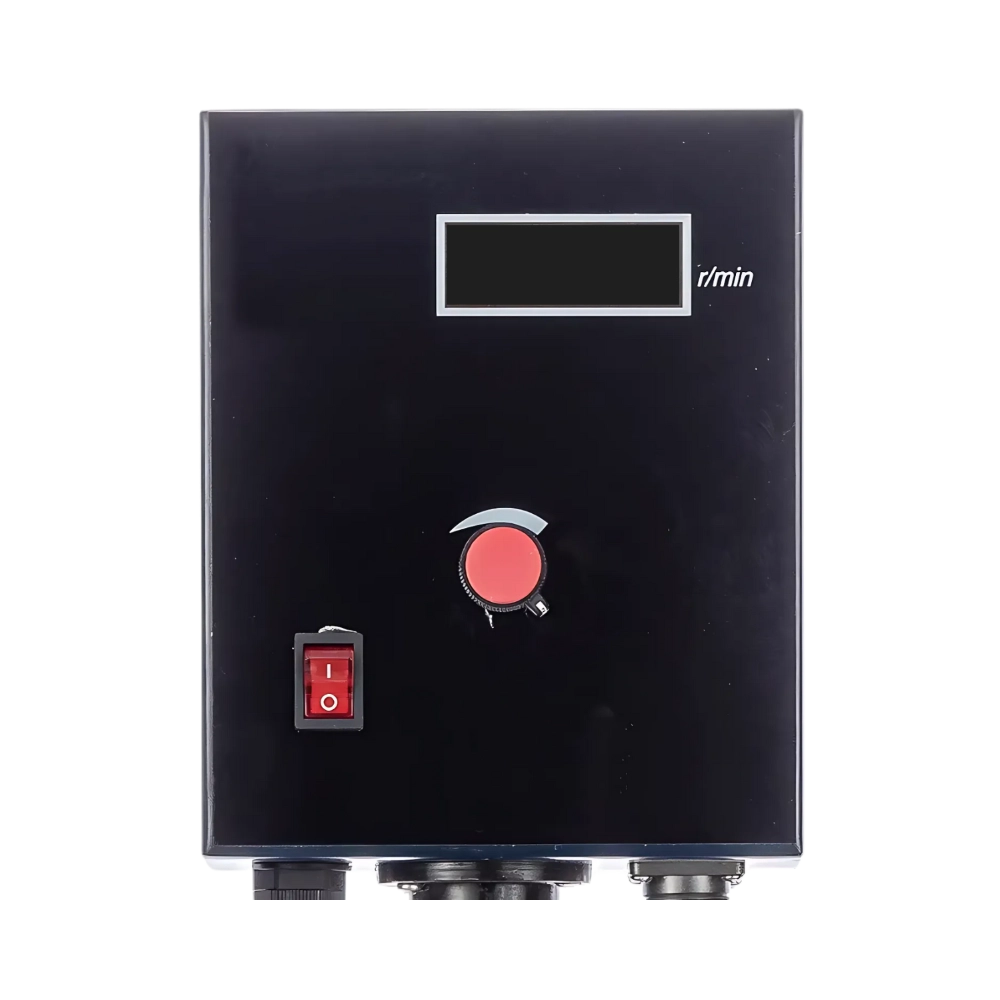

Digital system controller

Stable bottom base

Applications

Single Layer Glass Reactor LMSLR-B100 is applied in material synthesis, reaction, evaporation, mixing, and distillation processes in chemical engineering, pharmaceuticals, biomedicine, environmental studies, metallurgy, and aerospace research.

Single Layer Glass Reactor LMSLR-B109

Capacity: 100 L
Temperature Range: -80 to 250°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa
Dropping Funnel Volume: 5 L

$ 3675 / Each of 1

Single Layer Glass Reactor LMSLR-A106

Capacity: 20 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 1 L
Receiving Flask Volume: 0.5 L

$ 5937.5 / Each of 1

Single Layer Glass Reactor LMSLR-A109

Capacity: 100 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 2 L
Receiving Flask Volume: 0.5 L

$ 8750 / Each of 1

Single Layer Glass Reactor LMSLR-B107

Capacity: 50 L
Temperature Range: -80 to 250°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa
Dropping Funnel Volume: 2 L

$ 3562.5 / Each of 1

Single Layer Glass Reactor LMSLR-B110

Capacity: 200 L
Temperature Range: -80 to 250°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa
Receiving Bottle Volume: 10 L

$ 6887.5 / Each of 1

Single Layer Glass Reactor LMSLR-B103

Capacity: 5 L
Temperature Range: -80 to 250°C
Bath Temperature Range: RT to 180°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa

$ 2500 / Each of 1

Single Layer Glass Reactor LMSLR-A101

Capacity: 1 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 0.25 L
Receiving Flask Volume: 0.25 L

$ 3750 / Each of 1

Single Layer Glass Reactor LMSLR-B104

Capacity: 10 L
Temperature Range: -80 to 250°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa
Dropping Funnel Volume: 1 L

$ 2825 / Each of 1

Single Layer Glass Reactor LMSLR-B106

Capacity: 30 L
Temperature Range: -80 to 250°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa
Dropping Funnel Volume: 2 L

$ 3487.5 / Each of 1

Single Layer Glass Reactor LMSLR-A102

Capacity: 2 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 0.25 L
Receiving Flask Volume: 0.25 L

$ 3812.5 / Each of 1

Single Layer Glass Reactor LMSLR-B102

Capacity: 3 L
Temperature Range: -80 to 250°C
Bath Temperature Range: RT to 180°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa

$ 2400 / Each of 1

Single Layer Glass Reactor LMSLR-A103

Capacity: 3 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 0.25 L
Receiving Flask Volume: 0.25 L

$ 3850 / Each of 1

Single Layer Glass Reactor LMSLR-A104

Capacity: 5 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 0.5 L
Receiving Flask Volume: 0.25 L

$ 4150 / Each of 1

Single Layer Glass Reactor LMSLR-B108

Capacity: 100 L
Temperature Range: -80 to 250°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa
Dropping Funnel Volume: 2 L

$ 4481.25 / Each of 1

Single Layer Glass Reactor LMSLR-A107

Capacity: 30 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 1 L
Receiving Flask Volume: 0.5 L

$ 6312.5 / Each of 1

Frequently Asked Questions

1 What is a Single Layer Glass Reactor?

A Single Layer Glass Reactor is an apparatus designed for chemical reactions with a single-layer wall for clear visibility and chemical resistance.

2 How is temperature controlled in Single Layer Glass Reactor?

Temperature control is typically achieved through external jackets or immersion in temperature-controlled baths, ensuring precise reaction conditions.

3 Can Single Layer Glass Reactor be used for pharmaceutical synthesis?

It is widely used in pharmaceutical synthesis for precise control and monitoring of chemical reactions.

4 Is Single Layer Glass Reactor suitable for polymerization processes?

It is ideal for polymerization due to its chemical resistance and ability to maintain controlled reaction environments.

5 Can Single Layer Glass Reactor be used for crystallization applications?

It is commonly employed in crystallization to observe crystal formation clearly and maintain proper reaction conditions.

6 Is Single Layer Glass Reactor used in research and development labs?

It is a standard tool in R&D labs for experimental reactions and process optimization.

7 Is Single Layer Glass Reactor used for food and flavor industry applications?

It is used in the food and flavor industry for controlled reaction processes and product development.

8 Can Single Layer Glass Reactor be used for catalyst testing?

It is commonly used for catalyst testing due to its transparent design, allowing observation of catalytic reactions.

9 Can Single Layer Glass Reactor be used in environmental testing applications?

It is often used in environmental labs for testing reactions related to pollution control and remediation.

10 Is Single Layer Glass Reactor used for quality control testing in manufacturing?

It is used in quality control to simulate and monitor chemical processes for consistency.
