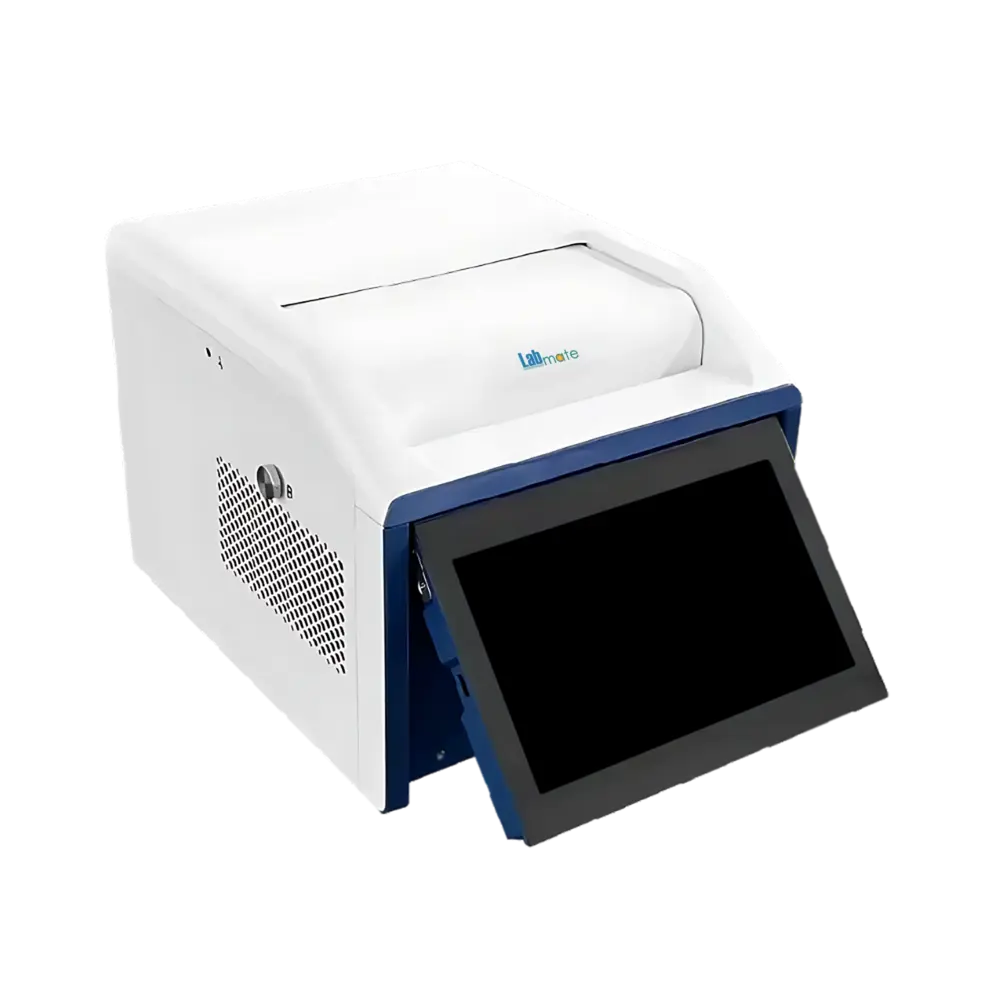

Gradient Thermal Cycler with touch screen display

Gradient Thermal Cycler LMGT-C100

Name: Gradient Thermal Cycler LMGT-C100
Brand: Labmate
SKU: LMGT-C100
Rating: 4.9 (417 reviews)

Gradient Thermal Cycler LMGT-C100 is designed with 96×0.2 ml sample block. It features thermoelectric semiconductor technology, enabling stable and quick temperature transitions. Equipped with touch screen display, it allows easy programming and clear visual monitoring. Incorporates automatic hot-lid control that seals tubes uniformly and prevents sample evaporation. Our Thermal Cycler is ideal for molecular research, clinical diagnostics, and food testing.

Catalog Send Mail Whatsapp

Specifications

Capacity	96×0.2 ml
Gradient Temperature	1 to 36°C
Ramp Rate	5.5°C/s
Block Temperature Range	4 to 99.9°C
Temperature Uniformity	±0.2℃
Temperature Control	Thermoelectric semiconductor technology
Temperature Distribution	±0.2℃ (55℃)
Temperature Accuracy	Less than or equal to ±0.1℃ (55℃)
Temperature Control Mode	Block mode, Tube mode
Ramp Rate Adjusting Range	0.1 to 4.5°C
Maximum Cycles	99
Hot Lid Temperature Accuracy	± 0.5℃
Hot-Lid Temperature Range	Room temperature + 5 to 110 ℃
Heating/Cooling Rate	Up to 5°C/s
Program Capacity	Infinite
Display	10.1- inch touch screen
Screen Adjustability	Rotatable (75° max)
Communication Interface	USB
Power Consumption	600W
Power Supply	100 to 240VAC, 50/60Hz
Dimensions	353×297×267.5 mm
Weight	17 kg

Pricing

Product	Price	Unit	Action
Gradient Thermal Cycler LMGT-C100	$ 4593.75	Each of 1

Features

Fast heating/cooling

Power-off protection

USB data transfer

Massive storage space

Compact structure

Side ventilation panel

Applications

Gradient Thermal Cycler LMGT-C100 is ideal for molecular cloning, vector construction, pathogen detection, genetic screening, and animal disease diagnostics in research labs, medical centers, and veterinary institutions.

Gradient Thermal Cycler LMGT-B104

Capacity: 384 well
Temperature Range: 0 to 100 °C
Maximum. Heating Rate: 4.5 °C/s
Maximum. Cooling Rate: 4 °C/s
Uniformity: ≤ ± 0.2 °C

$ 3787.5 / Pack of 1

Gradient Thermal Cycler LMGT-B102

Capacity: 96×0.2 ml+77×0.5 ml
Temperature Range: 0 to 100 °C
Maximum. Heating Rate: 4.5 °C/s
Maximum. Cooling Rate: 4 °C/s
Uniformity: ≤ ± 0.2 °C

$ 3612.5 / Pack of 1

Gradient Thermal Cycler LMGT-A101

Capacity: 96×0.2ml
Gradient Temperature Range: 30 to 105℃
Maximum. Heating Rate: 5℃ /s
Heating Lid Temperature Range: 30℃ to 110℃
Maximum. Cooling Rate: 4.5℃ /s

$ 3375 / Pack of 1

Gradient Thermal Cycler LMGT-B201

Capacity: 96×0.2 ml
Temperature Range: 0 to 99.9 °C
Maximum. Heating Rate: 4.5 °C/s
Maximum. Cooling Rate: 4 °C/s
Uniformity: ≤ ± 0.3 °C

$ 3712.5 / Pack of 1

Gradient Thermal Cycler LMGT-B301

Capacity: 96×0.2 ml（6 independent 16 well block）
Temperature Range: 4 to 100 °C
Maximum. Heating Rate: 6 °C/s
Maximum. Cooling Rate: 4 °C/s
Uniformity: ≤ ± 0.3 °C

$ 4225 / Pack of 1

Gradient Thermal Cycler LMGT-A102

Capacity: 96×0.2ml
Gradient Temperature Range: 30 to 105℃
Gradient Set Span: Maximum 42℃
Gradient Temperature Accuracy: ±0.3℃
Gradient Temperature Uniformity: ±0.3℃

$ 4487.5 / Each of 1

Gradient Thermal Cycler LMGT-A100

Capacity: 32 × 0.2 ml (microtubes), 4 × 8 × 0.2 ml (tube strips)
Gradient Temperature Range: 30℃ to105℃
Maximum. Heating Rate: 5℃/s
Heating Lid Temperature Range: 30℃ to110℃
Maximum. Cooling Rate: 4℃/s

$ 3112.5 / Pack of 1

Gradient Thermal Cycler LMGT-C102

Capacity: 96×0.2 ml
Gradient Temperature: 1 to 36°C
Ramp Rate: 4°C/s
Block Temperature Range: 4 to 99.9°C
Temperature Uniformity: ±0.3℃

$ 3106.25 / Each of 1

Gradient Thermal Cycler LMGT-C101

Capacity: 96×0.2 ml
Gradient Temperature: 1 to 36°C
Ramp Rate: 5°C/s
Block Temperature Range: 4 to 99.9°C
Temperature Uniformity: ±0.2℃

$ 3593.75 / Each of 1

Gradient Thermal Cycler LMGT-B101

Capacity: 96×0.2 ml
Temperature Range: 0 to 100 °C
Maximum. Heating Rate: 4.5 °C/s
Maximum. Cooling Rate: 4 °C/s
Uniformity: ≤ ± 0.2 °C

$ 3612.5 / Pack of 1

Gradient Thermal Cycler LMGT-B202

Capacity: 96×0.2 ml+77×0.5 ml
Temperature Range: 0 to 99.9 °C
Maximum. Heating Rate: 4.5 °C/s
Maximum. Cooling Rate: 4 °C/s
Uniformity: ≤ ± 0.3 °C

$ 3712.5 / Pack of 1

Gradient Thermal Cycler LMGT-B103

Capacity: 60×0.5 ml
Temperature Range: 0 to 100 °C
Maximum. Heating Rate: 4.5 °C/s
Maximum. Cooling Rate: 4 °C/s
Uniformity: ≤ ± 0.2 °C

$ 3437.5 / Pack of 1

Gradient Thermal Cycler LMGT-C200

Capacity: 96×0.2ml (0.2ml PCR tubes, 8-tube strips)
Gradient Temperature Range: 30 to 105℃
Gradient Setting Range: 0.1 to 30℃
Gradient Temperature Uniformity: Less than or equal to ±0.2℃
Gradient Temperature Accuracy: Less than or equal to ±0.2℃

$ 3281.25 / Each of 1

Gradient Thermal Cycler LMGT-B203

Capacity: 60×0.5 ml
Temperature Range: 0 to 99.9 °C
Maximum. Heating Rate: 4.5 °C/s
Maximum. Cooling Rate: 4 °C/s
Uniformity: ≤ ± 0.3 °C

$ 3712.5 / Pack of 1

Frequently Asked Questions

1 What is a Gradient Thermal Cycler?

A Gradient Thermal Cycler is a PCR machine designed for simultaneous testing of different annealing temperatures across a temperature gradient.

2 How does Gradient Thermal Cycler work?

It works by creating a temperature gradient across the block, enabling multiple PCR reactions to be run at slightly different temperatures in the same cycle.

3 Can Gradient Thermal Cycler be used for multiplex PCR?

It is ideal for multiplex PCR, as it helps determine a temperature that works efficiently for multiple primer sets in the same reaction.

4 How does Gradient Thermal Cycler improve PCR efficiency in research labs?

It improves PCR efficiency in research labs by reducing trial-and-error cycles and enabling faster optimization of reaction conditions.

5 Is Gradient Thermal Cycler useful in genotyping applications?

It is widely used in genotyping to optimize conditions for amplifying specific alleles or polymorphisms accurately.

6 How does Gradient Thermal Cycler support environmental DNA (eDNA) analysis?

It supports eDNA analysis by enabling rapid optimization of PCR conditions for complex, low-abundance DNA targets in environmental samples.

7 Is Gradient Thermal Cycler beneficial for forensic DNA analysis?

It is highly beneficial for forensic DNA analysis, where precise optimization is required to amplify minute or degraded DNA samples reliably.

8 How does Gradient Thermal Cycler support microbiome or metagenomics studies?

It supports microbiome and metagenomics studies by enabling precise amplification of complex microbial DNA mixtures with optimized conditions.

9 Can Gradient Thermal Cycler be used for pathogen detection in food safety testing?

It is commonly used in food safety testing to optimize PCR conditions for detecting bacterial, viral, or fungal pathogens in food samples.

10 How does Gradient Thermal Cycler support molecular diagnostics in clinical labs?

It supports molecular diagnostics by allowing rapid and accurate PCR optimization for disease-specific genetic markers.
