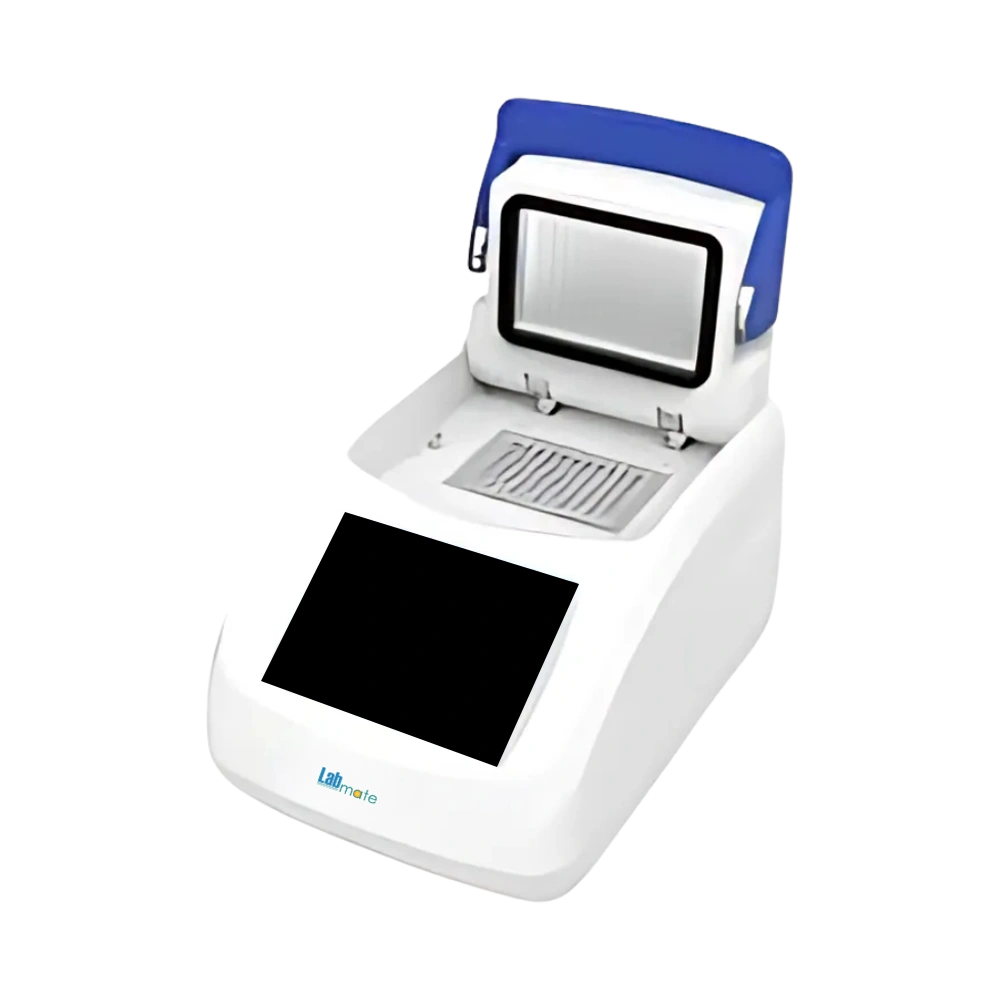

high-performance compact gradient thermal cycler with heated lid

Gradient Thermal Cycler LMGT-A102

Name: Gradient Thermal Cycler LMGT-A102
Brand: Labmate
SKU: LMGT-A102
Rating: 5 (449 reviews)

Gradient Thermal Cycler LMGT-A102 offers capacity of 96×0.2 ml for high-throughput runs. Engineered with advanced temperature control and powerful gradient function, it enables efficient PCR optimization. Built with heating lid that operates up to 110℃ to prevent condensation. Its wide gradient range and fast thermal ramp rates ensure exceptional performance, efficiency, and reliability. Our Thermal Cycler features 8-inch touchscreen display for intuitive programming and real-time monitoring.

Catalog Send Mail Whatsapp

Specifications

Capacity	96×0.2ml
Gradient Temperature Range	30 to 105℃
Gradient Set Span	Maximum 42℃
Gradient Temperature Accuracy	±0.3℃
Gradient Temperature Uniformity	±0.3℃
Block Temperature	0 to 105℃
Block Temperature Accuracy	±0.2℃
Block Temperature Uniformity	±0.25℃
Temperature Control Ways	Block or Tube
Maximum Heating Up Rate	6℃ /s
Maximum Cooling Down Rate	5℃ /s
Adjustable Range of Heating Up/Cooling Down	0.1 to 6 ℃ /s
Heating Lid Temperature Range	30℃ to 110℃
Maximum Cycles	100
Maximum Steps	30
Number of Gradients	12
16℃ Temperature Holding Function	Infinite duration
Timer	1s to 9:99:99 or 0 (infinite duration)
Timer Increasing / Decreasing	-599s to 599s
Temperature Increasing / Decreasing	-9.9℃ to 9.9℃
Temperature Display Accuracy	0.1℃
Display	8-inch Capacitive touchscreen LCD, 1024×764 pixels
Tubes Applied	0.2ml microtubes, 8 × 0.2ml tubes strips, 96 × 0.2ml PCR plate (without/semi-skirted)
Operation System	Linux
Communication Port	USB2.0
Programs Stored	10000
Power Consumption	700W
Power Supply	100 to 240V, 50/60Hz
Dimension (W × D × H)	400×260×228 mm
Net Weight	8.5 kg

Pricing

Product	Price	Unit	Action
Gradient Thermal Cycler LMGT-A102	$ 4487.5	Each of 1

Features

Power failure recovery

Peltier-based technology

Pause function

Touch down and long PCR

Small footprint and compact design

Integrated USB port

Applications

Gradient Thermal Cycler LMGT-A102 is employed in research, clinical, and molecular biology laboratories for optimizing PCR reactions, amplifying specific DNA fragments, and analyzing genetic information.

Gradient Thermal Cycler LMGT-B102

Capacity: 96×0.2 ml+77×0.5 ml
Temperature Range: 0 to 100 °C
Maximum. Heating Rate: 4.5 °C/s
Maximum. Cooling Rate: 4 °C/s
Uniformity: ≤ ± 0.2 °C

$ 3612.5 / Pack of 1

Gradient Thermal Cycler LMGT-B202

Capacity: 96×0.2 ml+77×0.5 ml
Temperature Range: 0 to 99.9 °C
Maximum. Heating Rate: 4.5 °C/s
Maximum. Cooling Rate: 4 °C/s
Uniformity: ≤ ± 0.3 °C

$ 3712.5 / Pack of 1

Gradient Thermal Cycler LMGT-B103

Capacity: 60×0.5 ml
Temperature Range: 0 to 100 °C
Maximum. Heating Rate: 4.5 °C/s
Maximum. Cooling Rate: 4 °C/s
Uniformity: ≤ ± 0.2 °C

$ 3437.5 / Pack of 1

Gradient Thermal Cycler LMGT-C100

Capacity: 96×0.2 ml
Gradient Temperature: 1 to 36°C
Ramp Rate: 5.5°C/s
Block Temperature Range: 4 to 99.9°C
Temperature Uniformity: ±0.2℃

$ 4593.75 / Each of 1

Gradient Thermal Cycler LMGT-B301

Capacity: 96×0.2 ml（6 independent 16 well block）
Temperature Range: 4 to 100 °C
Maximum. Heating Rate: 6 °C/s
Maximum. Cooling Rate: 4 °C/s
Uniformity: ≤ ± 0.3 °C

$ 4225 / Pack of 1

Gradient Thermal Cycler LMGT-A101

Capacity: 96×0.2ml
Gradient Temperature Range: 30 to 105℃
Maximum. Heating Rate: 5℃ /s
Heating Lid Temperature Range: 30℃ to 110℃
Maximum. Cooling Rate: 4.5℃ /s

$ 3375 / Pack of 1

Gradient Thermal Cycler LMGT-C101

Capacity: 96×0.2 ml
Gradient Temperature: 1 to 36°C
Ramp Rate: 5°C/s
Block Temperature Range: 4 to 99.9°C
Temperature Uniformity: ±0.2℃

$ 3593.75 / Each of 1

Gradient Thermal Cycler LMGT-B201

Capacity: 96×0.2 ml
Temperature Range: 0 to 99.9 °C
Maximum. Heating Rate: 4.5 °C/s
Maximum. Cooling Rate: 4 °C/s
Uniformity: ≤ ± 0.3 °C

$ 3712.5 / Pack of 1

Gradient Thermal Cycler LMGT-B104

Capacity: 384 well
Temperature Range: 0 to 100 °C
Maximum. Heating Rate: 4.5 °C/s
Maximum. Cooling Rate: 4 °C/s
Uniformity: ≤ ± 0.2 °C

$ 3787.5 / Pack of 1

Gradient Thermal Cycler LMGT-C102

Capacity: 96×0.2 ml
Gradient Temperature: 1 to 36°C
Ramp Rate: 4°C/s
Block Temperature Range: 4 to 99.9°C
Temperature Uniformity: ±0.3℃

$ 3106.25 / Each of 1

Gradient Thermal Cycler LMGT-B203

Capacity: 60×0.5 ml
Temperature Range: 0 to 99.9 °C
Maximum. Heating Rate: 4.5 °C/s
Maximum. Cooling Rate: 4 °C/s
Uniformity: ≤ ± 0.3 °C

$ 3712.5 / Pack of 1

Gradient Thermal Cycler LMGT-C200

Capacity: 96×0.2ml (0.2ml PCR tubes, 8-tube strips)
Gradient Temperature Range: 30 to 105℃
Gradient Setting Range: 0.1 to 30℃
Gradient Temperature Uniformity: Less than or equal to ±0.2℃
Gradient Temperature Accuracy: Less than or equal to ±0.2℃

$ 3281.25 / Each of 1

Gradient Thermal Cycler LMGT-A100

Capacity: 32 × 0.2 ml (microtubes), 4 × 8 × 0.2 ml (tube strips)
Gradient Temperature Range: 30℃ to105℃
Maximum. Heating Rate: 5℃/s
Heating Lid Temperature Range: 30℃ to110℃
Maximum. Cooling Rate: 4℃/s

$ 3112.5 / Pack of 1

Gradient Thermal Cycler LMGT-B101

Capacity: 96×0.2 ml
Temperature Range: 0 to 100 °C
Maximum. Heating Rate: 4.5 °C/s
Maximum. Cooling Rate: 4 °C/s
Uniformity: ≤ ± 0.2 °C

$ 3612.5 / Pack of 1

Frequently Asked Questions

1 What is a Gradient Thermal Cycler?

A Gradient Thermal Cycler is a PCR machine designed for simultaneous testing of different annealing temperatures across a temperature gradient.

2 How does Gradient Thermal Cycler work?

It works by creating a temperature gradient across the block, enabling multiple PCR reactions to be run at slightly different temperatures in the same cycle.

3 Can Gradient Thermal Cycler be used for multiplex PCR?

It is ideal for multiplex PCR, as it helps determine a temperature that works efficiently for multiple primer sets in the same reaction.

4 How does Gradient Thermal Cycler improve PCR efficiency in research labs?

It improves PCR efficiency in research labs by reducing trial-and-error cycles and enabling faster optimization of reaction conditions.

5 Is Gradient Thermal Cycler useful in genotyping applications?

It is widely used in genotyping to optimize conditions for amplifying specific alleles or polymorphisms accurately.

6 How does Gradient Thermal Cycler support environmental DNA (eDNA) analysis?

It supports eDNA analysis by enabling rapid optimization of PCR conditions for complex, low-abundance DNA targets in environmental samples.

7 Is Gradient Thermal Cycler beneficial for forensic DNA analysis?

It is highly beneficial for forensic DNA analysis, where precise optimization is required to amplify minute or degraded DNA samples reliably.

8 How does Gradient Thermal Cycler support microbiome or metagenomics studies?

It supports microbiome and metagenomics studies by enabling precise amplification of complex microbial DNA mixtures with optimized conditions.

9 Can Gradient Thermal Cycler be used for pathogen detection in food safety testing?

It is commonly used in food safety testing to optimize PCR conditions for detecting bacterial, viral, or fungal pathogens in food samples.

10 How does Gradient Thermal Cycler support molecular diagnostics in clinical labs?

It supports molecular diagnostics by allowing rapid and accurate PCR optimization for disease-specific genetic markers.
