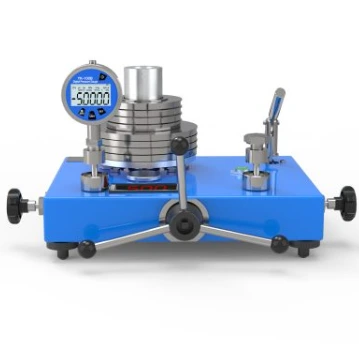

Dead Weight Tester LMDWT-D101 is professional-grade weight tester tailored for precision calibration. Built around finely-machined piston and cylinder set made of tungsten carbide. Delivers unmatched wear resistance and repeatable pressure outputs. Comes with built-in displacement monitoring which enhances efficiency. Our Dead Weight Tester LMDWT-D101 is ideal for environments that demand rigorous calibration monitoring and traceable accuracy.
Specifications
| Pressure Range | 1 to 60 MPa |
| Lower Limit | 0.04 MPa |
| Nominal Piston Area | 0.2 cm² |
| Thread Size | M20 × 1.5 |
| Generated Pressure | 0.04 MPa; 0.1 MPa |
| Accuracy | 0.02% |
| Output Signal | 4–20 mA (AL) |
| Material | Stainless Steel |
| Piston Material | Tungsten Carbide |
| Medium | Isooctyl Sebacate |
| Piston Stroke | ±1.5 mm with Displacement Sensor |
| Operating Temperature | 20 ± 5°C |
| Gross Dimensions | 625 × 500 × 390 mm |
| Net Weight | 33 kg |
| Gross Weight | 35 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Dead Weight Tester LMDWT-D101 | $ 11250 | Each of 1 |
Features
Engineered for longevity
High-resolution pressure control
Sensor-enabled piston displacement
Reliable in fluctuating test setups
Applications
Dead Weight Tester LMDWT-D101 is primarily used in industrial pressure instrumentation labs, government metrology setups, and aerospace sectors. It ensures compliance with national calibration standards and delivers reliable outputs for validating digital gauges, transmitters, and pressure sensors.
