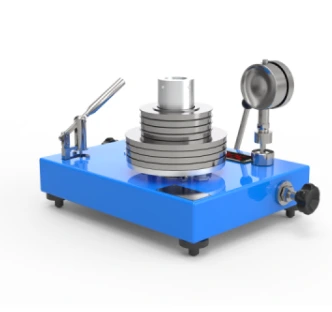

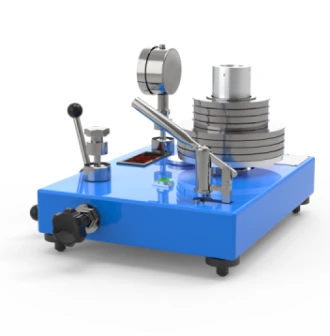

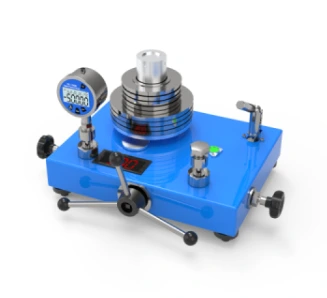

Dead Weight Tester LMDWT-C100 is compact tester delivering stable vacuum pressure for exact calibration. Built for long-term reliability under controlled or dynamic load scenarios. Engineered with high-performance piston ensuring negligible deformation and drift. Equipped with lightweight design supporting ease of use in varied technical locations. Our Dead Weight Tester LMDWT-C100 is a perfect tool for industries demanding certified pressure traceability.
Specifications
| Pressure Range | 0.5 to 25 MPa |
| Lower Limit | 0.04 MPa |
| Nominal Piston Area | 0.2 cm² |
| Thread Size | M20 × 1.5 |
| Generated Pressure | 0.04 MPa; 0.1 MPa |
| Accuracy | 0.05% |
| Output Signal | 4–20 mA (AL) |
| Material | Stainless Steel |
| Piston Material | Tungsten Carbide |
| Medium | Isooctyl Sebacate |
| Piston Stroke | ±1.5 mm with Displacement Sensor |
| Operating Temperature | 20 ± 5°C |
| Gross Dimensions | 625 × 500 × 390 mm |
| Net Weight | 27 kg |
| Gross Weight | 35 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Dead Weight Tester LMDWT-C100 | $ 3362.5 | Each of 1 |
Features
Constructed with hard tungsten carbide
Excellent temperature tolerance
Integrated sensor tracks piston movement
Efficient pressure generation system
Applications
Dead Weight Tester LMDWT-C100 functions as a precision vacuum calibration system, often used in calibration laboratories, aerospace industries, and mechanical testing setups. Its core role lies in serving as a primary reference standard to verify the accuracy of low-pressure devices such as transmitters, controllers, and gauges. The tester is ideal for facilities that demand dependable results, user-friendly interfaces, and adherence to national calibration protocols.
