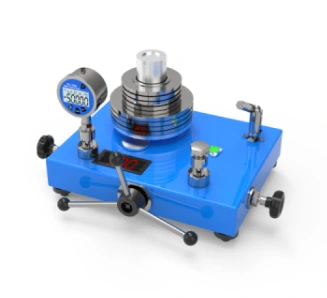

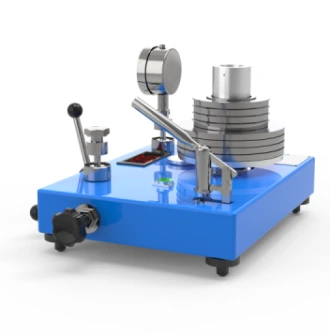

Dead Weight Tester LMDWT-A100 provides reliable reference for pressure calibration. Engineered using tungsten carbide for excellent stability and wear resistance. Designed with low center of gravity for stable pressure generation. Offers wide pressure range, low basic error, and high sensitivity. Our Dead Weight Tester LMDWT-A100 is ideal for calibrating gauges, sensors, and precision pressure instruments.
Specifications
| Pressure Range | 0.04 to 0.6 MPa |
| Lower Limit | 0.04 MPa |
| Nominal Piston Area | 1 cm² |
| Thread Size | M20 × 1.5 |
| Generated Pressure | 0.04 MPa; 0.1 MPa |
| Accuracy | 0.05% |
| Output Signal | 4–20 mA (AL) |
| Material | Stainless Steel |
| Piston Material | Tungsten Carbide |
| Medium | Isooctyl Sebacate |
| Piston Stroke | ±1.5 mm with Displacement Sensor |
| Operating Temperature | 20 ± 5°C |
| Gross Dimensions | 625 × 500 × 390 mm |
| Net Weight | 35 Kg |
| Gross Weight | 42 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Dead Weight Tester LMDWT-A100 | $ 3306.25 | Each of 1 |
Features
Piston and cylinder made of durable tungsten carbide material.
Smooth piston movement with high accuracy.
High sensitivity in high-pressure ranges.
Built-in displacement sensor.
Compact design.
Applications
Dead Weight Tester LMDWT-A100 is a precision instrument used to calibrate and verify digital pressure gauges, transmitters, and sensors. With its robust tungsten carbide piston and stainless-steel weights, it serves as a reliable pressure reference standard in metrology labs, manufacturing plants, and industrial calibration facilities. Its high sensitivity, compact design, and cost-effective performance make it ideal for quality assurance tasks and regulatory compliance in pressure measurement systems.
