Get Quote
Contact us now to receive a detailed quotation.

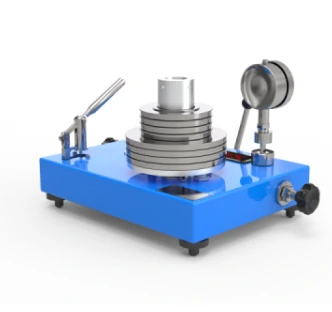

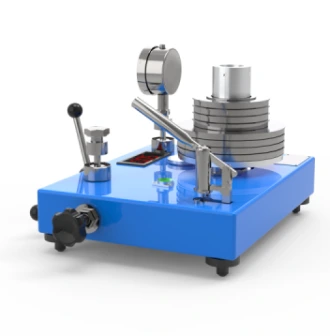

Dead Weight Tester LMDWT-B102 is crafted for precise reference calibration in technical environments. Built with superior material choice enhancing its durability and thermal stability. Ideal for accurate output in low-pressure metrology applications. Combines smooth piston action with a robust support system. Our Dead Weight Tester LMDWT-B102 is engineered for operators needing fine-tuned control and repeatability.
Specifications
| Pressure Range | 0.1 to 6 MPa |
| Lower Limit | 0.04 MPa |
| Nominal Piston Area | 0.5 cm² |
| Thread Size | M20 × 1.5 |
| Generated Pressure | 0.04 MPa; 0.1 MPa |
| Accuracy | 0.01% |
| Output Signal | 4–20 mA (AL) |
| Material | Stainless Steel |
| Piston Material | Tungsten Carbide |
| Medium | Isooctyl Sebacate |
| Piston Stroke | ±1.5 mm with Displacement Sensor |
| Operating Temperature | 20 ± 5°C |
| Gross Dimensions | 625 × 500 × 390 mm |
| Net Weight | 33 kg |
| Gross Weight | 35 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Dead Weight Tester LMDWT-B102 | $ 6630 | Each of 1 |
Features
Built from tungsten carbide to reduce wear
Offers minimal pressure variation
Advanced piston monitoring
Stainless steel weights
Compact, stable frame design
Applications
Dead Weight Tester LMDWT-B102 is used as a reference-grade instrument supports the calibration of pressure gauges, control sensors, and transmitters. It is highly valued in power plants, refineries, instrument workshops, and national metrology labs. The unit offers fast response, repeatable results, and is compatible with precision instrumentation requirements. It's particularly useful for institutions requiring traceable and standard-compliant pressure verification tools.
