Get Quote
Contact us now to receive a detailed quotation.

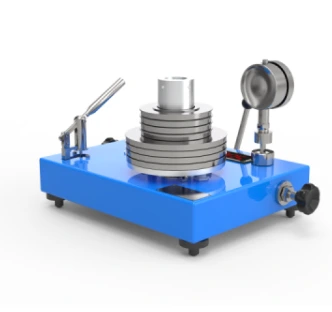

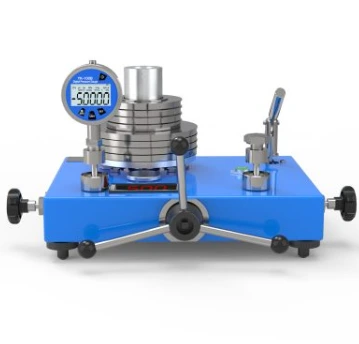

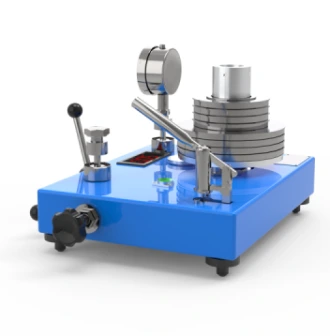

Dead Weight Tester LMDWT-C102 is device designed for delivering stable vacuum pressure in various environments. Engineered for durability maintaining high performance even under fluctuating load conditions. Incorporates high-precision piston-cylinder system crafted from premium materials. Built as lightweight frame facilitates easy installation and portability across laboratories and industrial setups. Our Dead Weight Tester LMDWT-C102 is excellent solution for professionals seeking dependable pressure calibration standards.
Specifications
| Pressure Range | 0.5 to 25 MPa |
| Lower Limit | 0.04 MPa |
| Nominal Piston Area | 0.2 cm² |
| Thread Size | M20 × 1.5 |
| Generated Pressure | 0.04 MPa; 0.1 MPa |
| Accuracy | 0.01% |
| Output Signal | 4–20 mA (AL) |
| Material | Stainless Steel |
| Piston Material | Tungsten Carbide |
| Medium | Isooctyl Sebacate |
| Piston Stroke | ±1.5 mm with Displacement Sensor |
| Operating Temperature | 20 ± 5°C |
| Gross Dimensions | 625 × 500 × 390 mm |
| Net Weight | 27 kg |
| Gross Weight | 35 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Dead Weight Tester LMDWT-C102 | $ 6875 | Each of 1 |
Features
Constructed with high-durability material
Accurate in all conditions
Integrated sensor monitor
Sophisticated pressure control
Applications
Dead Weight Tester LMDWTC-102 is a high-precision calibration tool used in aerospace testing, industrial pressure calibration, and metrology labs. It delivers traceable measurement standards, making it suitable for rigorous quality control environments, national labs, and pressure verification systems that demand precision and compliance.
