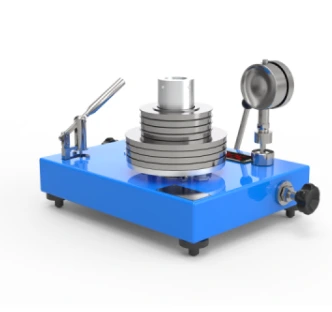

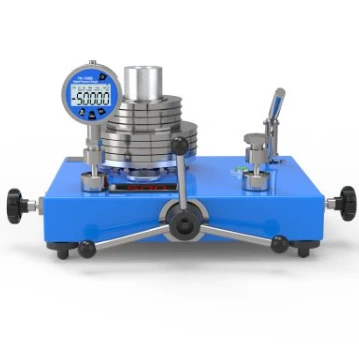

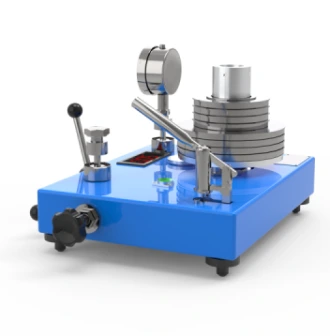

Dead Weight Tester LMDWT-A101 offers stable pressure calibration results. Built with wear-resistant tungsten carbide for enhanced measurement stability. Engineered with Low-center gravity ensuring accurate, consistent and smooth pressure output. Covers broad pressure range with minimum error and maximum sensitivity. Our Dead Weight Tester LMDWT-A101 is best used for calibrating sensors, gauges, and precise pressure devices.
Specifications
| Pressure Range | 0.04 to 0.6 MPa |
| Lower Limit | 0.04 MPa |
| Nominal Piston Area | 1 cm² |
| Thread Size | M20 × 1.5 |
| Generated Pressure | 0.04 MPa; 0.1 MPa |
| Accuracy | 0.02% |
| Output Signal | 4–20 mA (AL) |
| Material | Stainless Steel |
| Piston Material | Tungsten Carbide |
| Medium | Isooctyl Sebacate |
| Piston Stroke | ±1.5 mm with Displacement Sensor |
| Operating Temperature | 20 ± 5°C |
| Gross Dimensions | 625 × 500 × 390 mm |
| Net Weight | 35 Kg |
| Gross Weight | 42 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Dead Weight Tester LMDWT-A101 | $ 3825 | Each of 1 |
Features
Durable and Temperature Stable
Ensures low pressure fluctuation
Enhanced high-pressure sensitivity.
Accurately monitors piston motion
Compact Footprint
Applications
Dead Weight Tester LMDWT-A101 is designed as a high-accuracy calibration tool, ideal for validating and fine-tuning pressure measuring instruments in labs and industrial units. It reliably serves as a pressure reference for verifying transmitters, sensors, and gauges. Owing to its wear-resistant piston, clear display, and fast responsiveness, this tester is widely used in pressure-related quality control and compliance verification.
