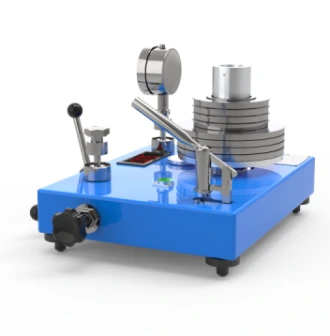

Dead Weight Tester LMDWT-B100 is built for laboratories and field operations ensuring reliability. Constructed using Tungsten carbide piston, enabling low wear and long lifespan. Engineered with an ergonomic design, it offers high stability even under dynamic loads. Provides excellent pressure traceability across low-range measurements. Our Dead Weight Tester LMDWT-B100 is built for professionals needing precise, consistent pressure values.
Specifications
| Pressure Range | 0.1 to 6 MPa |
| Lower Limit | 0.04 MPa |
| Nominal Piston Area | 0.5 cm² |
| Thread Size | M20 × 1.5 |
| Generated Pressure | 0.04 MPa; 0.1 MPa |
| Accuracy | 0.05% |
| Output Signal | 4–20 mA (AL) |
| Material | Stainless Steel |
| Piston Material | Tungsten Carbide |
| Medium | Isooctyl Sebacate |
| Piston Stroke | ±1.5 mm with Displacement Sensor |
| Operating Temperature | 20 ± 5°C |
| Gross Dimensions | 625 × 500 × 390 mm |
| Net Weight | 33 kg |
| Gross Weight | 35 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Dead Weight Tester LMDWT-B100 | $ 3306.25 | Each of 1 |
Features
Highly stable pressure source
Designed with minimal temperature drift
Lightweight setup.
Compatible with multiple calibration setups
Applications
Dead Weight Tester LMDWT-B100 is a precision-grade vacuum dead weight tester, frequently used in laboratories, manufacturing calibration rooms, and process verification departments. It functions as a primary standard for calibrating low-pressure sensors, transmitters, and precision gauges. Its rugged build and high repeatability make it suitable for long-term industrial usage and critical pressure monitoring applications. It supports both manual calibration and automated test bench integration with ease.
