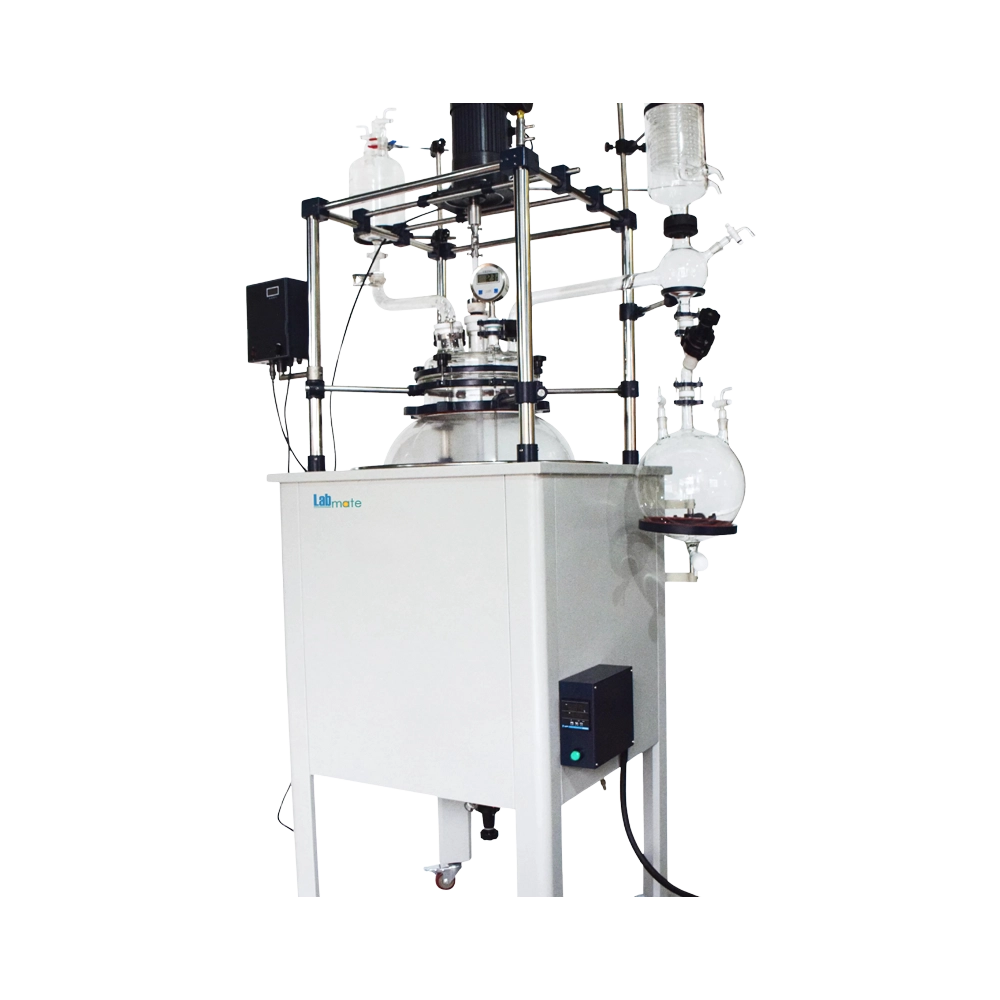

Single Layer Glass Reactor LMSLR-B110

Name: Single Layer Glass Reactor LMSLR-B110
Brand: Labmate
SKU: LMSLR-B110
Rating: 4.8 (429 reviews)

Single Layer Glass Reactor LMSLR-B110 is designed with 200-liter capacity. It features an all-copper brushless motor that delivers powerful torque and silent operation. Equipped with solid charging port, it offers direct addition of materials without interrupting internal processes. Incorporates drain valve for post-process liquid removal, preventing spillage and ensuring clean system maintenance. Our Reactor is ideal for distillation, crystallization, and chemical synthesis.

Catalog Send Mail Whatsapp

Specifications

Capacity	200 L
Temperature Range	-80 to 250°C
Temperature Measurement Accuracy	±1°C
Vacuum Degree	0.098 MPa
Receiving Bottle Volume	10 L
Dropping Funnel Volume	5 L
Rotation Speed Range	0 to 280 rpm
Stirring Motor Power	750W1/5
Heating Power	21kW
Power Supply	220V/50Hz (Stirrer), 330V/50Hz (Heating bath)
Dimensions (W×D×H)	880×800×1850 mm
Weight	178 Kg

Features

Stable vacuum seal

Mobile caster base

Stepless speed regulation

Uniform heat distribution

Real-time temperature monitoring

Applications

Single Layer Glass Reactor LMSLR-B110 is commonly employed for vacuum evaporation, crystallization, chemical synthesis, solvent recovery, pharmaceutical formulation, concentration, and distillation processes.

Single Layer Glass Reactor LMSLR-B109

Capacity: 100 L
Temperature Range: -80 to 250°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa
Dropping Funnel Volume: 5 L

Single Layer Glass Reactor LMSLR-B102

Capacity: 3 L
Temperature Range: -80 to 250°C
Bath Temperature Range: RT to 180°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa

Single Layer Glass Reactor LMSLR-A101

Capacity: 1 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 0.25 L
Receiving Flask Volume: 0.25 L

Single Layer Glass Reactor LMSLR-B106

Capacity: 30 L
Temperature Range: -80 to 250°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa
Dropping Funnel Volume: 2 L

Single Layer Glass Reactor LMSLR-A100

Capacity: 0.5 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 0.25 L
Receiving Flask Volume: 0.25 L

Single Layer Glass Reactor LMSLR-B100

Capacity: 1 L
Temperature Range: -80 to 250°C
Bath Temperature Range: RT to 180°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa

Single Layer Glass Reactor LMSLR-A108

Capacity: 50 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 1 L
Receiving Flask Volume: 0.5 L

Single Layer Glass Reactor LMSLR-A110

Capacity: 200 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 2 L
Receiving Flask Volume: 0.5 L

Single Layer Glass Reactor LMSLR-B107

Capacity: 50 L
Temperature Range: -80 to 250°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa
Dropping Funnel Volume: 2 L

Single Layer Glass Reactor LMSLR-B103

Capacity: 5 L
Temperature Range: -80 to 250°C
Bath Temperature Range: RT to 180°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa

Single Layer Glass Reactor LMSLR-A103

Capacity: 3 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 0.25 L
Receiving Flask Volume: 0.25 L

Single Layer Glass Reactor LMSLR-A106

Capacity: 20 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 1 L
Receiving Flask Volume: 0.5 L

Single Layer Glass Reactor LMSLR-B108

Capacity: 100 L
Temperature Range: -80 to 250°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa
Dropping Funnel Volume: 2 L

Single Layer Glass Reactor LMSLR-B101

Capacity: 2 L
Temperature Range: -80 to 250°C
Bath Temperature Range: RT to 180°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa

Single Layer Glass Reactor LMSLR-A109

Capacity: 100 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 2 L
Receiving Flask Volume: 0.5 L

Frequently Asked Questions

1 What is a Single Layer Glass Reactor?

A Single Layer Glass Reactor is an apparatus designed for chemical reactions with a single-layer wall for clear visibility and chemical resistance.

2 How is temperature controlled in Single Layer Glass Reactor?

Temperature control is typically achieved through external jackets or immersion in temperature-controlled baths, ensuring precise reaction conditions.

3 Can Single Layer Glass Reactor be used for pharmaceutical synthesis?

It is widely used in pharmaceutical synthesis for precise control and monitoring of chemical reactions.

4 Is Single Layer Glass Reactor suitable for polymerization processes?

It is ideal for polymerization due to its chemical resistance and ability to maintain controlled reaction environments.

5 Can Single Layer Glass Reactor be used for crystallization applications?

It is commonly employed in crystallization to observe crystal formation clearly and maintain proper reaction conditions.

6 Is Single Layer Glass Reactor used in research and development labs?

It is a standard tool in R&D labs for experimental reactions and process optimization.

7 Is Single Layer Glass Reactor used for food and flavor industry applications?

It is used in the food and flavor industry for controlled reaction processes and product development.

8 Can Single Layer Glass Reactor be used for catalyst testing?

It is commonly used for catalyst testing due to its transparent design, allowing observation of catalytic reactions.

9 Can Single Layer Glass Reactor be used in environmental testing applications?

It is often used in environmental labs for testing reactions related to pollution control and remediation.

10 Is Single Layer Glass Reactor used for quality control testing in manufacturing?

It is used in quality control to simulate and monitor chemical processes for consistency.
