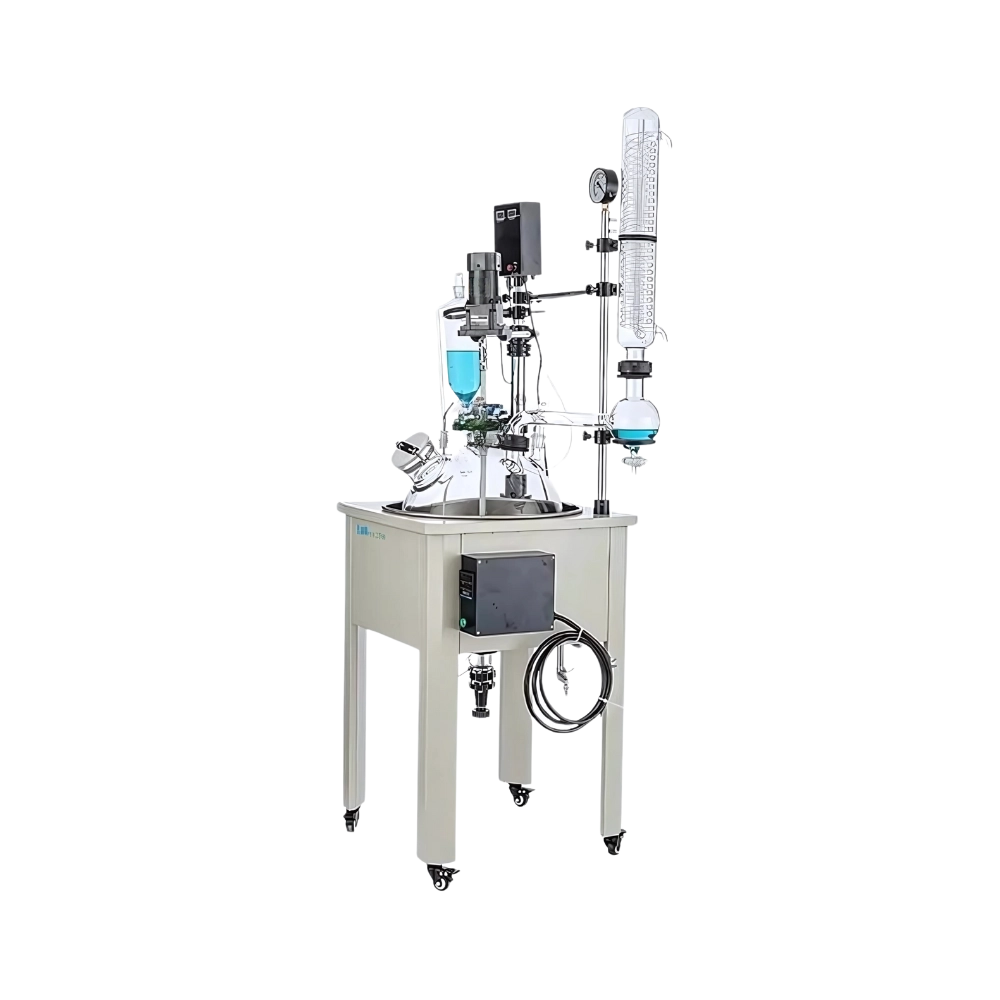

Single Layer Glass Reactor LMSLR-B107

Name: Single Layer Glass Reactor LMSLR-B107
Brand: Labmate
SKU: LMSLR-B107
Rating: 4.9 (443 reviews)

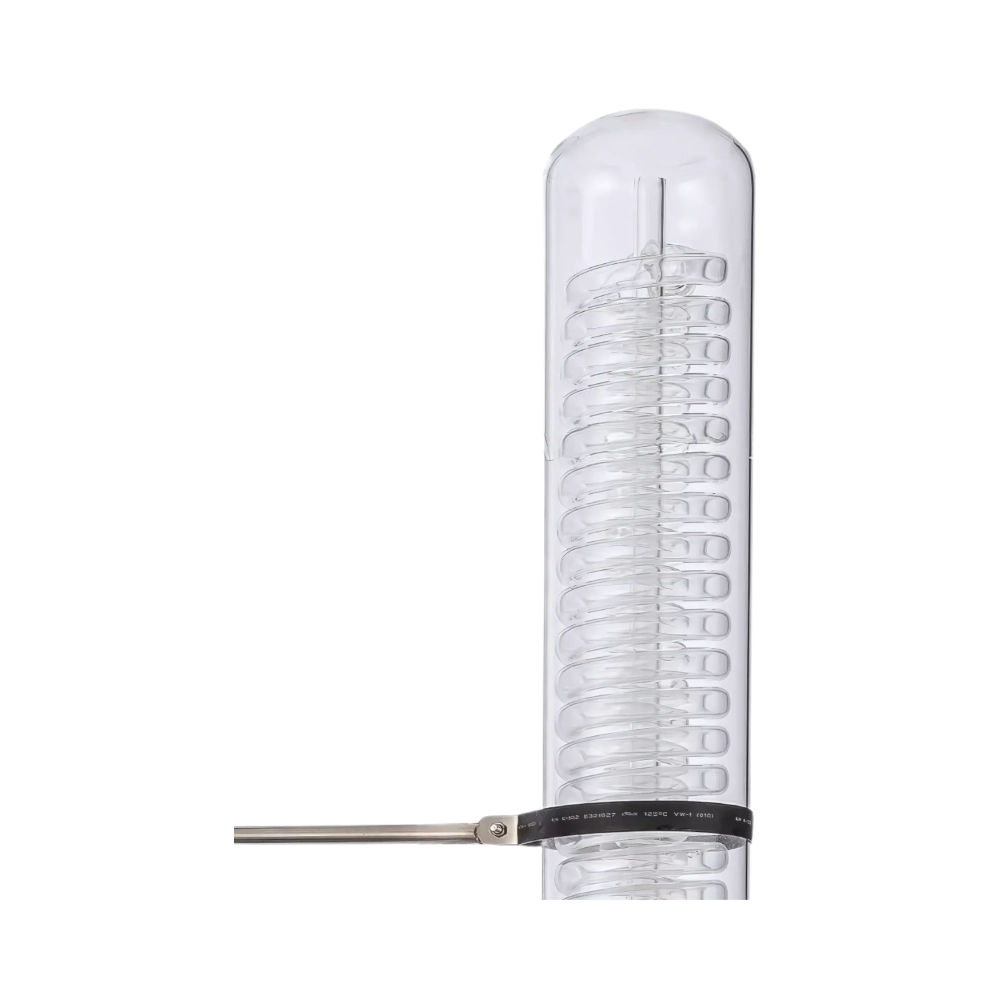

Single Layer Glass Reactor LMSLR-B107 is designed to offer 50-liter capacity. It includes condenser and reflux elbow for efficient vapor condensation. Equipped with stepless speed control, it enables reliable mixing adjustments for various material consistencies and reaction conditions. Incorporates vacuum gauge that delivers internal pressure monitoring for controlled vacuum-dependent procedures. Our Reactor is ideal for chemical synthesis and solvent recovery processes.

Catalog Send Mail Whatsapp

Specifications

Capacity	50 L
Temperature Range	-80 to 250°C
Temperature Measurement Accuracy	±1°C
Vacuum Degree	0.098 MPa
Dropping Funnel Volume	2 L
Rotation Speed Range	0 to 450 rpm
Stirring Motor Power	120W1/3
Heating Power	8kW
Glass Vessel Diameter	470 mm
Dimensions (W×D×H)	910×640×2130 mm
Weight	58 Kg

Pricing

Product	Price	Unit	Action
Single Layer Glass Reactor LMSLR-B107	$ 3712.5	Each of 1

Features

High-torque motor

Durable stainless bath

Uniform heat distribution

Real-time temperature interface

Mobile caster base

Dual-seal protection

Applications

Single Layer Glass Reactor LMSLR-B107 enables chemical synthesis, material distillation, reaction monitoring, solvent recovery, pharmaceutical formulation, vacuum-assisted evaporation, crystallization, concentration processes, and temperature-controlled reactions.

Single Layer Glass Reactor LMSLR-B106

Capacity: 30 L
Temperature Range: -80 to 250°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa
Dropping Funnel Volume: 2 L

$ 3637.5 / Each of 1

Single Layer Glass Reactor LMSLR-A104

Capacity: 5 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 0.5 L
Receiving Flask Volume: 0.25 L

$ 4300 / Each of 1

Single Layer Glass Reactor LMSLR-A101

Capacity: 1 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 0.25 L
Receiving Flask Volume: 0.25 L

$ 3900 / Each of 1

Single Layer Glass Reactor LMSLR-B101

Capacity: 2 L
Temperature Range: -80 to 250°C
Bath Temperature Range: RT to 180°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa

$ 2412.5 / Each of 1

Single Layer Glass Reactor LMSLR-A110

Capacity: 200 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 2 L
Receiving Flask Volume: 0.5 L

$ 17425 / Each of 1

Single Layer Glass Reactor LMSLR-A107

Capacity: 30 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 1 L
Receiving Flask Volume: 0.5 L

$ 6462.5 / Each of 1

Single Layer Glass Reactor LMSLR-B109

Capacity: 100 L
Temperature Range: -80 to 250°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa
Dropping Funnel Volume: 5 L

$ 3825 / Each of 1

Single Layer Glass Reactor LMSLR-A100

Capacity: 0.5 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 0.25 L
Receiving Flask Volume: 0.25 L

$ 3800 / Each of 1

Single Layer Glass Reactor LMSLR-B108

Capacity: 100 L
Temperature Range: -80 to 250°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa
Dropping Funnel Volume: 2 L

$ 4631.25 / Each of 1

Single Layer Glass Reactor LMSLR-B110

Capacity: 200 L
Temperature Range: -80 to 250°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa
Receiving Bottle Volume: 10 L

$ 7037.5 / Each of 1

Single Layer Glass Reactor LMSLR-B104

Capacity: 10 L
Temperature Range: -80 to 250°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa
Dropping Funnel Volume: 1 L

$ 2975 / Each of 1

Single Layer Glass Reactor LMSLR-A106

Capacity: 20 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 1 L
Receiving Flask Volume: 0.5 L

$ 6087.5 / Each of 1

Single Layer Glass Reactor LMSLR-B100

Capacity: 1 L
Temperature Range: -80 to 250°C
Bath Temperature Range: RT to 180°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa

$ 2325 / Each of 1

Single Layer Glass Reactor LMSLR-A103

Capacity: 3 L
Temperature Range: -80 to 200°C
Pressure: -0.098 MPa
Dropping Funnel Volume: 0.25 L
Receiving Flask Volume: 0.25 L

$ 4000 / Each of 1

Single Layer Glass Reactor LMSLR-B105

Capacity: 20 L
Temperature Range: -80 to 250°C
Temperature Measurement Accuracy: ±1°C
Vacuum Degree: 0.098 MPa
Dropping Funnel Volume: 1 L

$ 3337.5 / Each of 1

Frequently Asked Questions

1 What is a Single Layer Glass Reactor?

A Single Layer Glass Reactor is an apparatus designed for chemical reactions with a single-layer wall for clear visibility and chemical resistance.

2 How is temperature controlled in Single Layer Glass Reactor?

Temperature control is typically achieved through external jackets or immersion in temperature-controlled baths, ensuring precise reaction conditions.

3 Can Single Layer Glass Reactor be used for pharmaceutical synthesis?

It is widely used in pharmaceutical synthesis for precise control and monitoring of chemical reactions.

4 Is Single Layer Glass Reactor suitable for polymerization processes?

It is ideal for polymerization due to its chemical resistance and ability to maintain controlled reaction environments.

5 Can Single Layer Glass Reactor be used for crystallization applications?

It is commonly employed in crystallization to observe crystal formation clearly and maintain proper reaction conditions.

6 Is Single Layer Glass Reactor used in research and development labs?

It is a standard tool in R&D labs for experimental reactions and process optimization.

7 Is Single Layer Glass Reactor used for food and flavor industry applications?

It is used in the food and flavor industry for controlled reaction processes and product development.

8 Can Single Layer Glass Reactor be used for catalyst testing?

It is commonly used for catalyst testing due to its transparent design, allowing observation of catalytic reactions.

9 Can Single Layer Glass Reactor be used in environmental testing applications?

It is often used in environmental labs for testing reactions related to pollution control and remediation.

10 Is Single Layer Glass Reactor used for quality control testing in manufacturing?

It is used in quality control to simulate and monitor chemical processes for consistency.
