Horizontal Electrophoresis System LMHES-C100 is designed to hold 4 gel trays. It features seal-free construct with integrated electrode holders to eliminate leakage and simplify maintenance. Equipped with built-in movable electrode stand that enables easy replacement without seal rings. Incorporates yellow directional markers to guide sample loading orientation and electrophoresis direction. Our Electrophoresis System ensures high-throughput DNA, RNA, and protein separation.
Specifications
| Number Of Trays | 4 |
| Buffer Volume | 1000 mL |
| 0.75 mm Comb | 7+7 teeth / 14 teeth, 9+9 teeth / 19 teeth |
| 1.0 mm Comb | 12+12 teeth / 27 teeth |
| 1.5 mm Comb | 7+7 teeth / 14 teeth, 9+9 teeth / 19 teeth |
| 2.0 mm Comb | 3+2 teeth / 3+3 teeth |
| Gel Size (W × L) | 130 × 130 mm, 130 × 65 mm, 65 × 130 mm, 65 × 65 mm |
| Overall Dimension (L×W×H) | 300 × 170 × 80 mm |
| Net Weight | 2 Kg |
Features
Transparent gel tank
Red/black plug leads
Clear polarity marking
Interchangeable tray slots
Stable current flow
Standard Accessories
Model No. | Accessory name |
LMHES-C100-E1 | Electrode Stand |
LMHES-C100-C1 | Combs |
LMHES-C100-G1 | Gel Trays |
LMHES-C100-G2 | Gel Caster |
LMHES-C100-H1 | Up Housing |
LMHES-C100-H2 | Out Housing |
LMHES-C100-P1 | Power Cord |
Optional Accessories
Model No. | Accessory Name |

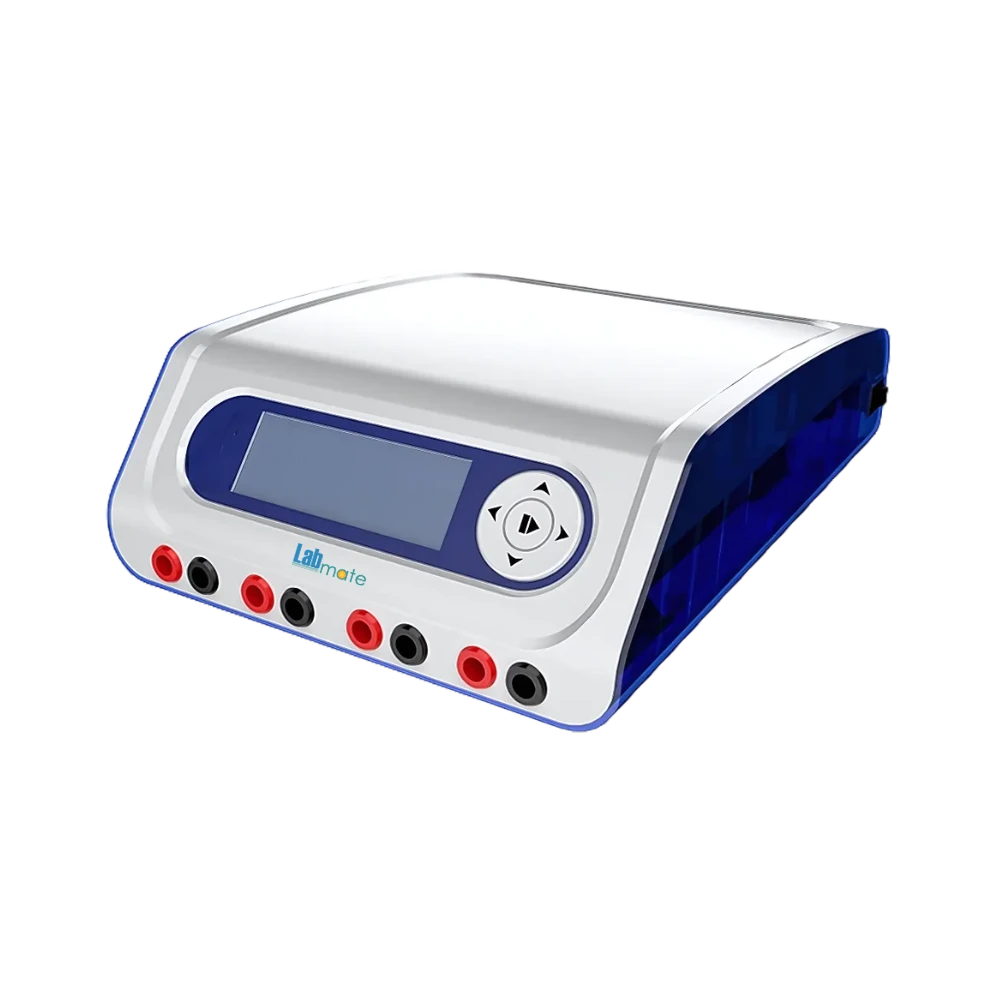

LMHES-C100-P2 | Electrophoresis Power Supply |
Applications
Horizontal Electrophoresis System LMHES-C100 is applied for high-throughput DNA, RNA, and protein separation in molecular biology, genetics, clinical, and research laboratories.
Output- 300V, 400mA, 75W
