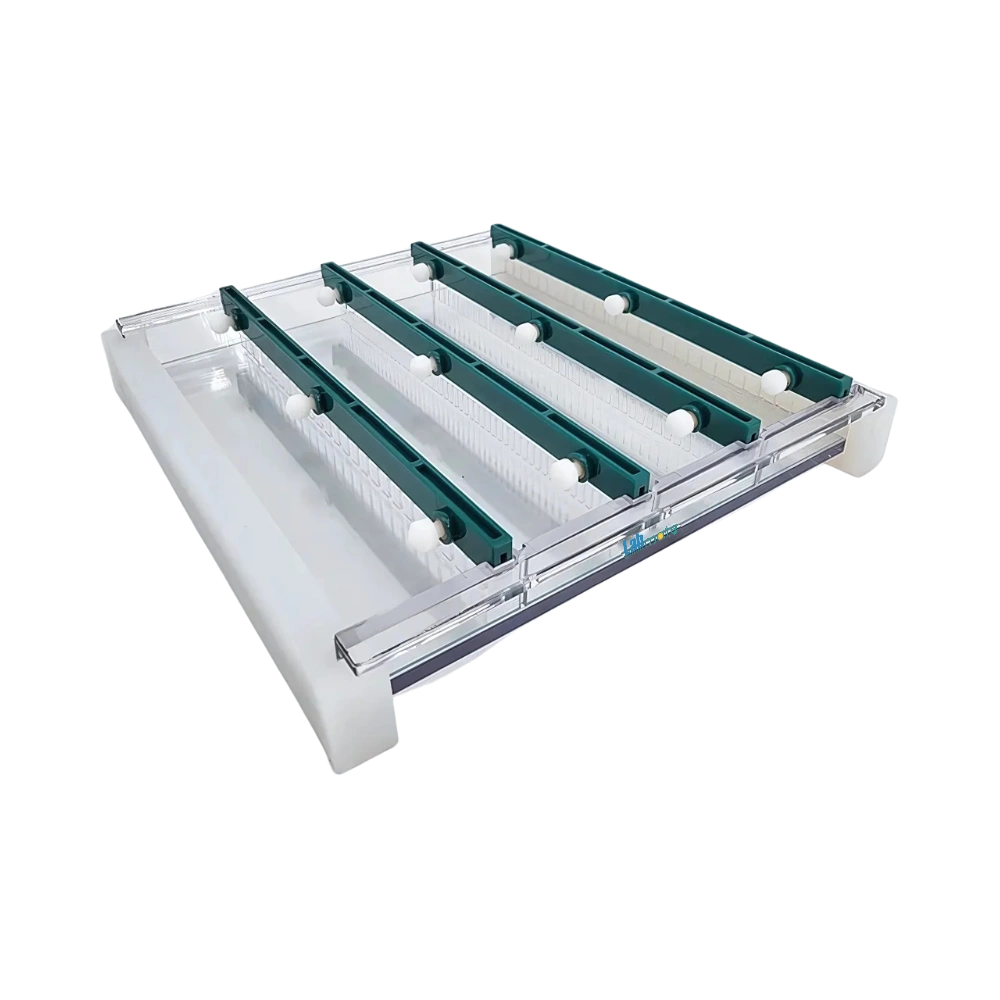

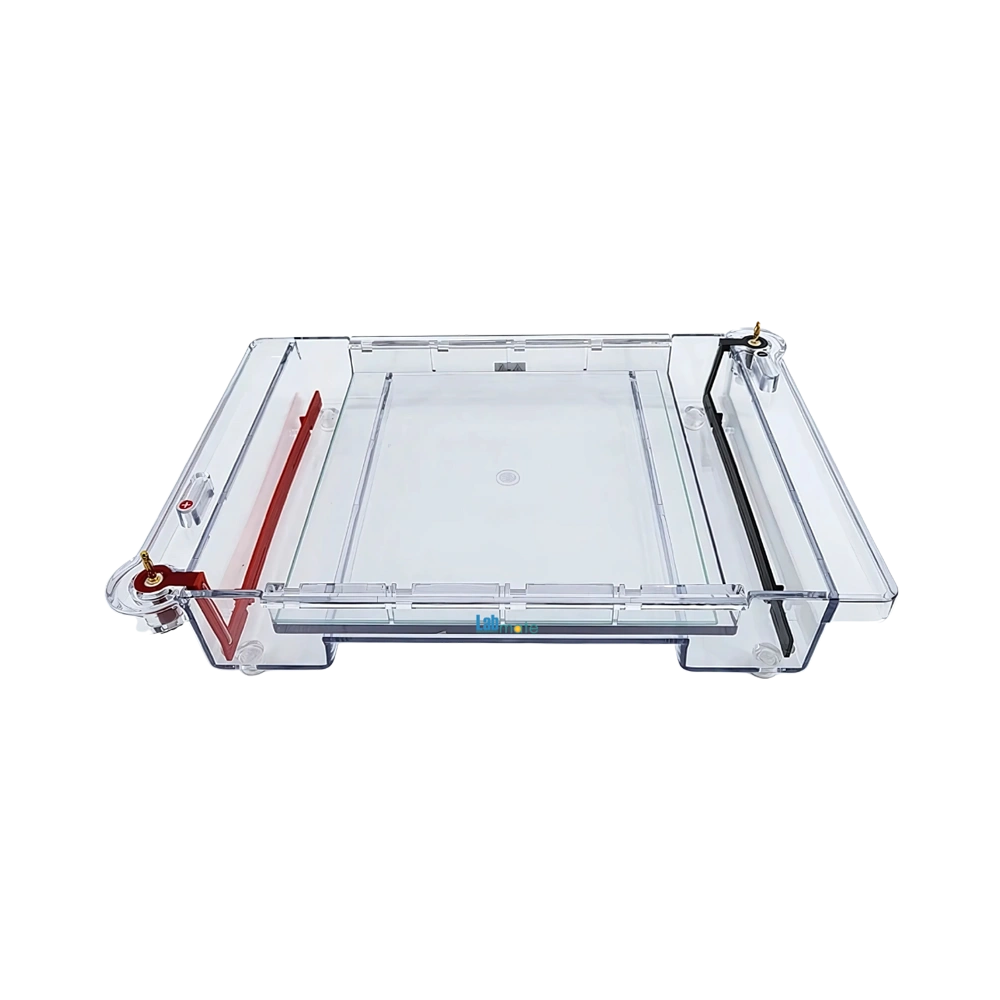

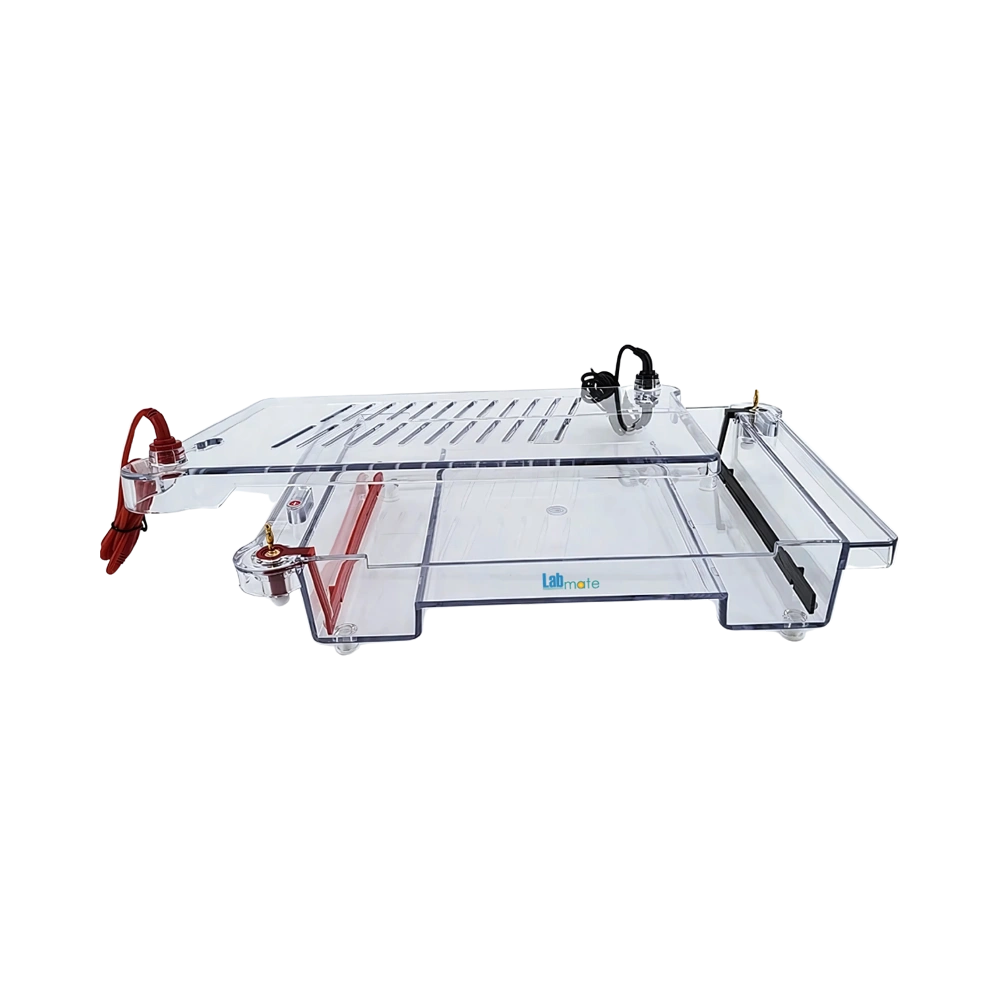

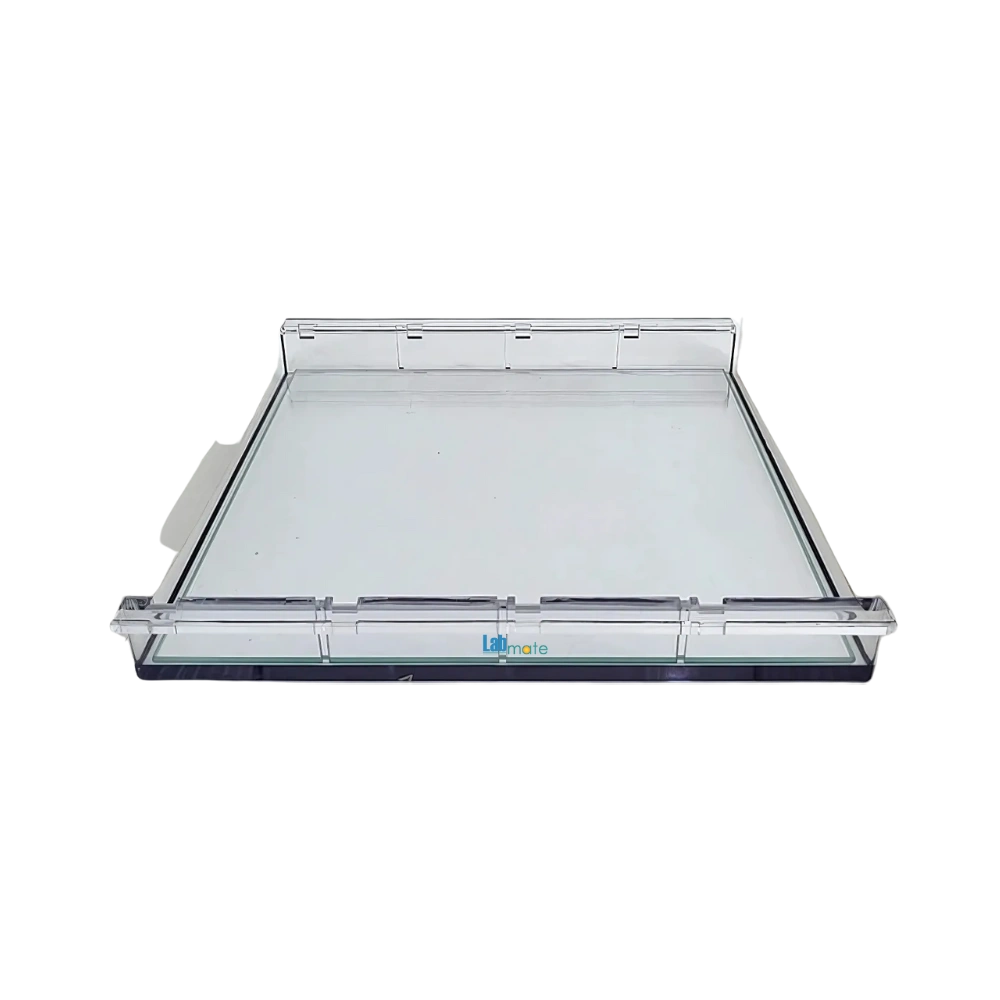

Nucleic Acid Horizontal Electrophoresis System LMES-A104 is a highly efficient horizontal electrophoresis unit, comes with 1600 ml buffer volume range that holds 26 to 204 samples and ideal for loading samples with 8 channel pipette. Features high-temperature resistance, and automatic switch off once the lid is opened. Designed with high-quality polycarbonate, detachable electrodes, transparent top lid, patented gel-blocking plate construction, and unique gel-casting tool that can cast gel of various sizes.
Get Quote| Type | Horizontal |
| Number of Samples | 26 to 204 |
| Buffer Volume | 1600 ml |
| Comb | 51 wells, 42 wells, and 26 wells |
| Comb Thickness | 1.0 mm and 2.0 mm |
| Gel Size (L × W) | 250 × 250 mm, 120 × 250 mm, and 60 × 250 mm |
| Dimension (L × W × H) | 420 × 300 × 90 mm |
| Weight | 2.5 kg |
Safe, simple, reliable, and easy-to-use
Highly efficient
Holds up to 4 to 208 samples
Elegant and long-lasting high-quality polycarbonate
Ideal for loading samples with an 8 and 12 channel pipette
800 ml of buffer volume range
Detachable electrodes, simple maintenance, and cleaning
High-temperature resistance, difficult to distort
Unique gel casting tool
Single gel casting apparatus can quickly cast gel of various sizes
Top lid transparency makes observation simple
Automatically turn off when the lid is opened
Patented gel-blocking plate construction makes gel casting simple and practical
Black band and fluorescent mark ensure simple loading and gel observation
Nucleic Acid Horizontal Electrophoresis Systems are used to identify, separate, prepare DNA, and measure its molecular weight across research centers, forensics, healthcare diagnostics, universities, molecular biology, biotechnology, laboratories etc.
| Model | LMEPS-01 | LMEPS-02 | LMEPS-04 | LMEPS-05 | |
| Volt | 6 - 600 V | 6 - 600 V | 5 - 600 V | 10 - 3000 V | |
| Current | 4 - 400 mA | 4 - 600 mA | 2 - 200 mA | 3 - 300 mA | |
| Power | 240 W | 1 - 300 W | 120 W | 5 - 200 W | |
| Dimensions(L x W x H) | 315 × 290 × 128 mm | 246 ×360 × 80 mm | 315 ×290 × 128 mm | 303× 364 × 137 mm | |
| Weight | 5 Kg | 3.2 Kg | 5 Kg | 7.5 Kg |
Get Quote for
Nucleic Acid Horizontal Electrophoresis System LMES-A104
