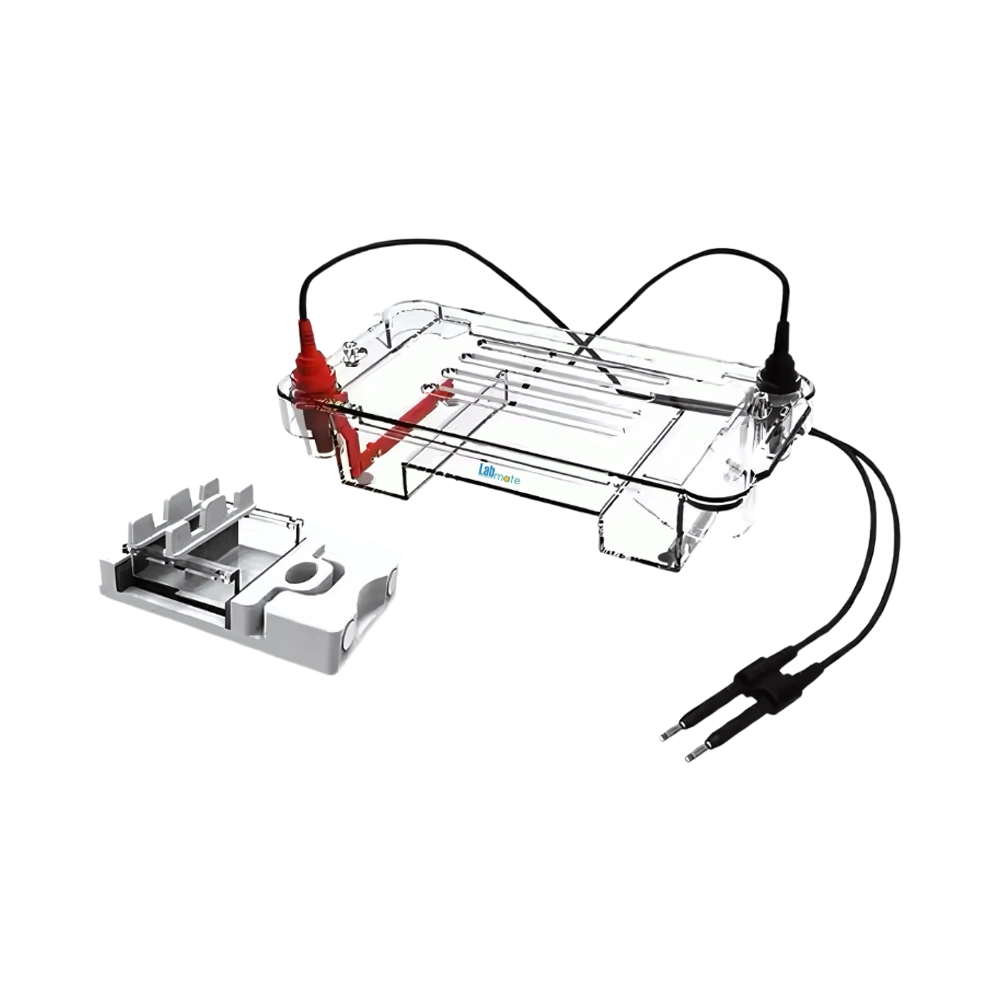

Horizontal Electrophoresis System LMHES-A100 supports 4 comb types, with 1.0 mm, 1.5 mm and 2.0 mm thickness. It features 650 mL buffer volume, ensuring efficient workflow with minimal refilling. It allows casting of four different agarose gel specifications, offering flexibility. Its tray includes black belt and fluorescent ruler for reliable sample loading and observation. Our Horizontal Electrophoresis System is ideal for DNA/RNA separation, agarose gels, and nucleic acid analysis.
Specifications
| Gel Plate Configuration | 60×60mm, 120×60mm, 60×120mm, 120×120mm |
| Buffer volume | 650ml |
| Types Of Combs | 4 |
| 11+25 teeth Comb Thickness | 1.0mm |
| 6+13 teeth Comb Thickness | 1.5mm |
| 8+18 teeth Comb Thickness | 1.5mm |
| 2+3 teeth Comb Thickness | 2.0 mm |
| Dimension | 310 × 150 × 120 mm |
| Weight | 2kg |
Features
Polycarbonate molded
Platinum wire electrode
Ventilated cover
Auto power cut-off
Buffer-saving bridge
Cover position limiter
Applications
Horizontal Electrophoresis System LMHES-A100 is ideal for DNA/RNA separation, agarose gel electrophoresis, nucleic acid analysis across molecular biology, biotechnology, pharmaceutical and research laboratories.
