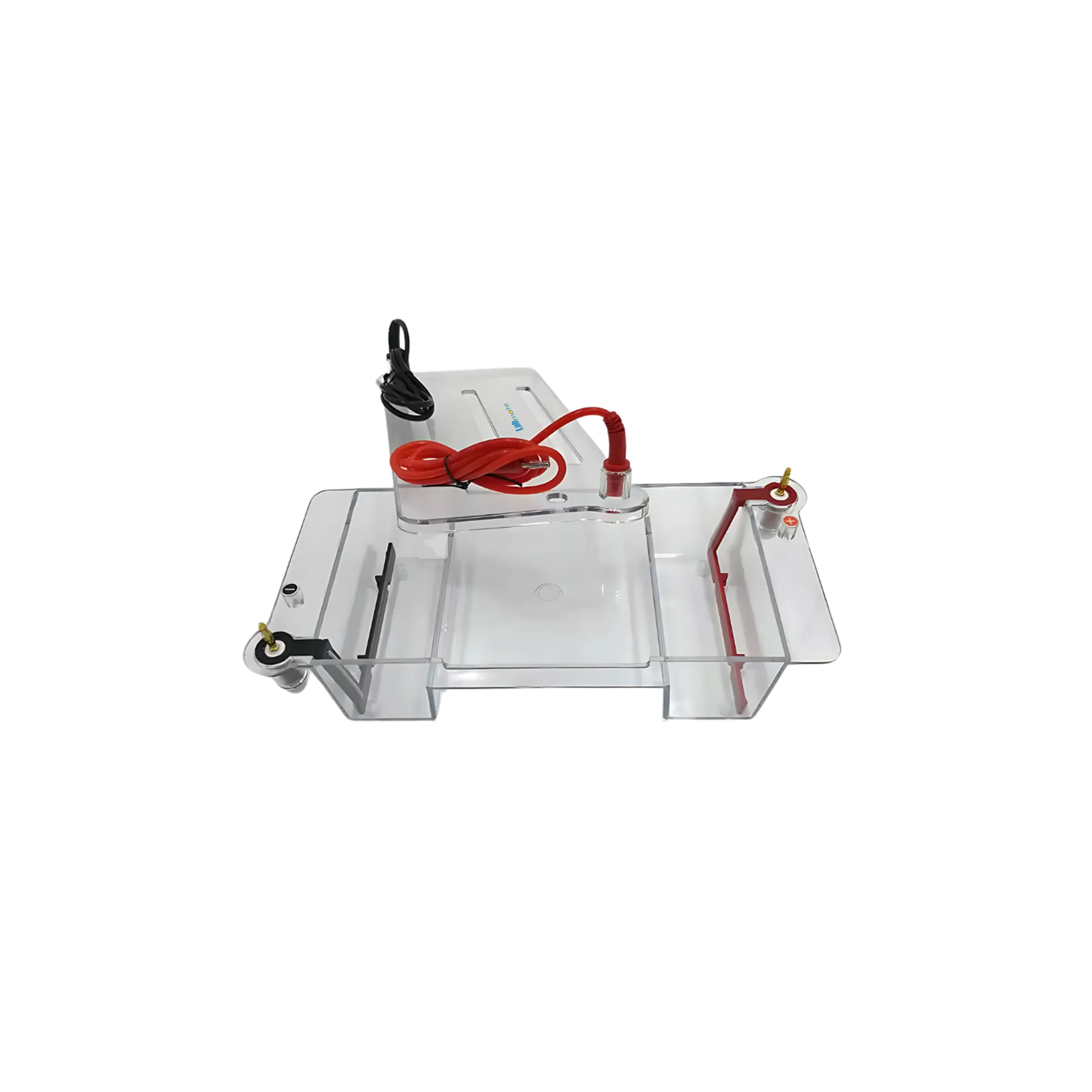

Nucleic Acid Horizontal Electrophoresis System LMES-A102 is a high resolution horizontal unit with a gel trays dimension of 60 × 60 mm, 60 ×120 mm, 120 × 60 mm and 120 × 120 mm. Different well sizes allow for complete control of sample loading and combs up to 2 to 100 sample throughput with 1.0, 1.5 and 2.0 mm thickness. A buffer volume of 120 ml provides a cooling effect and maintains a stable pH during the process. The transparent safety lid prevents electricity from dripping and sample from volatilizing in the cell.
Specifications

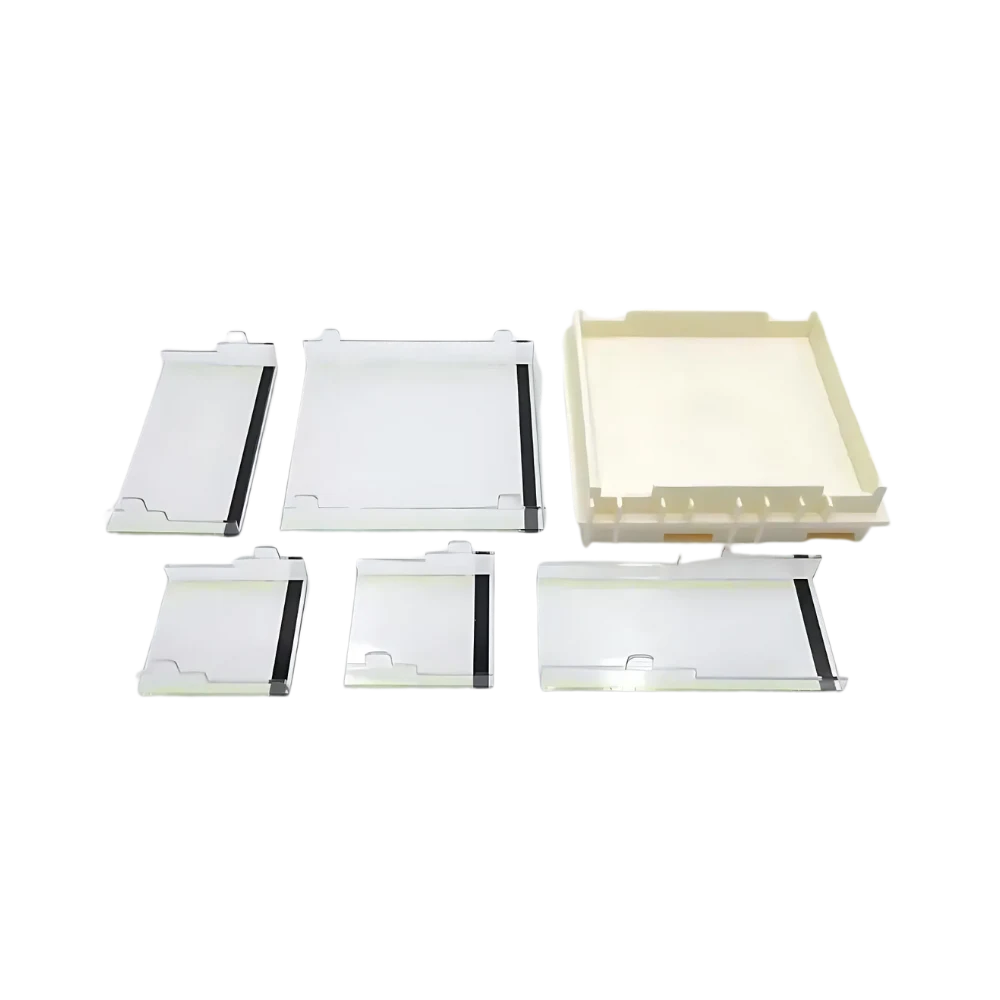

| Gel Trays (L × W ) | 60 × 60 mm, 60 × 120 mm,120 × 60 mm, 120 × 120 mm |

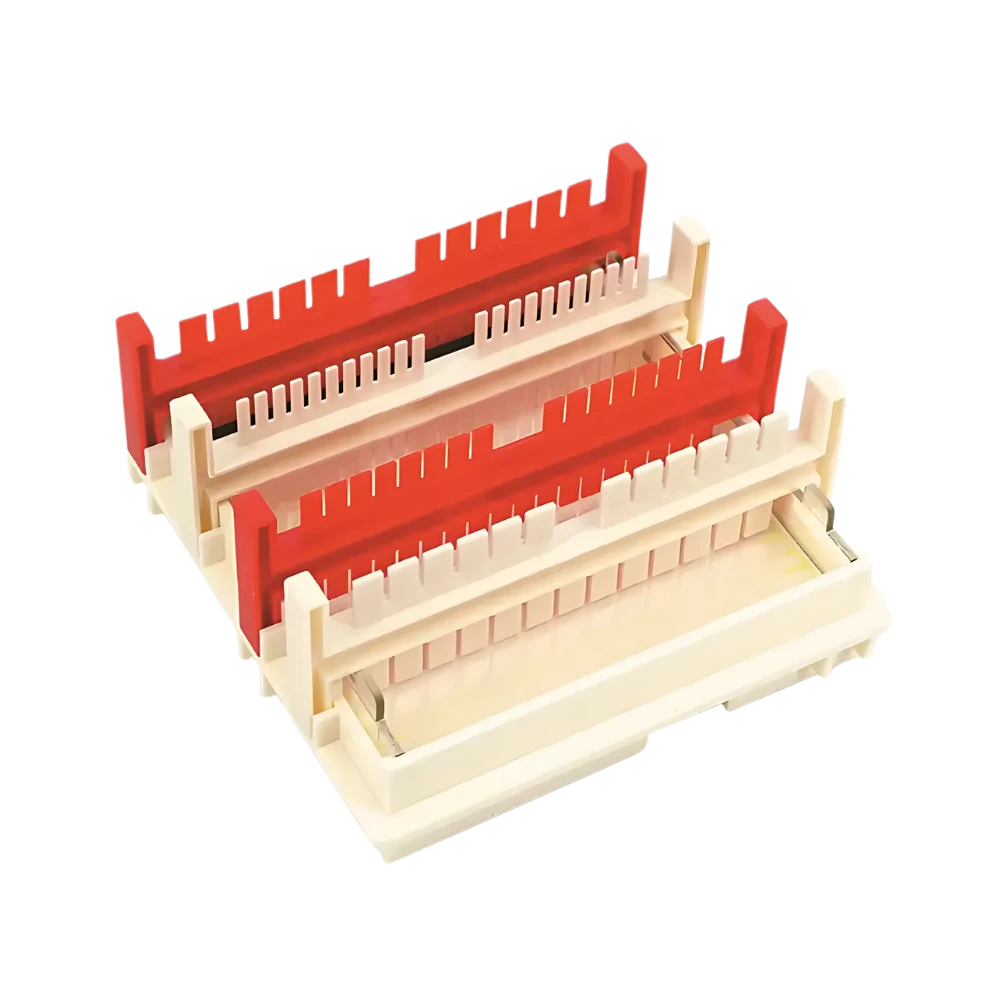

| Comb | 2 + 3 wells, 6 + 3 wells, 8 + 18 wells, and 11+25 wells |
| Comb Thickness | 1.0 mm, 1.5 mm and 2.0 mm |
| No of Samples | 2 to 100 |
| Buffer Volume | 650 ml |
| Dimensions (L × W × H) | 310 × 150 × 120 mm |
| Gross Weight | 1.0 kg |
Features
Easy to use, Simple, safe, and reliable
Made of high quality polycarbonate, exquisite and durable
Transparent top lid, easy for observation
Auto-switch-off when the lid is opened
Removable electrodes, easy to maintain and clean
Can run two pieces of gel at the same time
With fluorescent band on the gel tray makes it convenient to add the samples and observe the gel
Special comb design, one comb has two different teeth
Removable electrodes, easy to maintain and clean
Applications
Nucleic Acid Horizontal Electrophoresis System is a basic means in molecular biology and is widely used for DNA detection and separation, molecular testing in the nucleic acid analysis, purification and preparation experiment etc.

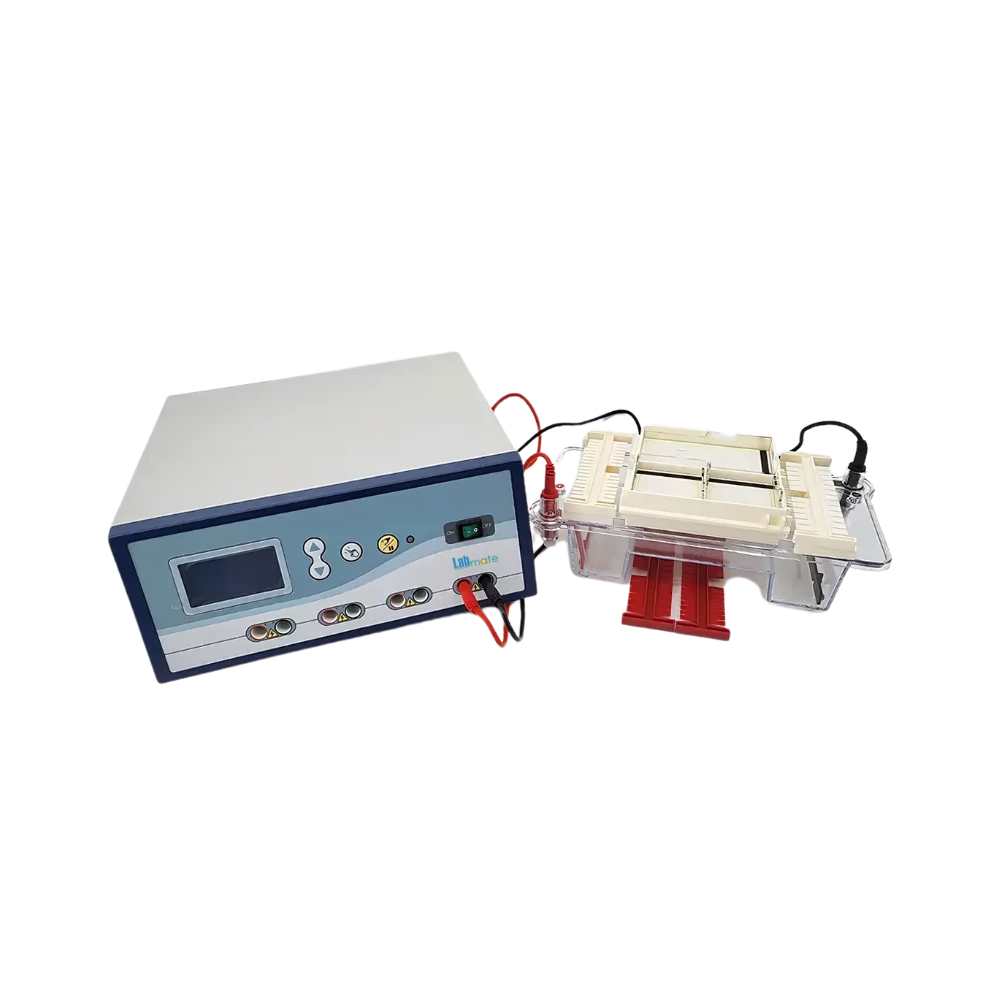

Power Supply Selection
| Model | LMEPS-01 | LMEPS-02 | LMEPS-04 | LMEPS-05 | |
| Volt | 6 - 600 V | 6 - 600 V | 5 - 600 V | 10 - 3000 V | |
| Current | 4 - 400 mA | 4 -600 mA | 2 -200 mA | 3 - 300 mA | |
| Power | 240 W | 1 - 300 W | 120 W | 5 - 200 W | |
| Dimensions(L x W x H) | 315 × 290 × 128 | 246 × 360 × 80 | 315 × 290 × 128 | 303 × 364 × 137 | |
| Weight | 5 Kg | 3.2 Kg | 5 Kg | 7.5 Kg |
