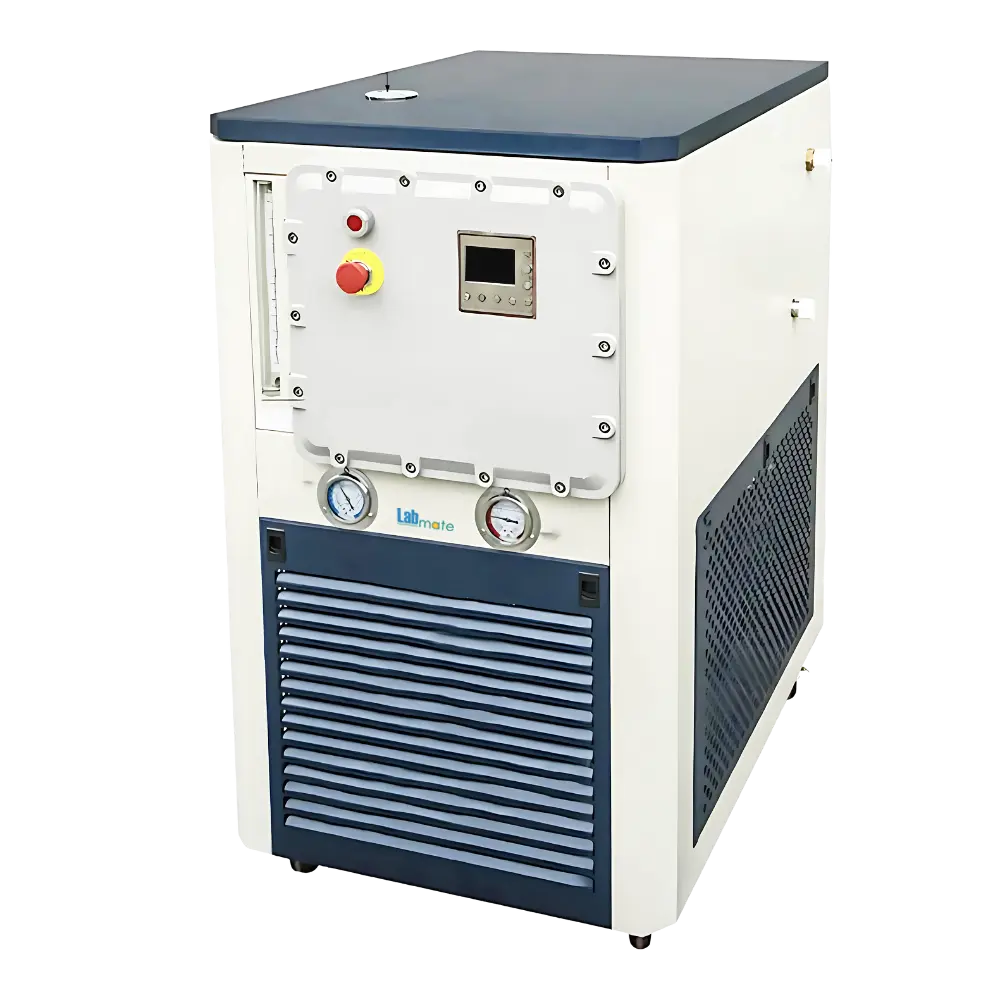

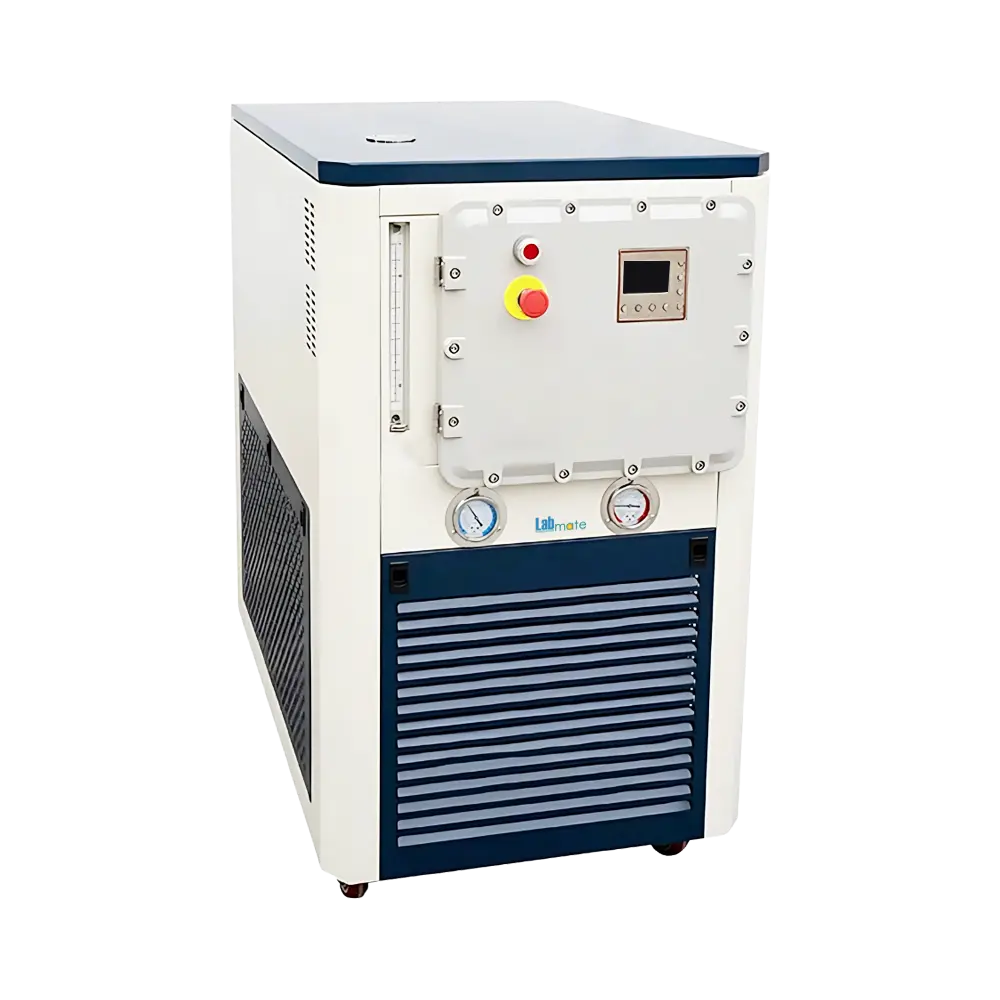

Explosion-Proof Thermal Circulator LMETR-A112 offers flow rate of 30 L/min. It features fully closed circulation system that extends heat transfer fluid life and reduces contamination. Equipped with front-mounted low- and high-pressure gauges for effortless pressure tracking. Incorporates ventilation window to promote effective airflow and internal cooling for extended durability. Our Circulator ensures stable thermal conditions for reactors and pilot production.
Specifications
| Working Temperature Range | -80 to 200℃ |
| Volume | 50 L |
| Flow Rate | 30 L/min |
| Pressure | Less than or equal to 0.4 MPa |
| Pump Lift Range | 15 m |
| Temperature Sensor | PT100 |
| Refrigerant | R404 |
| Ambient Temperature Range | 5 to 35℃ |
| Relative Humidity | Less than or equal to 70% |
| Temperature Control Accuracy | ±0.1℃ |
| External Input | External sensor port |
| Heating Power | 6000W |
| Compressor Power | 7360W |
| Cooling Power | 32536W |
| Circulating Pump Power | 280W |
| Power Consumption | 14000W |
| Power Supply | 380V/50Hz |
| Dimensions (W×D×H) | 830×1356×1137 mm |
| Weight | 327 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion-Proof Thermal Circulator LMETR-A112 | $ 12225 | Each of 1 |
Features
External sensor
Real-time level display
Multi-layer protection
Smart control panel
Mobility casters
Low noise operation
Applications
Explosion-Proof Thermal Circulator LMETR-A112 ensures stable thermal conditions for reactors, fermentation tanks, and pilot production lines in biotech, pharmaceutical, and food sectors.
