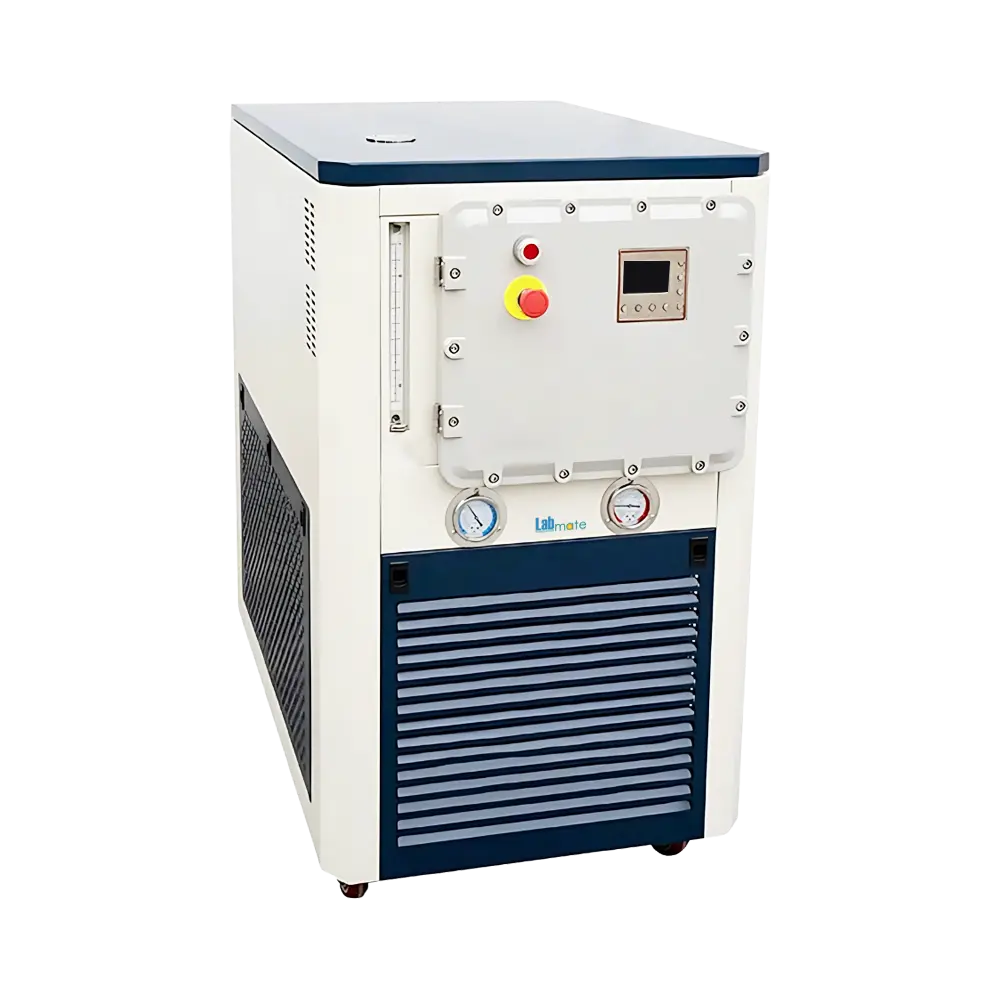

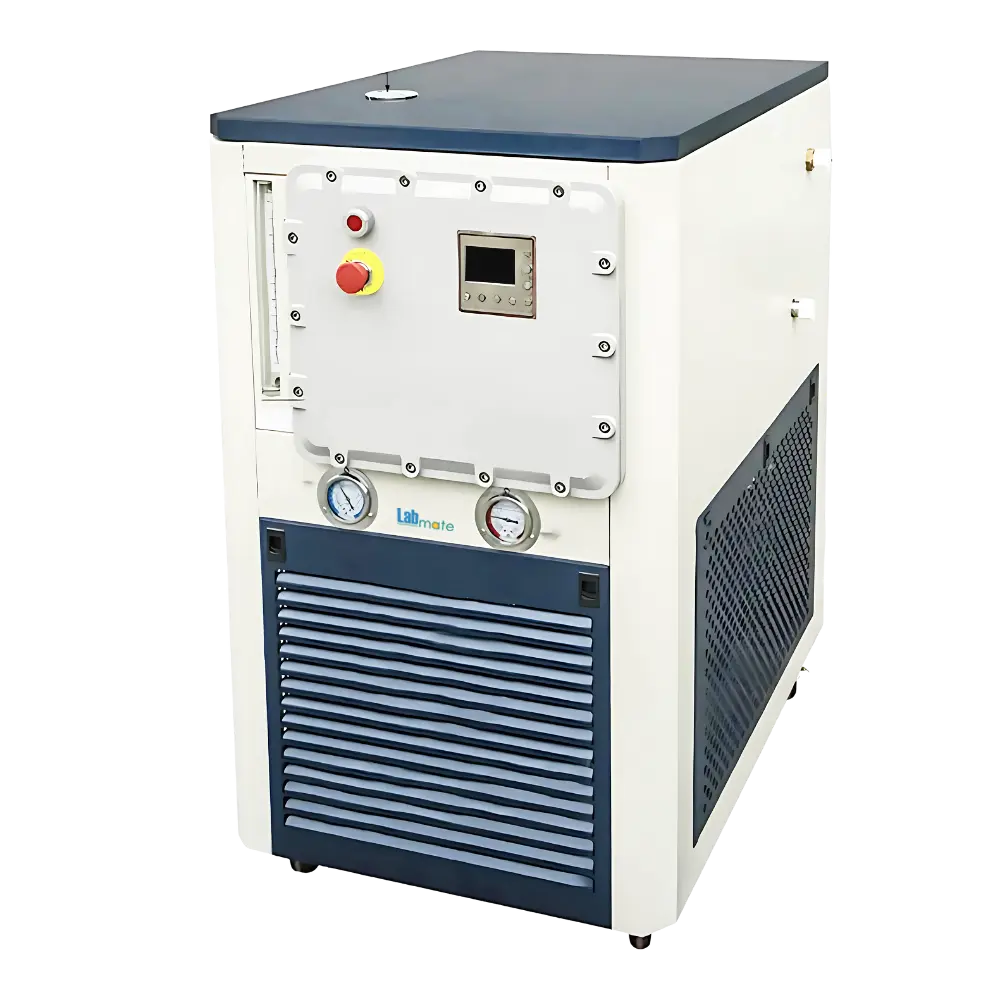

Explosion-Proof Thermal Circulator LMETR-A108 comes with fluid flow rate of 20 to 40 L/min. It features front-mounted low- and high-pressure gauges for easy system pressure tracking. Equipped with fully closed circulation to extend heat transfer liquid life and reduce contamination. Integrates bath fluid filling port, outlet, and inlet to support efficient operation and effortless maintenance. Our Circulator is ideal for consistent external thermal control.
Specifications
| Working Temperature Range | -40 to 200℃ |
| Volume | 30 L |
| Flow Rate | 20 to 40 L/min |
| Pressure | Less than or equal to 0.4 MPa |
| Pump Lift Range | 10 to 12 m |
| Temperature Sensor | PT100 |
| Refrigerant | R404 |
| Ambient Temperature Range | 5 to 35℃ |
| Relative Humidity | Less than or equal to 70% |
| Temperature Control Accuracy | ±0.1℃ |
| External Input | External sensor port |
| Heating Power | 4500W |
| Compressor Power | 2205W |
| Cooling Power | 6972W |
| Circulating Pump Power | 100W |
| Power Consumption | 6900W |
| Power Supply | 380V/50Hz |
| Dimensions (W×D×H) | 630×670×990 mm |
| Weight | 120 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion-Proof Thermal Circulator LMETR-A108 | $ 6887.5 | Each of 1 |
Features
External sensor
Compact heat exchanger
Real-time level display
Multi-layer protection
Smart control panel
Smooth rolling casters
Applications
Explosion-Proof Thermal Circulator LMETR-A108 is employed for external cooling, heating, and thermal stability in semiconductor systems, bioprocessing lines, pilot production units, reactors, and fermentation tanks.
