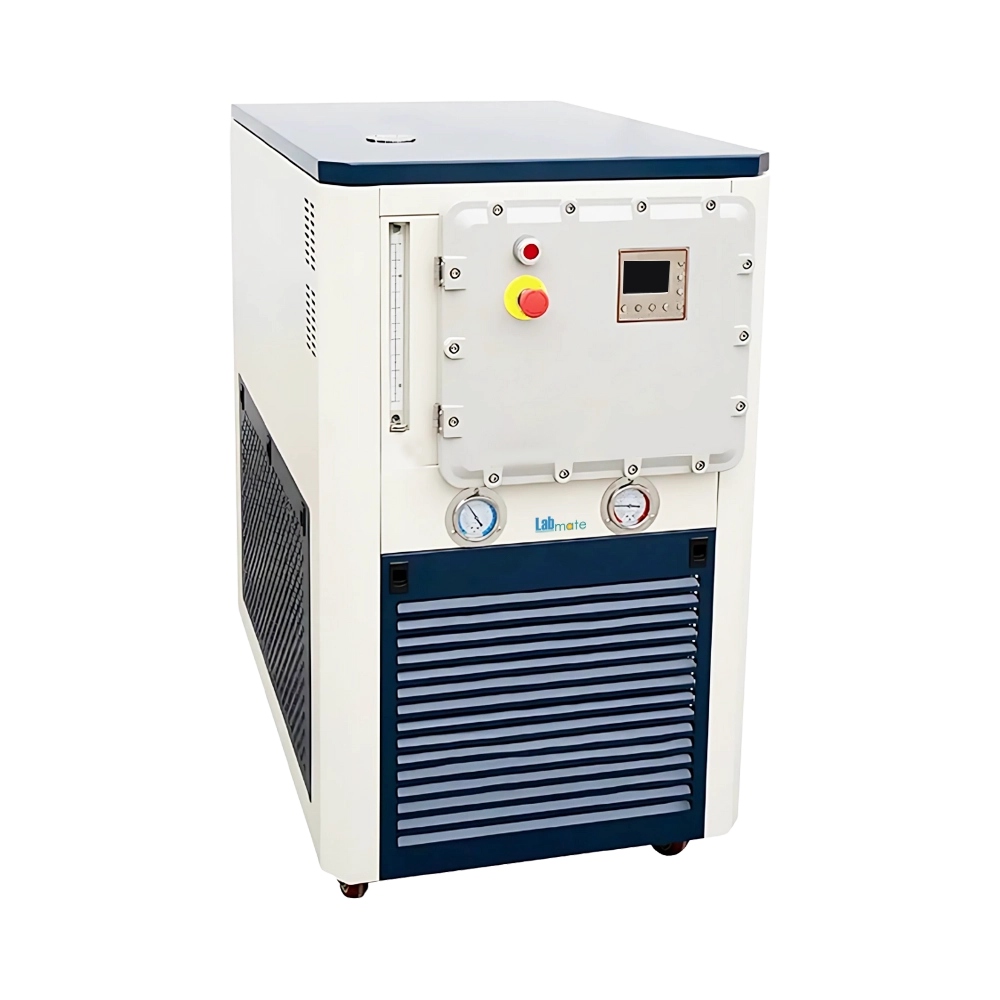

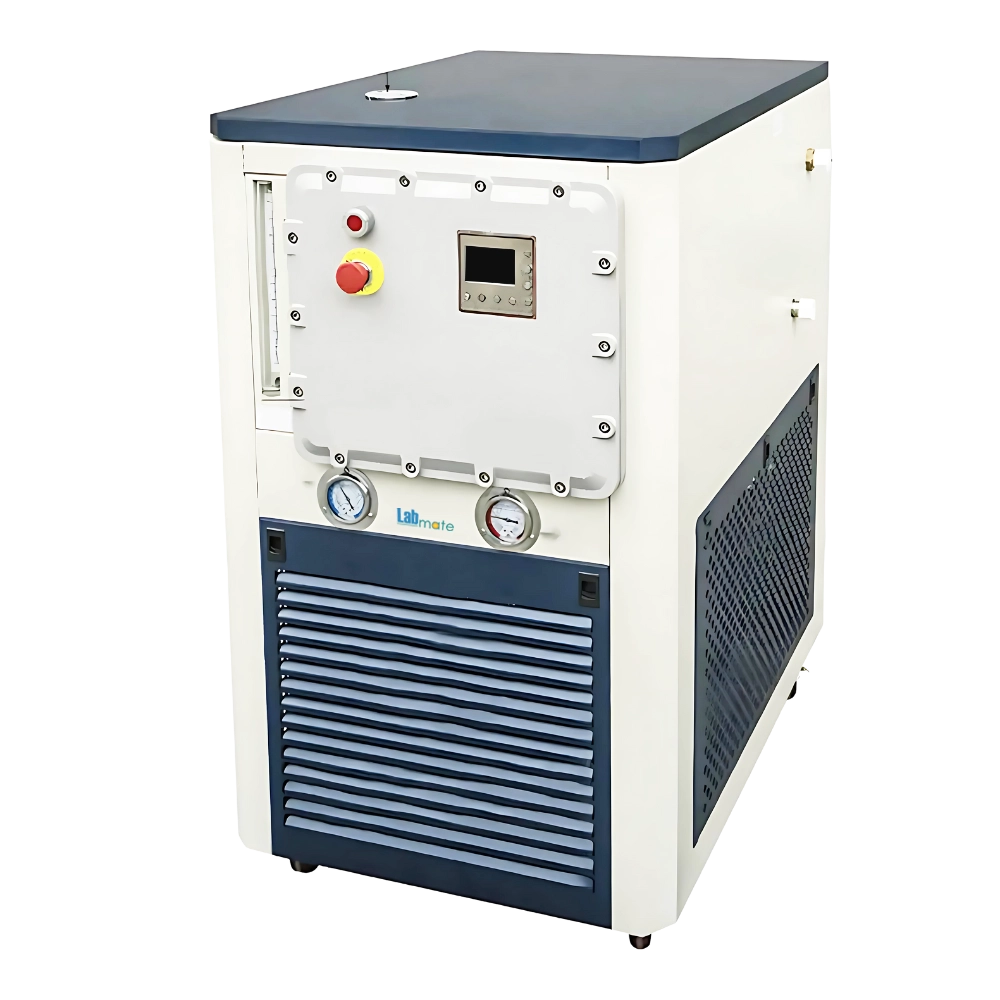

Explosion-Proof Thermal Circulator LMETR-A104 offers working temperature range from -30℃ to 200℃. It features real-time liquid level display for instant monitoring and safer fluid management. Equipped with front-mounted low- and high-pressure gauges for easy system pressure tracking. Incorporates bath fluid filling port, outlet, and inlet to support efficient circulation and maintenance. Our Circulator ensures thermal control in various settings.
Specifications
| Working Temperature Range | -30 to 200℃ |
| Volume | 20 L |
| Flow Rate | 20 to 40 L/min |
| Pressure | Less than or equal to 0.4 MPa |
| Pump Lift Range | 4 to 6 m |
| Temperature Sensor | PT100 |
| Refrigerant | R404 |
| Ambient Temperature Range | 5 to 35℃ |
| Relative Humidity | Less than or equal to 70% |
| Temperature Control Accuracy | ±0.1℃ |
| External Input | External sensor port |
| Heating Power | 3000W |
| Compressor Power | 1470W |
| Cooling Power | 4648W |
| Circulating Pump Power | 100W |
| Power Consumption | 4570W |
| Power Supply | 220V/50Hz |
| Dimensions (W×D×H) | 630×670×990 mm |
| Weight | 104 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion-Proof Thermal Circulator LMETR-A104 | $ 6200 | Each of 1 |
Features
Compact heat exchanger
Multi-layer protection
Smart control panel
Smooth rolling casters
Emergency stop button
Status indicator lights
Applications
Explosion-Proof Thermal Circulator LMETR-A104 enables temperature control in reactors, semiconductor systems, fermentation tanks, pilot production lines, and extraction units.
