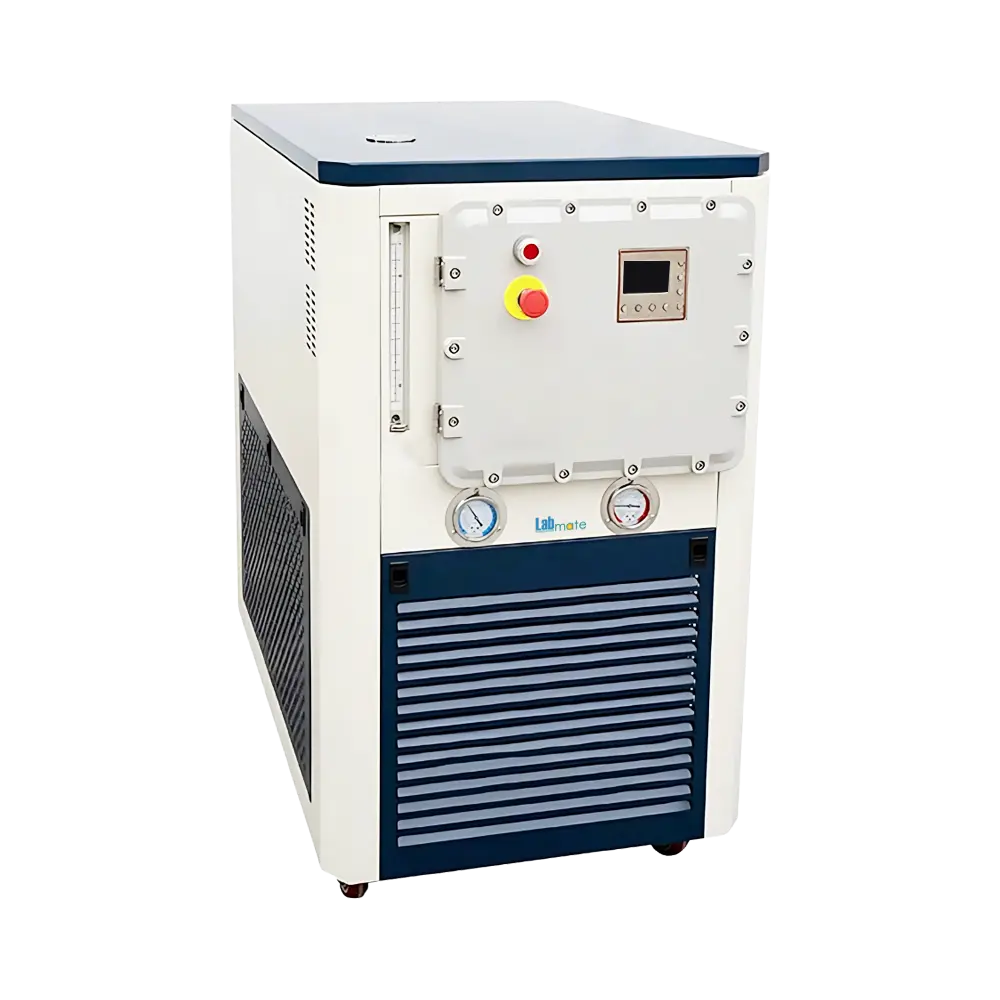

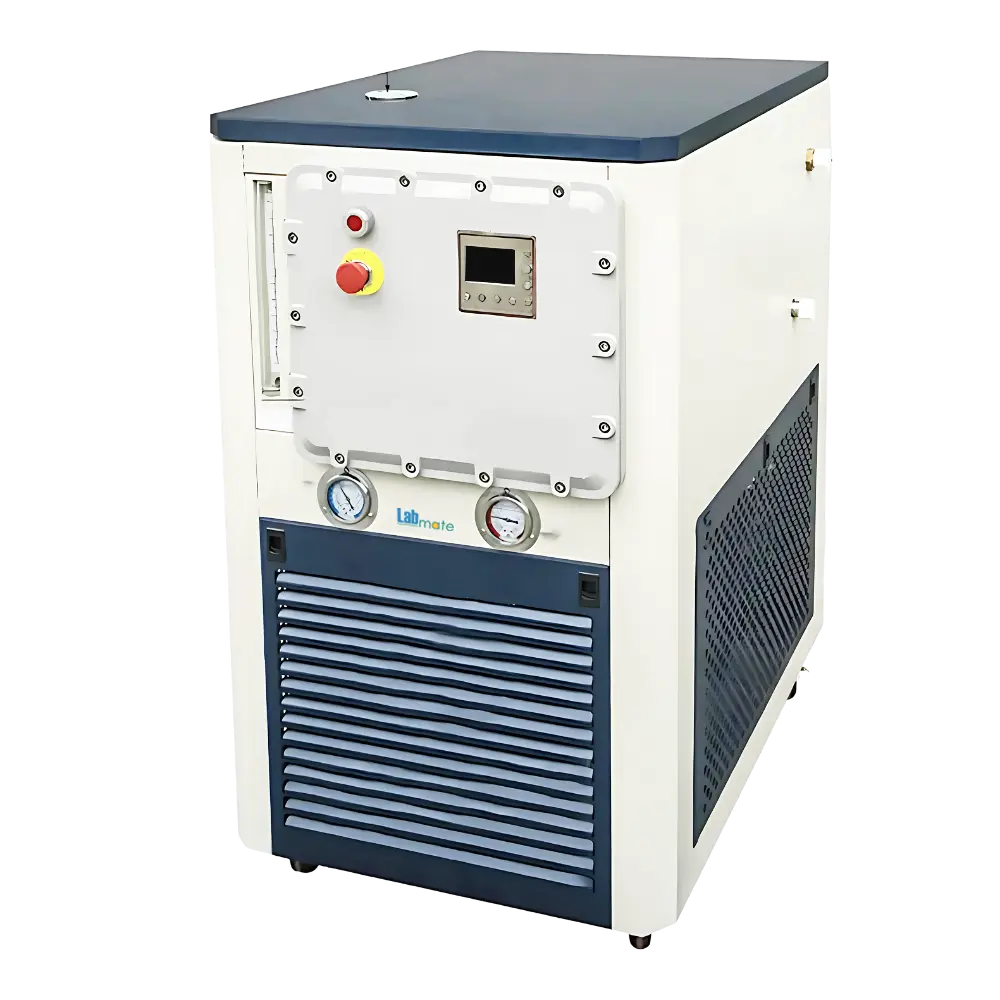

Explosion-Proof Thermal Circulator LMETR-A105 operates within -40℃ to 200℃, covering both low and high temperatures. It features compact brazed plate heat exchanger to deliver strong thermal exchange. Equipped with clearly labeled control panel that includes an emergency stop button and indicator lights for easy handling. Incorporates an enclosed compressor ensuring minimal noise and stable long-term operation. Our Circulator ensures external cooling and heating.
Specifications
| Working Temperature Range | -40 to 200℃ |
| Volume | 20 L |
| Flow Rate | 20 to 40 L/min |
| Pressure | Less than or equal to 0.4 MPa |
| Pump Lift Range | 4 to 6 m |
| Temperature Sensor | PT100 |
| Refrigerant | R404 |
| Ambient Temperature Range | 5 to 35℃ |
| Relative Humidity | Less than or equal to 70% |
| Temperature Control Accuracy | ±0.1℃ |
| External Input | External sensor port |
| Heating Power | 3000W |
| Compressor Power | 2205W |
| Cooling Power | 6972W |
| Circulating Pump Power | 100W |
| Power Consumption | 5400W |
| Power Supply | 220V/50Hz |
| Dimensions (W×D×H) | 630×670×990 mm |
| Weight | 104 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion-Proof Thermal Circulator LMETR-A105 | $ 6550 | Each of 1 |
Features
Closed circulation system
Real-time liquid level display
Multi-layer protection
Dual pressure gauges
Fluid inlet/outlet ports
Ventilation grille
Mobility casters
Applications
Explosion-Proof Thermal Circulator LMETR-A105 enables reliable temperature control in reactors, semiconductor systems, fermentation tanks, pilot production lines, extraction units, and other volatile environments requiring stable thermal management.
