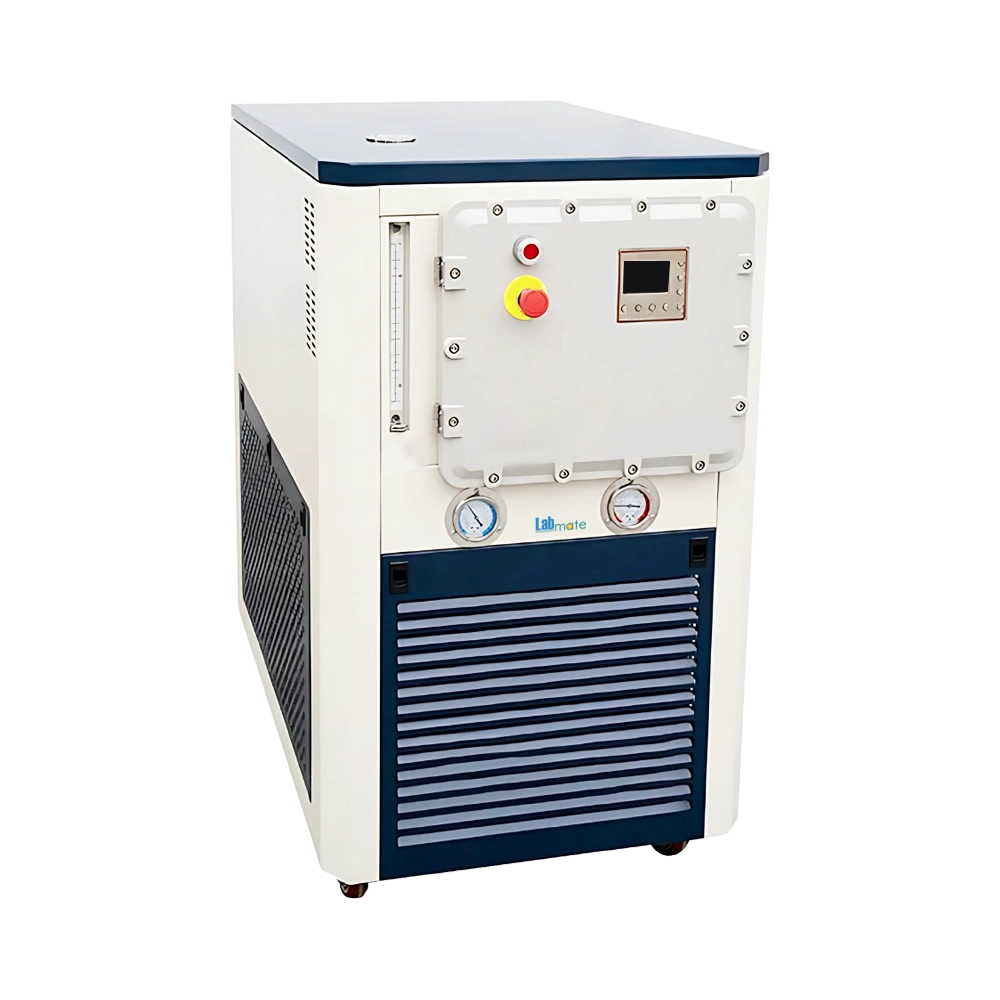

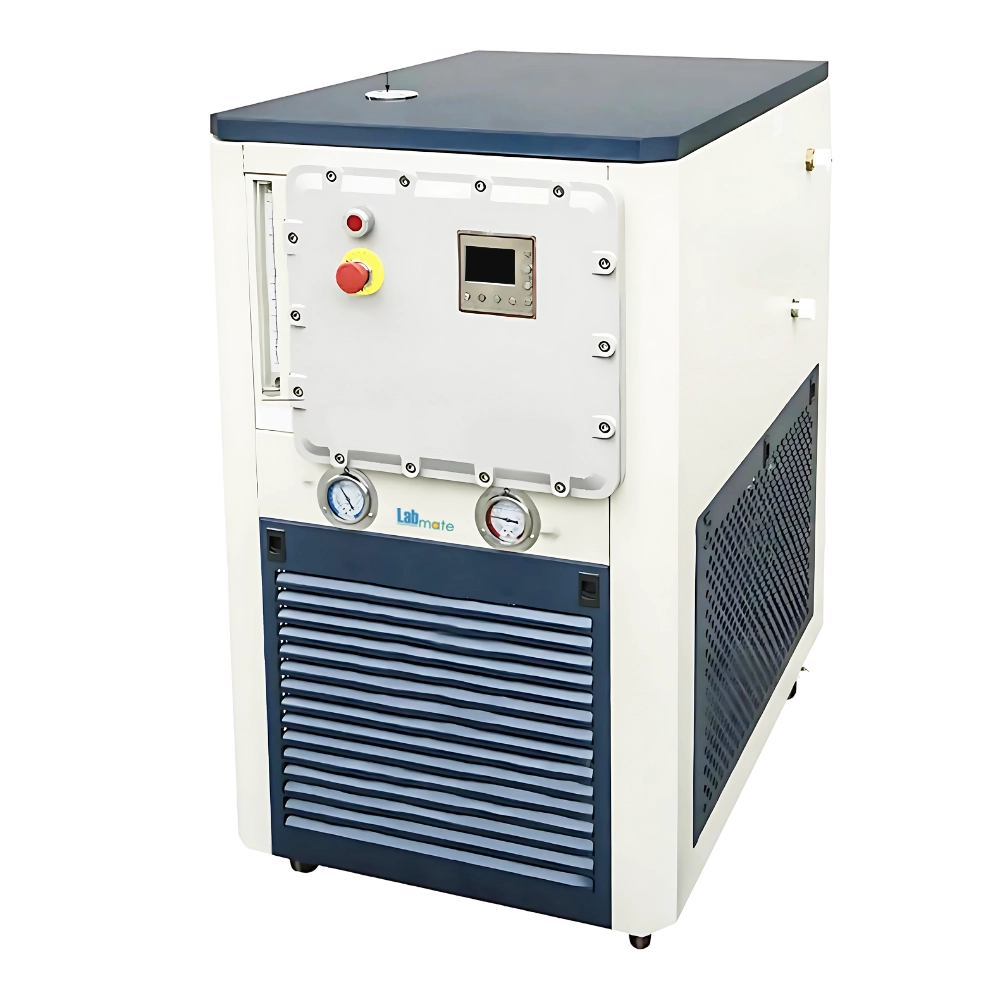

Explosion-Proof Thermal Circulator LMETR-A102 is designed with 10-liter reactor volume. It features fully closed circulation system to extend heat transfer fluid life and reduce contamination. Equipped with an explosion-proof control box and observation window for bath liquid monitoring. Integrates smooth casters for flexible movement and easy positioning in labs or industrial environments. Our Circulator provides external cold and heat sources in various equipment.
Specifications
| Working Temperature Range | -40 to 200℃ |
| Volume | 10 L |
| Flow Rate | 20 to 40 L/min |
| Pressure | Less than or equal to 0.4 MPa |
| Pump Lift Range | 4 to 6 m |
| Temperature Sensor | PT100 |
| Refrigerant | R404 |
| Ambient Temperature Range | 5 to 35℃ |
| Relative Humidity | Less than or equal to 70% |
| Temperature Control Accuracy | ±0.1℃ |
| External Input | External sensor port |
| Heating Power | 3000W |
| Compressor Power | 1470W |
| Cooling Power | 4648W |
| Circulating Pump Power | 100W |
| Power Consumption | 4600W |
| Power Supply | 220V/50Hz |
| Dimensions (W×D×H) | 600×640×890 mm |
| Weight | 105 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion-Proof Thermal Circulator LMETR-A102 | $ 5862.5 | Each of 1 |
Features
Silent compressor
Dual pressure gauges
Fluid access ports
Efficient airflow vent
Emergency stop button
Status indicator lights
Applications
Explosion-Proof Thermal Circulator LMETR-A102 is applied foe external heating and cooling in reactors, semiconductor systems, fermentation tanks, pilot production lines, and extraction units.
