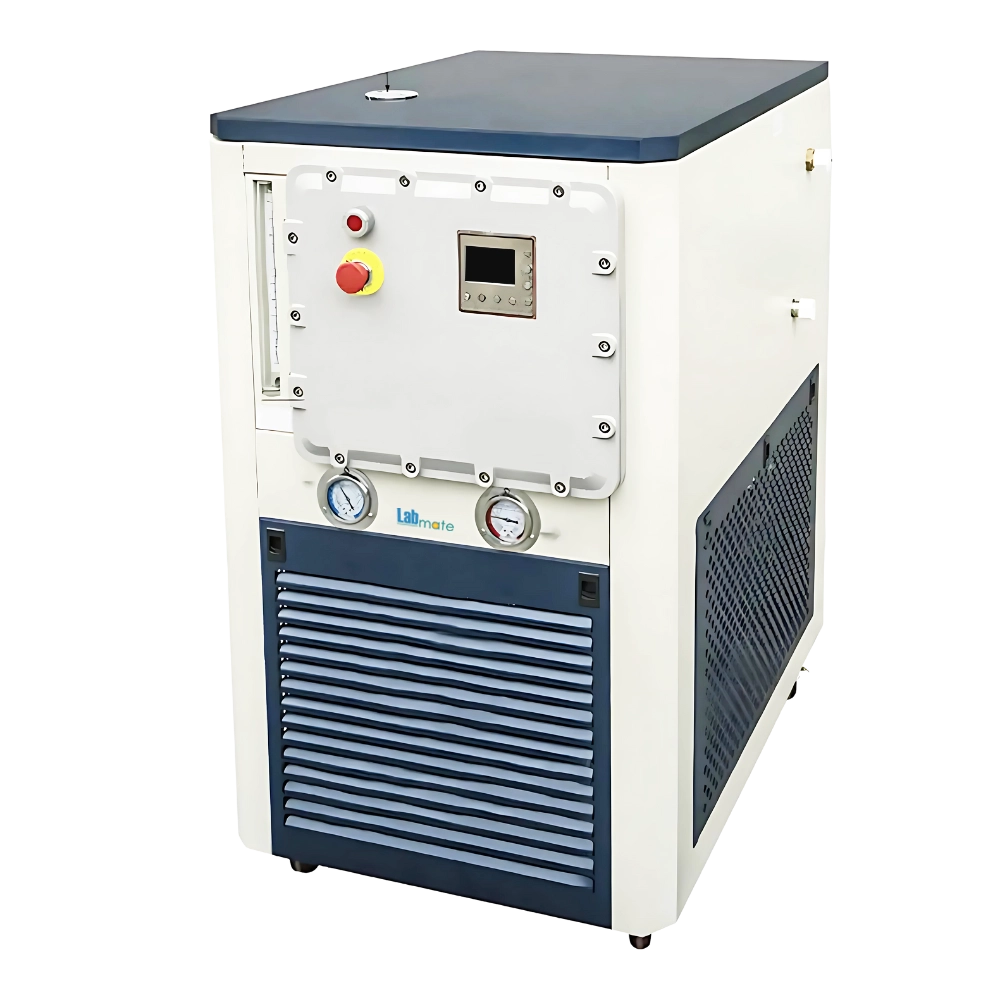

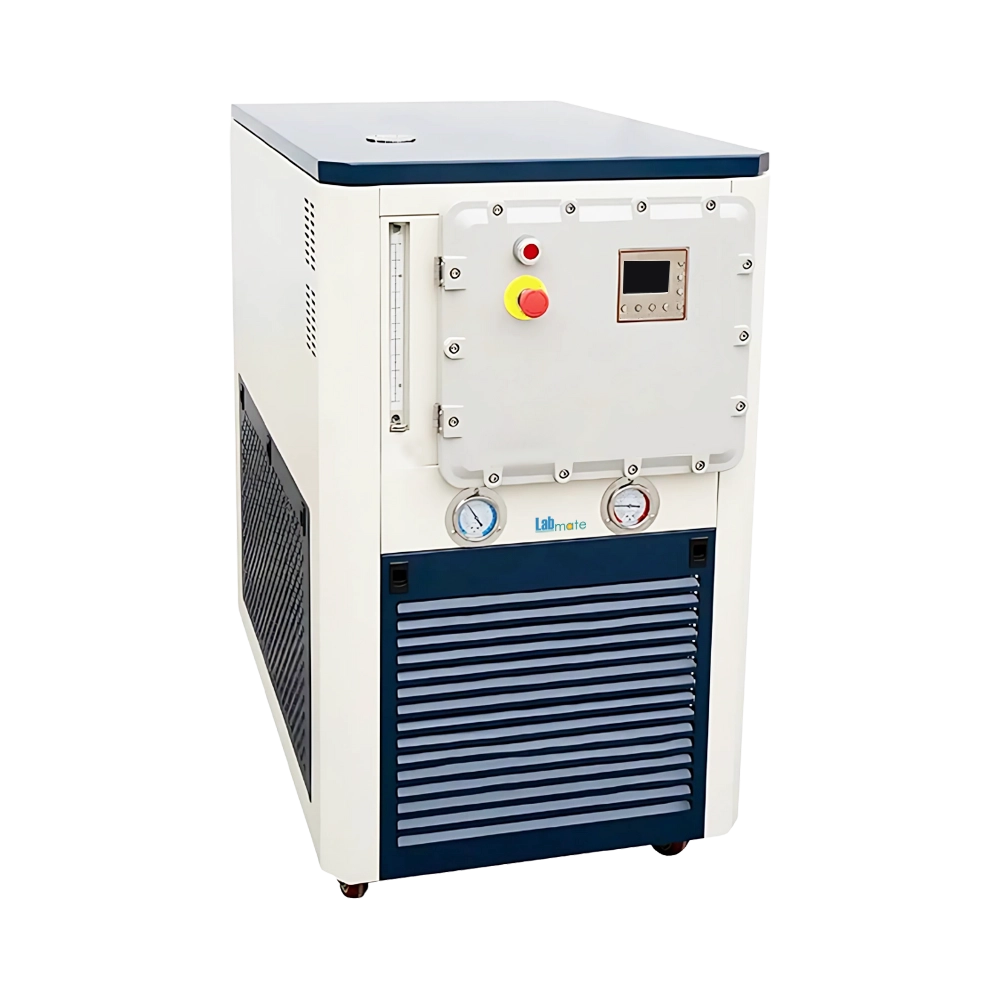

Explosion-Proof Thermal Circulator LMETR-A103 offers wide working temperature range from -80℃ to 200℃. It features high-quality enclosed compressor delivering low noise and stable long-term operation. Equipped with external PT100 sensors, it ensures reliable temperature control in various environments. Integrates ventilation window to promote effective airflow and internal cooling for extended equipment life. Our Circulator is ideal for exterior thermal management.
Specifications
| Working Temperature Range | -80 to 200℃ |
| Volume | 10 L |
| Flow Rate | 20 to 40 L/min |
| Pressure | Less than or equal to 0.4 MPa |
| Pump Lift Range | 4 to 6 m |
| Temperature Sensor | PT100 |
| Refrigerant | R404 |
| Ambient Temperature Range | 5 to 35℃ |
| Relative Humidity | Less than or equal to 70% |
| Temperature Control Accuracy | ±0.1℃ |
| External Input | External sensor port |
| Heating Power | 3000W |
| Compressor Power | 2205W |
| Cooling Power | 6972W |
| Circulating Pump Power | 100W |
| Power Consumption | 7510W |
| Power Supply | 220V/50Hz |
| Dimensions (W×D×H) | 804×703×970 mm |
| Weight | 170 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion-Proof Thermal Circulator LMETR-A103 | $ 8362.5 | Each of 1 |
Features
Closed circulation system
Compact heat exchanger
Dual pressure gauges
Fluid access ports
Smooth rolling casters
Emergency stop button
Status indicator lights
Applications
Explosion-Proof Thermal Circulator LMETR-A103 is employed for stable temperature control in reactors, semiconductor systems, pilot production lines, and bioprocessing units.
