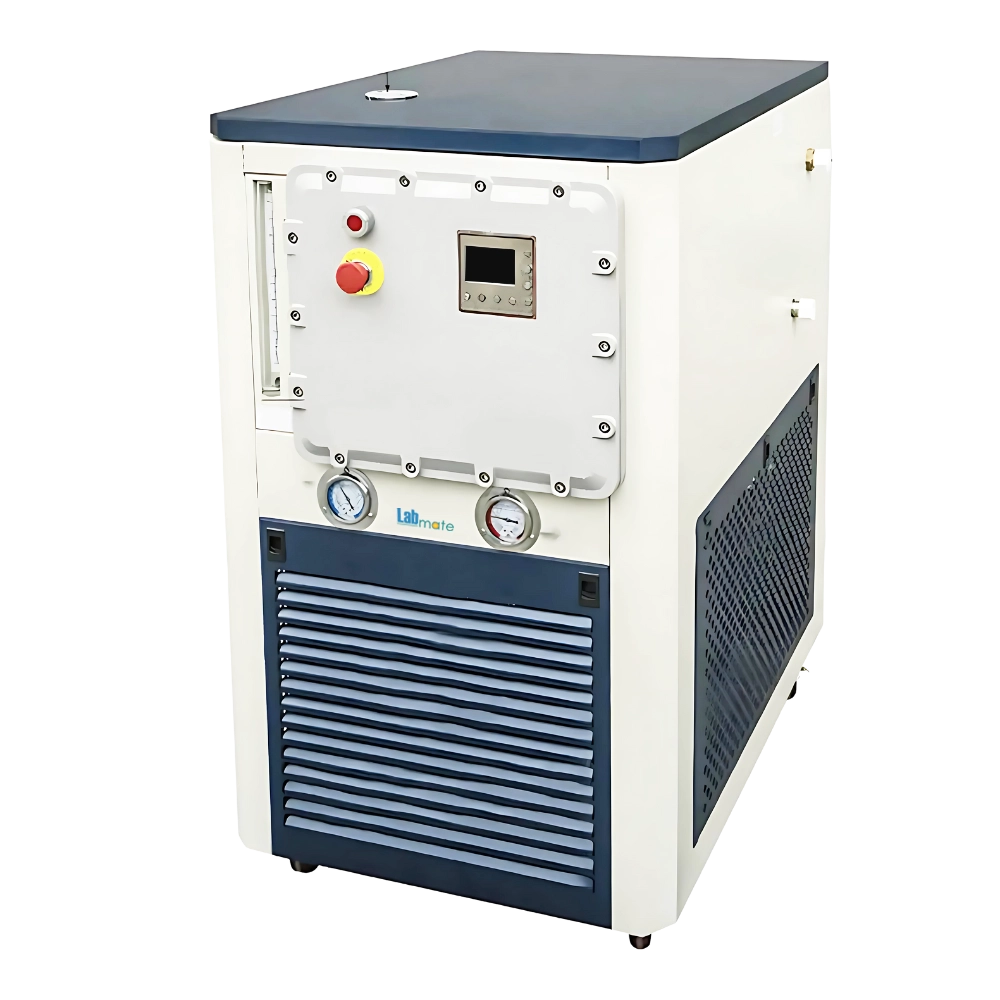

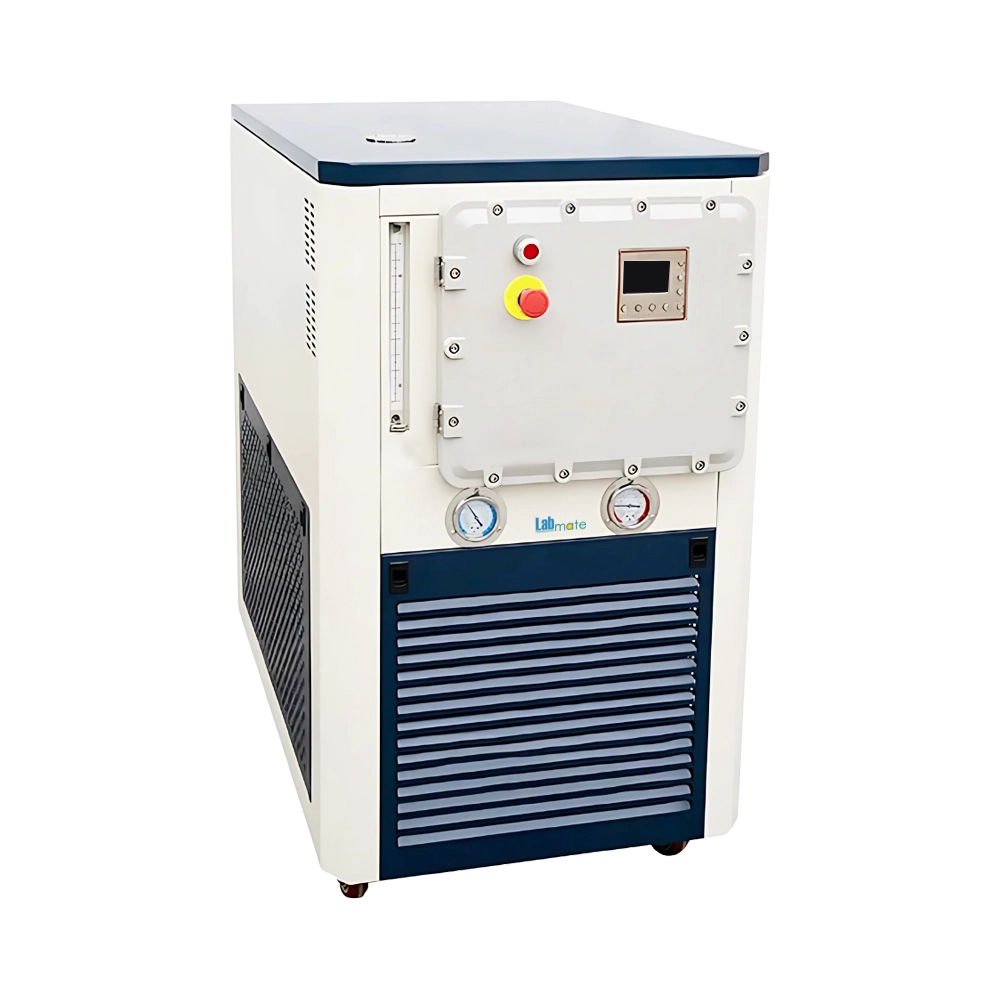

Explosion-Proof Thermal Circulator LMETR-A101 is designed to provide -30 to 200℃ temperatures. It features leakage, overheating, and overcurrent protection functions to ensure operational safety. Equipped with front-mounted low- and high-pressure gauges for easy system pressure tracking. Integrated precooling, heating, and refrigeration systems functioning simultaneously for better thermal balance. Our Circulator ensures external cold and heat sources in reactors, bioprocessing units, and pilot lines.
Specifications
| Working Temperature Range | -30 to 200℃ |
| Volume | 10 L |
| Flow Rate | 20 to 40 L/min |
| Pressure | Less than or equal to 0.4 MPa |
| Pump Lift Range | 4 to 6 m |
| Temperature Sensor | PT100 |
| Refrigerant | R404 |
| Ambient Temperature Range | 5 to 35℃ |
| Relative Humidity | Less than or equal to 70% |
| Temperature Control Accuracy | ±0.1℃ |
| External Input | External sensor port |
| Heating Power | 3000W |
| Compressor Power | 1103W |
| Cooling Power | 3486W |
| Circulating Pump Power | 100W |
| Power Consumption | 4570W |
| Power Supply | 220V/50Hz |
| Dimensions (W×D×H) | 600×640×890 mm |
| Weight | 105 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion-Proof Thermal Circulator LMETR-A101 | $ 5175 | Each of 1 |
Features
Closed circulation
Silent compressor
Compact heat exchanger
Real time display
Fluid access ports
Airflow vent
Casters
Applications
Explosion-Proof Thermal Circulator LMETR-A101 ensures stable temperature control in reactors, semiconductor systems, pilot production lines, and bioprocessing units, supporting efficient thermal management.
