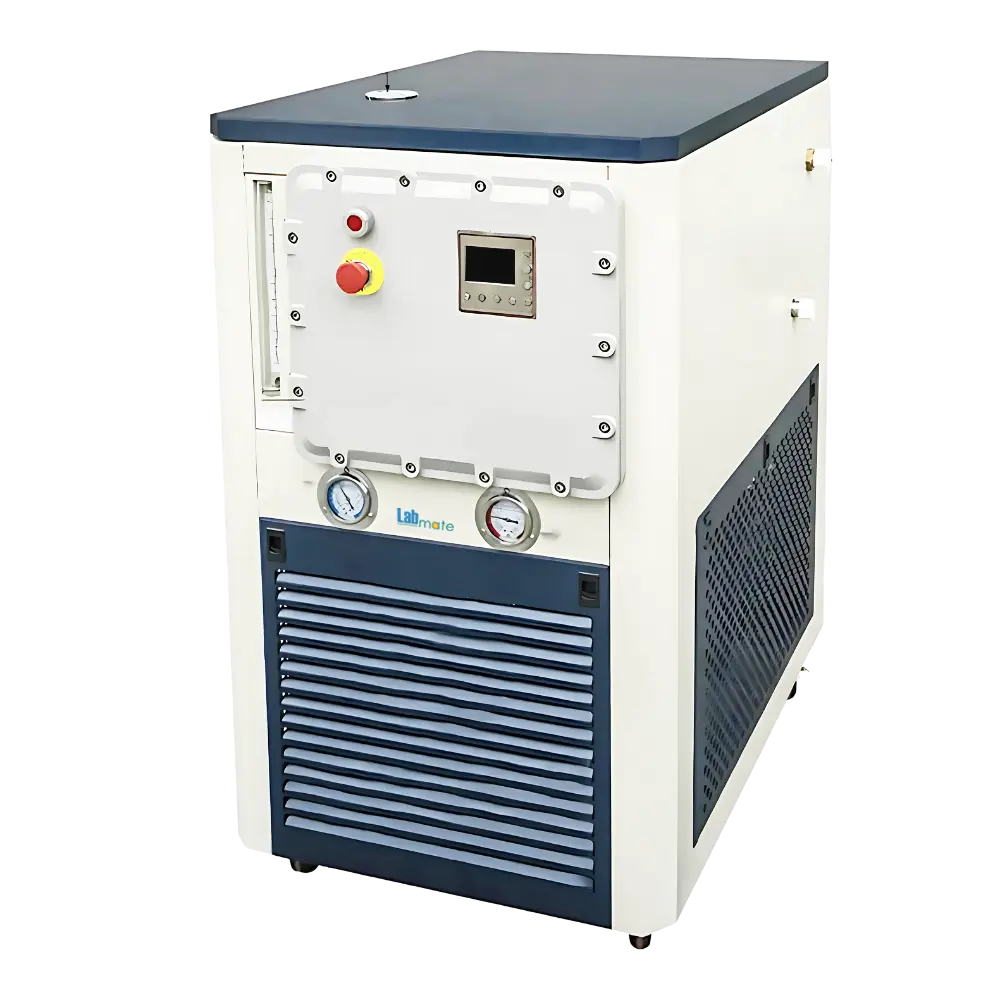

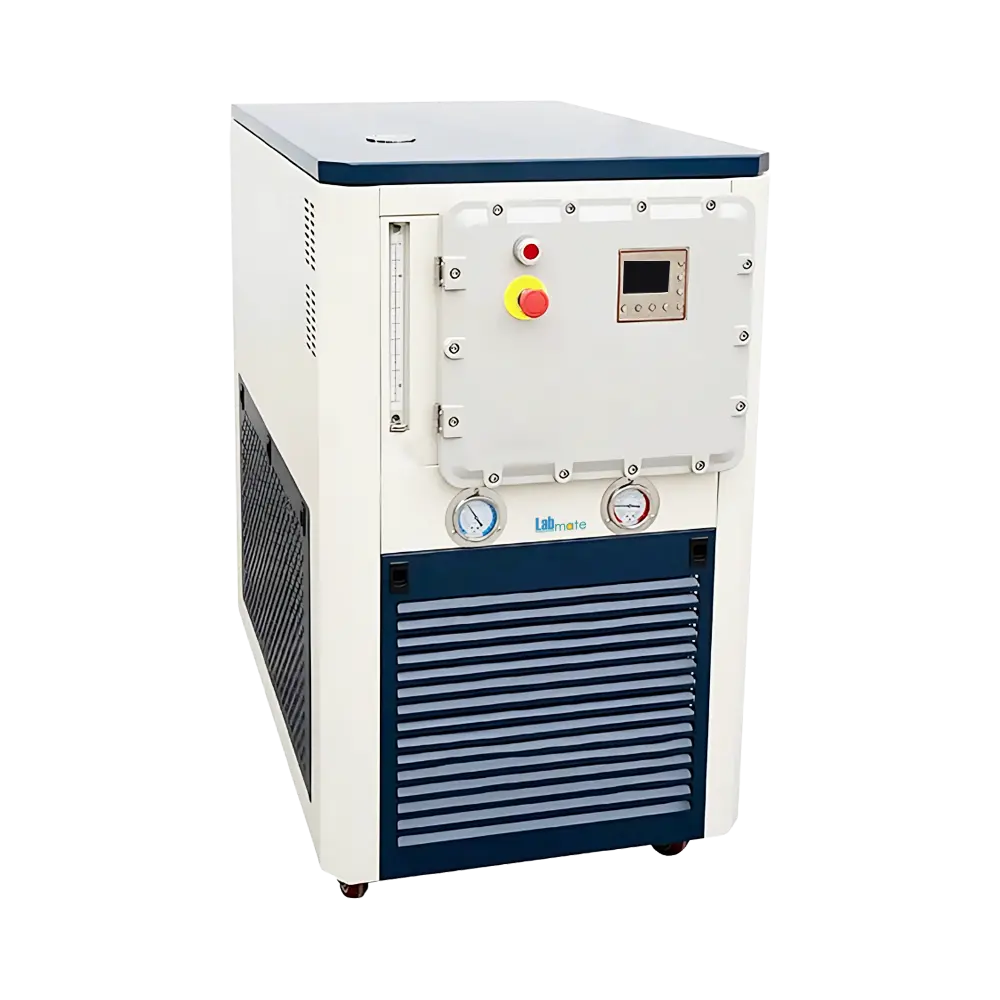

Explosion-Proof Thermal Circulator LMETR-A110 is designed with -30℃ to 200℃ temperature range. It features compact brazed plate heat exchanger to deliver strong heat exchange. Equipped with an explosion-proof control box and observation window for bath fluid monitoring during operation. Incorporates smooth casters for flexible movement and easy positioning. Our Circulator maintains thermal conditions in reactors, fermentation systems, and production lines.
Specifications
| Working Temperature Range | -30 to 200℃ |
| Volume | 50 L |
| Flow Rate | 30 L/min |
| Pressure | Less than or equal to 0.4 MPa |
| Pump Lift Range | 15 m |
| Temperature Sensor | PT100 |
| Refrigerant | R404 |
| Ambient Temperature Range | 5 to 35℃ |
| Relative Humidity | Less than or equal to 70% |
| Temperature Control Accuracy | ±0.1℃ |
| External Input | External sensor port |
| Heating Power | 6000W |
| Compressor Power | 2948W |
| Cooling Power | 8844W |
| Circulating Pump Power | 250W |
| Power Consumption | 9200W |
| Power Supply | 380V/50Hz |
| Dimensions (W×D×H) | 680×750×1120 mm |
| Weight | 140 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion-Proof Thermal Circulator LMETR-A110 | $ 7237.5 | Each of 1 |
Features
Closed circulation system
External sensor support
Multi-layer protection
Dual pressure gauges
Fluid access ports
Emergency stop button
Status indicator lights
Applications
Explosion-Proof Thermal Circulator LMETR-A110 is ideal for maintaining stable temperature conditions in reactors, fermentation systems, and production lines across biotech, pharmaceutical, and food industries.
