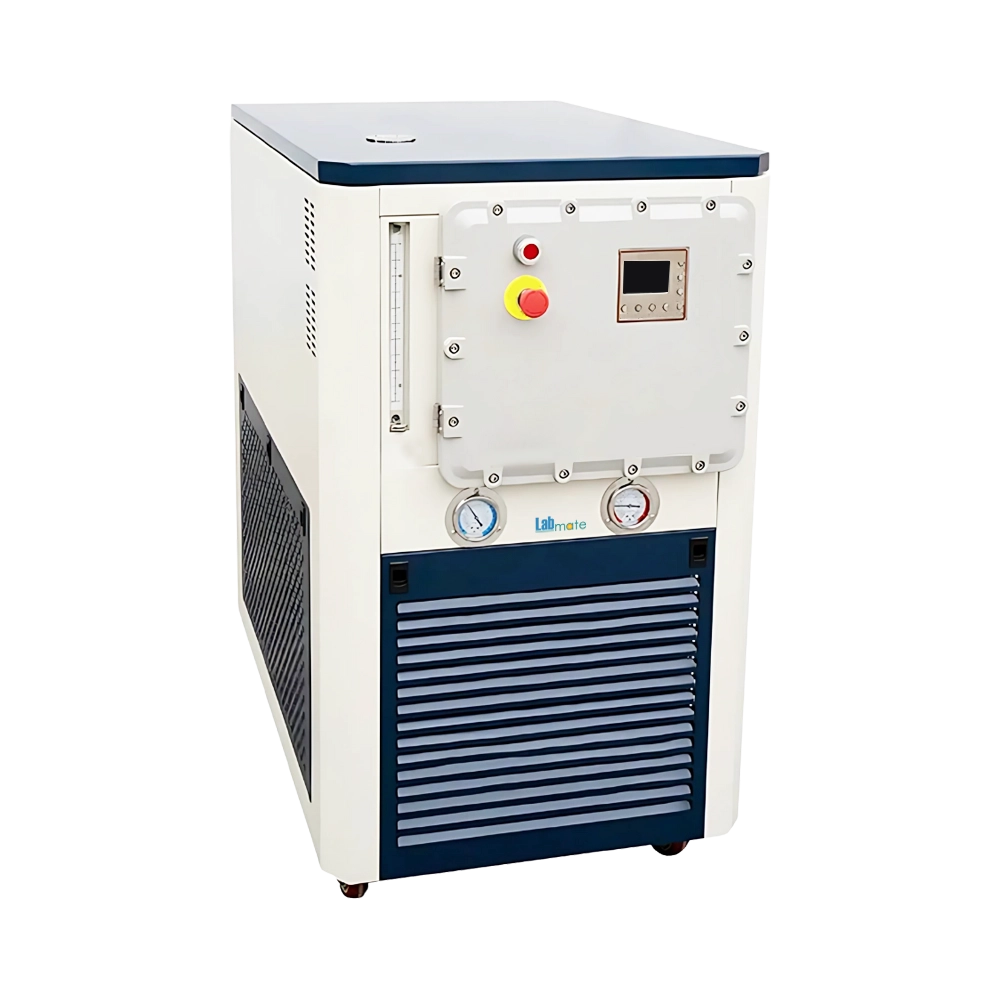

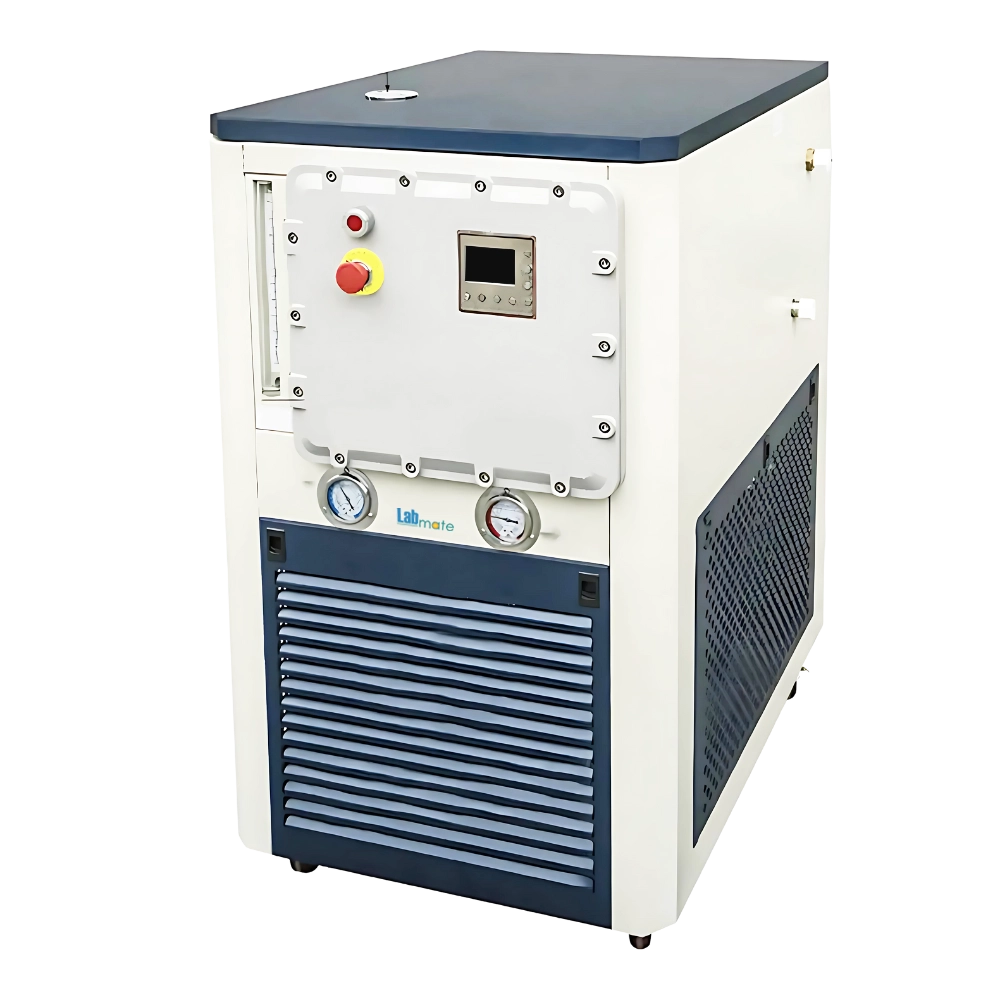

Explosion-Proof Thermal Circulator LMETR-A100 offers temperatures from -20 to 200℃. It features real-time liquid level display for instant monitoring and safer management. Equipped with fully closed circulation system, it extends heat transfer fluid life and reduces contamination. Incorporates control panel with an emergency stop button and indicator lights for easy handling. Our Circulator is ideal for thermal control in reactors, bioprocessing units, pilot lines, and semiconductor systems.
Specifications
| Working Temperature Range | -20 to 200℃ |
| Volume | 5 L |
| Flow Rate | 20 to 40 L/min |
| Pressure | Less than or equal to 0.4 MPa |
| Pump Lift Range | 4 to 6 m |
| Temperature Sensor | PT100 |
| Refrigerant | R404 |
| Ambient Temperature Range | 5 to 35℃ |
| Relative Humidity | Less than or equal to 70% |
| Temperature Control Accuracy | ±0.1℃ |
| External Input | External sensor port |
| Heating Power | 2000W |
| Compressor Power | 736W |
| Cooling Power | 2208W |
| Circulating Pump Power | 100W |
| Power Consumption | 2900W |
| Power Supply | 220V/50Hz |
| Dimensions (W×D×H) | 640×570×870 mm |
| Weight | 105 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion-Proof Thermal Circulator LMETR-A100 | $ 4650 | Each of 1 |
Features
External sensor support
Compact heat exchanger
Dual pressure gauges
Fluid access ports
Efficient airflow vent
Smooth rolling casters
Applications
Explosion-Proof Thermal Circulator LMETR-A100 is deal for cooling, heating, and stabilizing temperatures in semiconductor systems, bioprocessing lines, pilot production units, and reactors.
