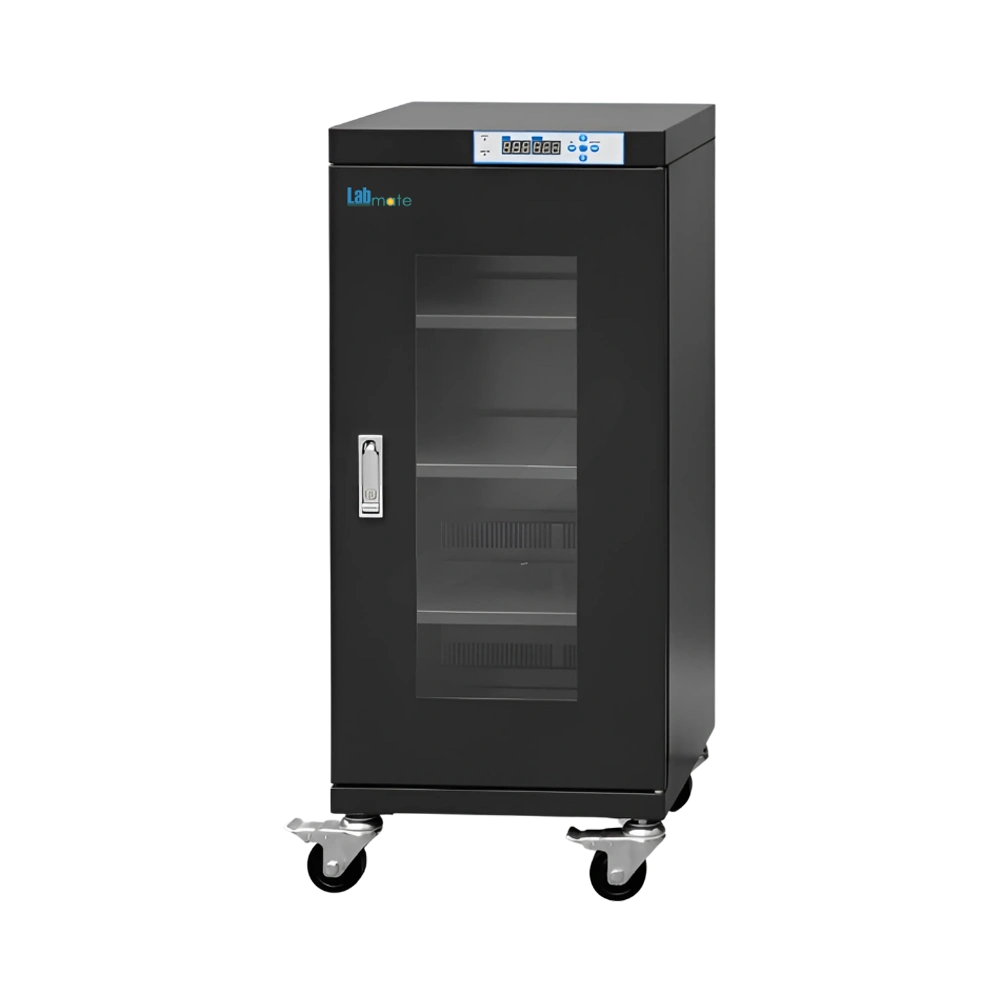

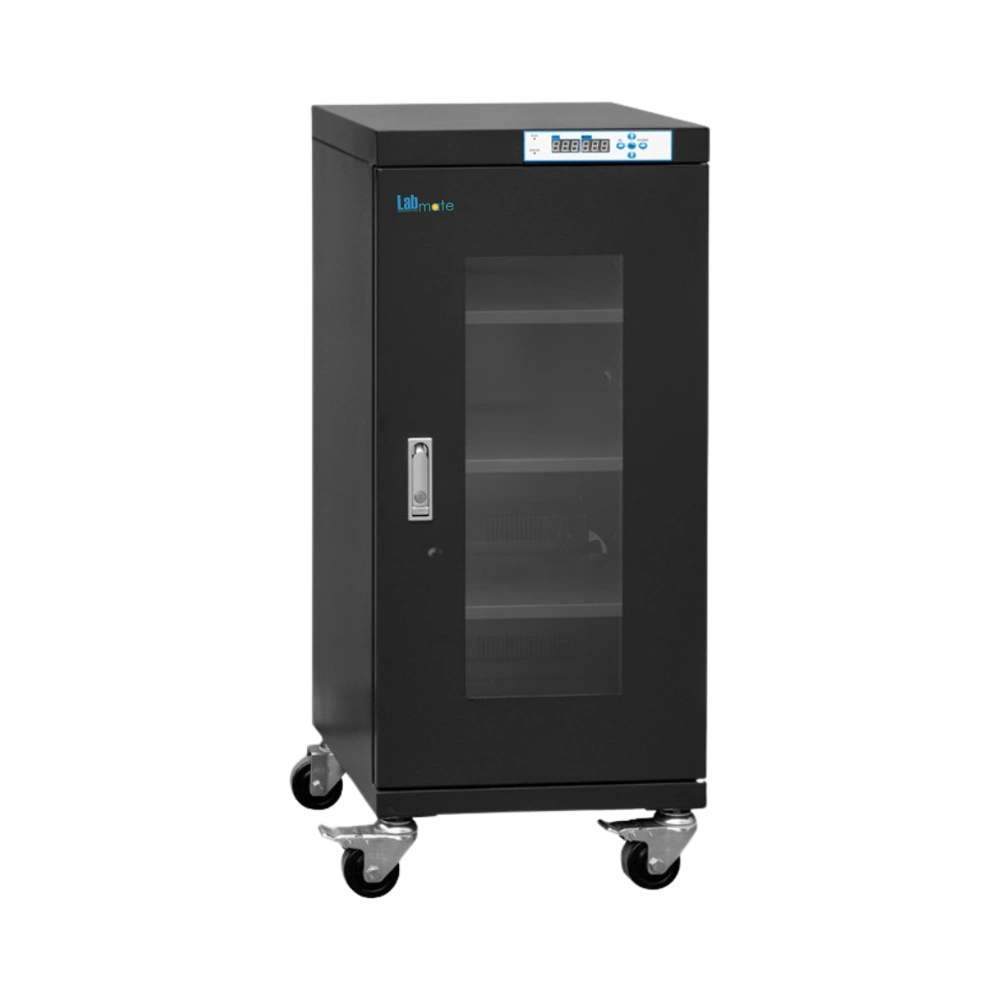

Desiccator Dry Cabinet LMDCC-D101 provides 160 L capacity to store moisture and charge-sensitive parts. Built with 1.2 mm thick galvanized steel for structural strength and long-term durability. Integrated with ESD- compliant polyurethane wheels for smooth mobility across cleanroom environments. It is designed to ensure controlled electrostatic discharge within a surface resistance range of 10⁶ to 10⁸ Ω. Our Desiccator Dry Cabinet LMDCC-D101 supports a total weight of up to 50 kg without compromising stability.
Specifications
| Storage Capacity | 160 L |
| Humidity Range | Less than 5% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 3 |
| Door Quantity | 1 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 10 W |
| Maximum Load Per Shelf | 50 Kg |
| Interior Dimension (W×D×H) | 446 × 422 × 848 mm |
| Exterior Dimension(W×D×H) | 448 × 450 × 1010 mm |
| Net Weight | 31 Kg |
| Gross Weight | 43 Kg |
Features
Rapid Humidity Recovery
Triple Shelf Configuration
LED Display
Lightweight
High Intensity Tempered Glass Window
Optional Accessories
| Model no. | Accessory |
| LMDCC-D101-A1 | Over Humidity Buzzer Alarm |
| LMDCC-D101-A2 | Open Door Buzzer Alarm |
| LMDCC-D101-A3 | Three-Color Flashing Light Alarm |
| LMDCC-D101-D1 | Data Logging System With USB Interface |
| LMDCC-D101-S1 | Extra Shelf |
Applications
Desiccator Dry Cabinet LMDCC-D101 is vital for preserving metrology components such as probes, calibration sensors, and alignment fixtures by minimizing moisture exposure and electrostatic discharge.
Similar Products
Frequently Asked Questions
1 What is a Desiccator Dry Cabinet?
A Desiccator Dry Cabinet is an apparatus designed to store items that are sensitive to moisture by providing dry and low-humidity environment.
2 How does Desiccator Dry Cabinet work?
It utilizes a combination of desiccants such as silica gel to absorb moisture from the air inside the cabinet thereby protecting moisture-sensitive items.
3 What is the difference between a Desiccator Dry Cabinet and a regular Dry Cabinet?
A Desiccator Dry Cabinet maintains very low humidity that ensures consistent environment for moisture-sensitive items whereas a regular Dry Cabinet does not provide controlled humidity system.
4 Can Desiccator Dry Cabinet be used to store items at very low temperatures?
It is engineered to store items at room temperature or moderate temperature.
