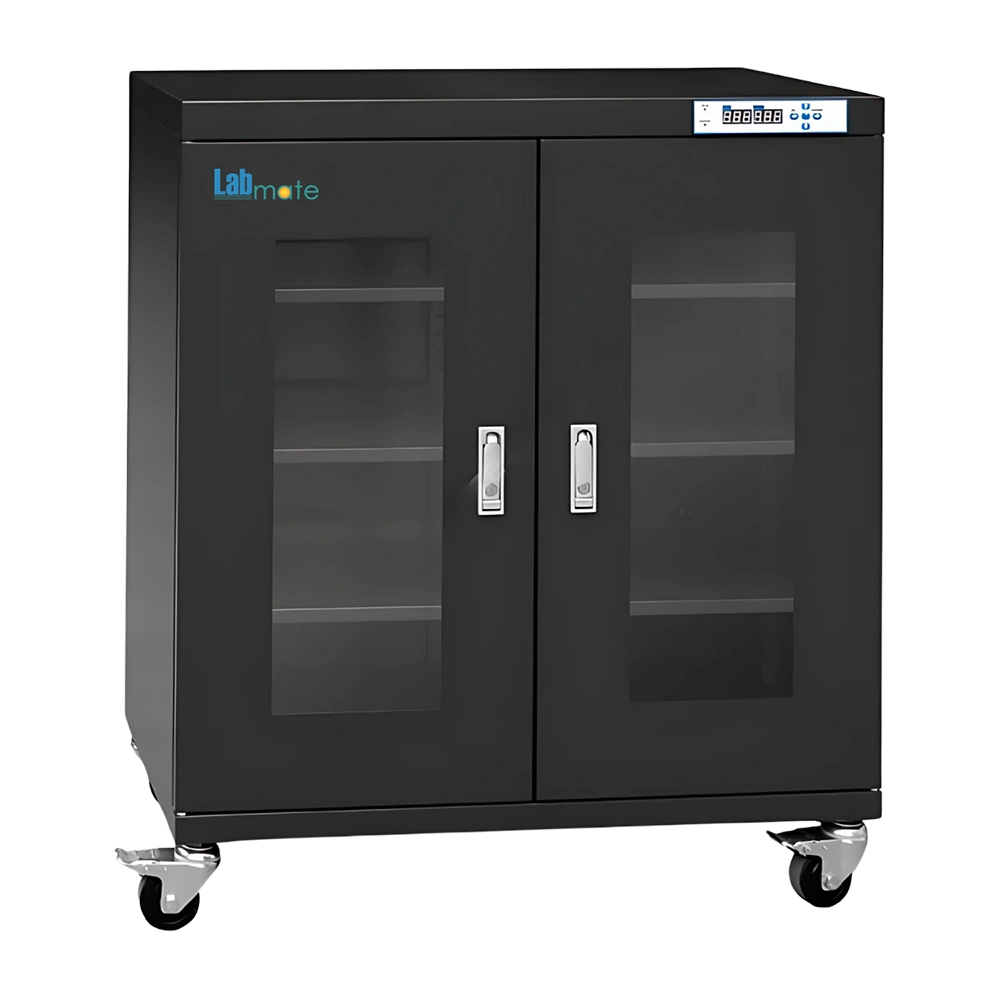

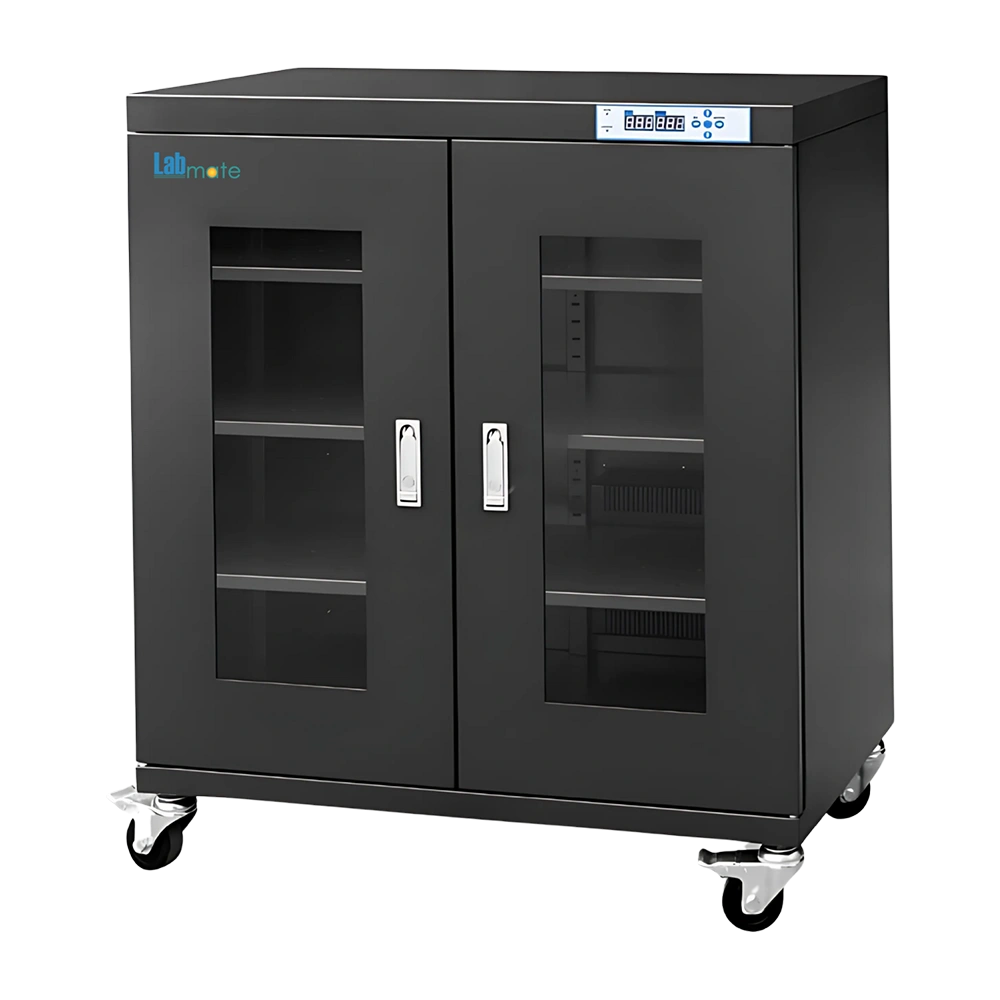

Desiccator Dry Cabinet LMDCC-E100 features a large 320 L capacity for storing moisture-sensitive materials. Equipped with maintaining humidity levels below 3% RH to preserve semiconductors and delicate electronic assemblies. Integrated with 3 adjustable shelves designed for organized placement across variable samples. Built with 1.2 mm galvanized steel and conductive coating to prevent corrosion and charge build-up. Our Desiccator Dry Cabinet offers surface resistance of 10⁶ to 10⁸ Ω for static safety.
Specifications
| Storage Capacity | 320 L |
| Humidity Range | Less than 3% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 3 |
| Door Quantity | 2 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 10 W |
| Maximum Load Per Shelf | 80 Kg |
| Interior Dimension (W×D×H) | 898 × 422 × 848 mm |
| Exterior Dimension(W×D×H) | 900 × 450 × 1010 mm |
| Net Weight | 54 Kg |
| Gross Weight | 70 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Desiccator Dry Cabinet LMDCC-E100 | $ 3650 | Each of 1 |
Features
Double Door Construction
ESD Safe PU Wheels
LED Display Interface
Low Power Consumption
Robust Load Support
Optional Accessories
| Model no. | Accessory |
| LMDCC-E100-A1 | Over Humidity Buzzer Alarm |
| LMDCC-E100-A2 | Open Door Buzzer Alarm |
| LMDCC-E100-A3 | Three-Color Flashing Light Alarm |
| LMDCC-E100-D1 | Data Logging System With USB Interface |
| LMDCC-E100-S1 | Extra Shelf |
Applications
Desiccator Dry Cabinet LMDCC-E100 is employed for storing printed circuit boards (PCBs), IC chips and other components sensitive to static discharge.
Similar Products
$ 3780 / Each of 1
$ 2487.5 / Each of 1
$ 3350 / Each of 1
$ 3787.5 / Each of 1
$ 2300 / Each of 1
$ 2112.5 / Each of 1
$ 6050 / Each of 1
$ 3315 / Each of 1
$ 2881.25 / Each of 1
$ 8415 / Each of 1
$ 3583.75 / Each of 1
$ 3137.5 / Each of 1
$ 2350 / Each of 1
$ 7312.5 / Each of 1
$ 8637.5 / Each of 1
Frequently Asked Questions
1 What is a Desiccator Dry Cabinet?
A Desiccator Dry Cabinet is an apparatus designed to store items that are sensitive to moisture by providing dry and low-humidity environment.
2 How does Desiccator Dry Cabinet work?
It utilizes a combination of desiccants such as silica gel to absorb moisture from the air inside the cabinet thereby protecting moisture-sensitive items.
3 What is the difference between a Desiccator Dry Cabinet and a regular Dry Cabinet?
A Desiccator Dry Cabinet maintains very low humidity that ensures consistent environment for moisture-sensitive items whereas a regular Dry Cabinet does not provide controlled humidity system.
4 Can Desiccator Dry Cabinet be used to store items at very low temperatures?
It is engineered to store items at room temperature or moderate temperature.
