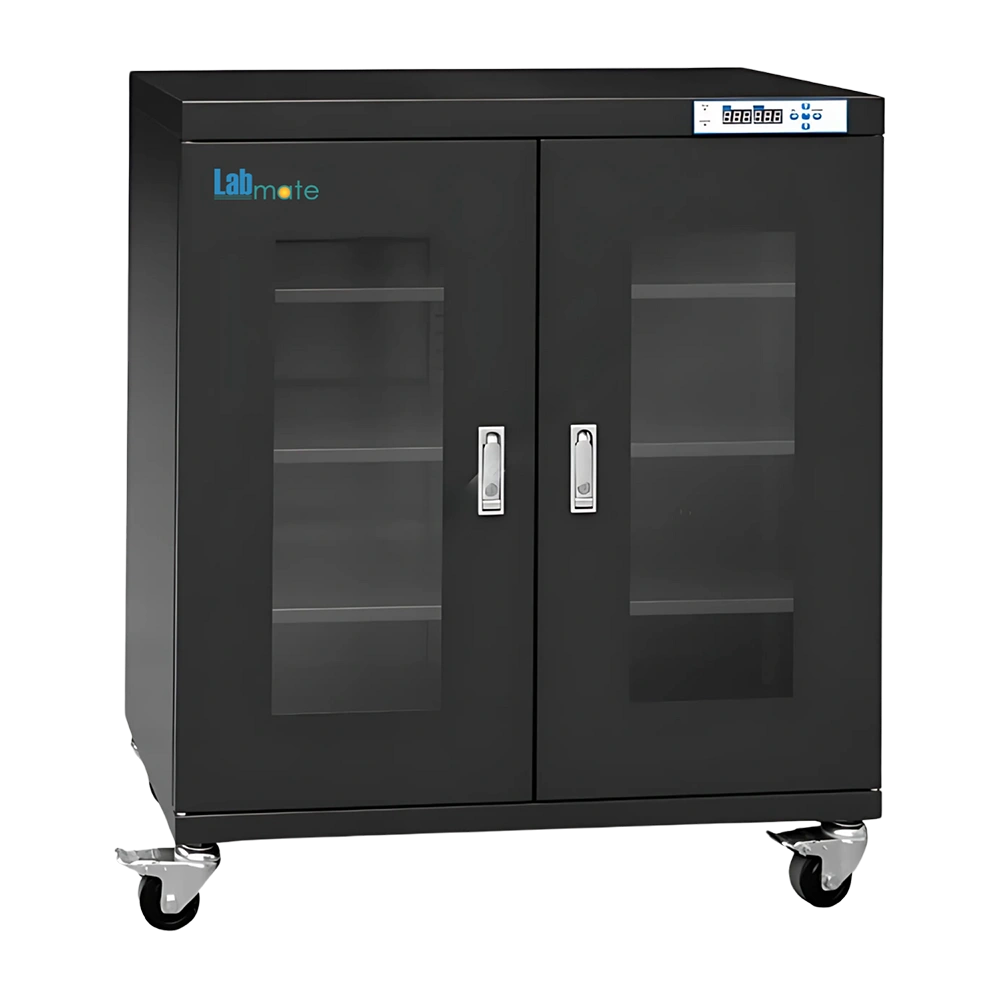

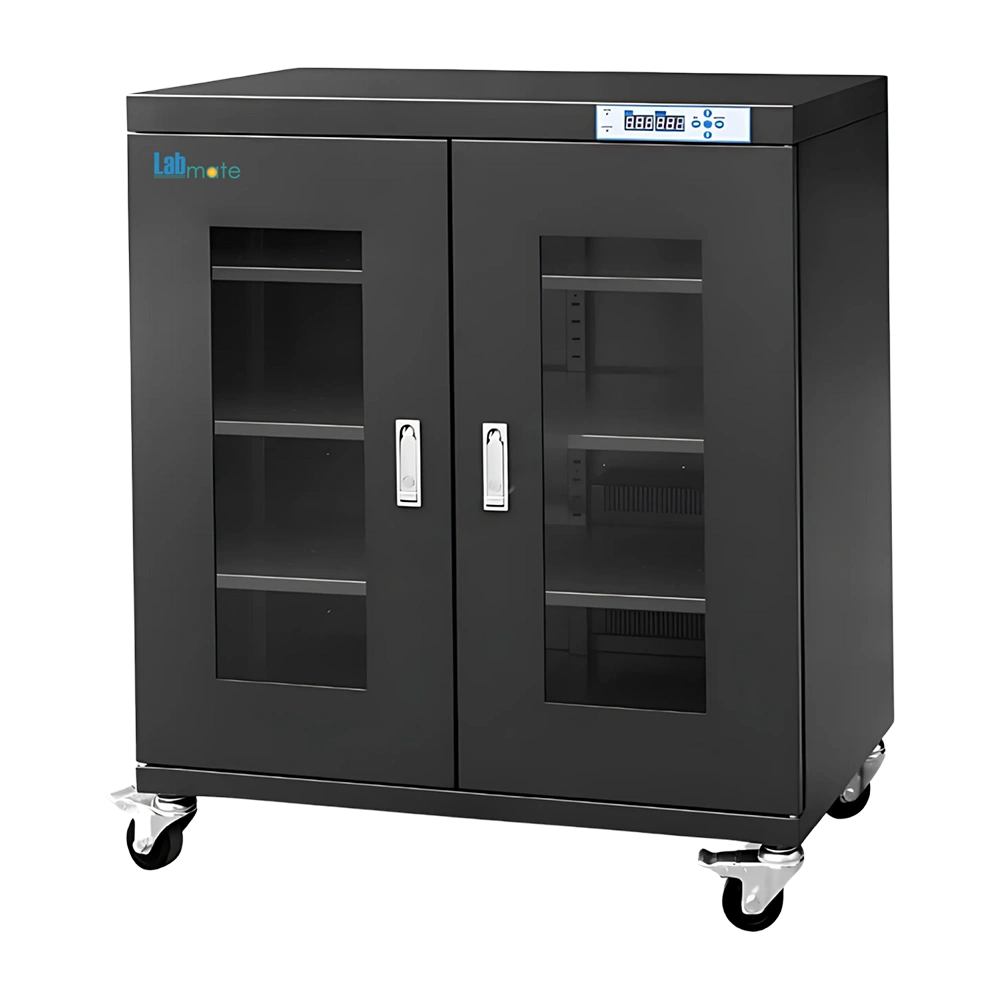

Desiccator Dry Cabinet LMDCC-C103 offers a 320 L chamber for efficient arrangement of various moisture-sensitive samples. It is designed to accommodate heavy items with a maximum loading capacity of 80 Kg. Integrated with 2 front-access doors to facilitate easy access and organized sample handling while minimizing external exposure. Equipped with flat-zinc security lock that helps to maintain security and restricted access. Our Desiccator Dry Cabinet features an LED display for real-time monitoring of interior conditions.
Specifications
| Storage Capacity | 320 L |
| Humidity Range | Less than 10% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 3 |
| Door Quantity | 2 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 8 W |
| Maximum Load Per Shelf | 80 Kg |
| Interior Dimension (W×D×H) | 898 × 422 × 848 mm |
| Exterior Dimension(W×D×H) | 900 × 450 × 1010 mm |
| Net Weight | 54 Kg |
| Gross Weight | 70 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Desiccator Dry Cabinet LMDCC-C103 | $ 3120 | Each of 1 |
Features
Durable Galvanized Steel Construction
ESD Safe Black Exterior
Polyurethane Wheels With Brakes
Low Power Consumption
Modular Perforated Shelves
Optional Accessories
| Model no. | Accessory |
| LMDCC-C103-A1 | Over Humidity Buzzer Alarm |
| LMDCC-C103-A2 | Open Door Buzzer Alarm |
| LMDCC-C103-A3 | Three-Color Flashing Light Alarm |
| LMDCC-C103-D1 | Data Logging System With USB Interface |
| LMDCC-C103-S1 | Extra Shelf |
Applications
Desiccator Dry Cabinet LMDCC-C103 is suitable for safeguarding circuit assemblies, conductive tracks, and surface components from moisture damage in PCB manufacturing units.
Similar Products
$ 1987.5 / Each of 1
$ 6175 / Each of 1
$ 3250 / Each of 1
$ 3162.5 / Each of 1
$ 3475 / Each of 1
$ 3112.5 / Each of 1
$ 5275 / Each of 1
$ 3650 / Each of 1
$ 3068.75 / Each of 1
$ 8637.5 / Each of 1
$ 2100 / Each of 1
$ 3300 / Each of 1
$ 3675 / Each of 1
$ 3315 / Each of 1
$ 2762.5 / Each of 1
Frequently Asked Questions
1 What is a Desiccator Dry Cabinet?
A Desiccator Dry Cabinet is an apparatus designed to store items that are sensitive to moisture by providing dry and low-humidity environment.
2 How does Desiccator Dry Cabinet work?
It utilizes a combination of desiccants such as silica gel to absorb moisture from the air inside the cabinet thereby protecting moisture-sensitive items.
3 What is the difference between a Desiccator Dry Cabinet and a regular Dry Cabinet?
A Desiccator Dry Cabinet maintains very low humidity that ensures consistent environment for moisture-sensitive items whereas a regular Dry Cabinet does not provide controlled humidity system.
4 Can Desiccator Dry Cabinet be used to store items at very low temperatures?
It is engineered to store items at room temperature or moderate temperature.
