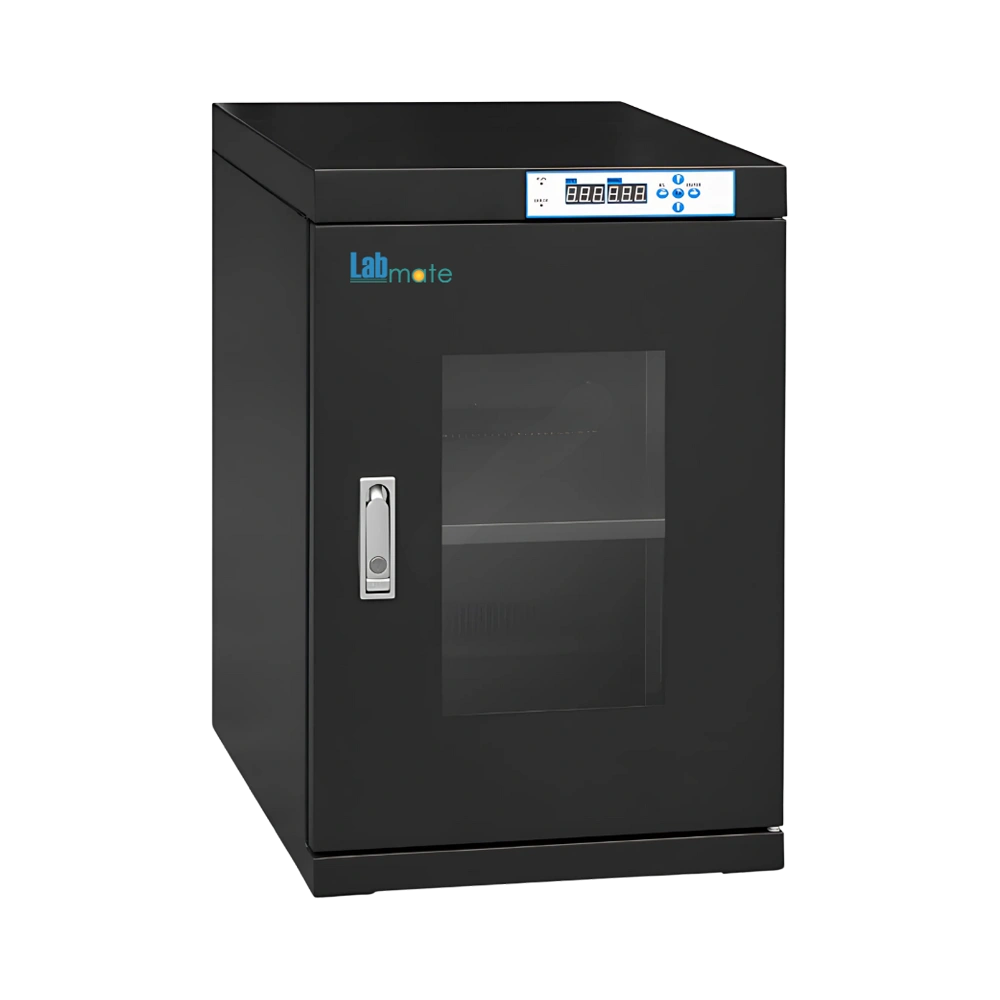

Desiccator Dry Cabinet LMDCC-D100 offers a 98 L chamber for preserving moisture and charge-sensitive materials. Incorporated with maintaining ultra-low humidity below 5% RH to shield components from environmental exposure. Equipped with a sturdy, height-adjustable shelf that enables structured arrangement of samples. Built with an ESD-safe matte black exterior to reduce the risk of static accumulation. Our Desiccator Dry Cabinet features a LED display for clear, real-time monitoring of internal conditions.
Specifications
| Storage Capacity | 98 L |
| Humidity Range | Less than 5% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 1 |
| Door Quantity | 1 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 8 W |
| Maximum Load Per Shelf | 50 Kg |
| Interior Dimension (W×D×H) | 446 × 372 × 598 mm |
| Exterior Dimension(W×D×H) | 448 × 400 × 688 mm |
| Net Weight | 20 Kg |
| Gross Weight | 31 Kg |
Features
Lockable Door
Galvanized Steel Body
Benchtop Design
Polyurethane Castors
Heavy Load Handling
Optional Accessories
| Model no. | Accessory |
| LMDCC-D100-A1 | Over Humidity Buzzer Alarm |
| LMDCC-D100-A2 | Open Door Buzzer Alarm |
| LMDCC-D100-A3 | Three-Color Flashing Light Alarm |
| LMDCC-D100-D1 | Data Logging System With USB Interface |
| LMDCC-D100-S1 | Extra Shelf |
Applications
Desiccator Dry Cabinet LMDCC-D100 is essential for protecting ICs, PCBs, semiconductors, and other electronic components from moisture exposure and electrostatic risks during storage.
Similar Products
Frequently Asked Questions
1 What is a Desiccator Dry Cabinet?
A Desiccator Dry Cabinet is an apparatus designed to store items that are sensitive to moisture by providing dry and low-humidity environment.
2 How does Desiccator Dry Cabinet work?
It utilizes a combination of desiccants such as silica gel to absorb moisture from the air inside the cabinet thereby protecting moisture-sensitive items.
3 What is the difference between a Desiccator Dry Cabinet and a regular Dry Cabinet?
A Desiccator Dry Cabinet maintains very low humidity that ensures consistent environment for moisture-sensitive items whereas a regular Dry Cabinet does not provide controlled humidity system.
4 Can Desiccator Dry Cabinet be used to store items at very low temperatures?
It is engineered to store items at room temperature or moderate temperature.
