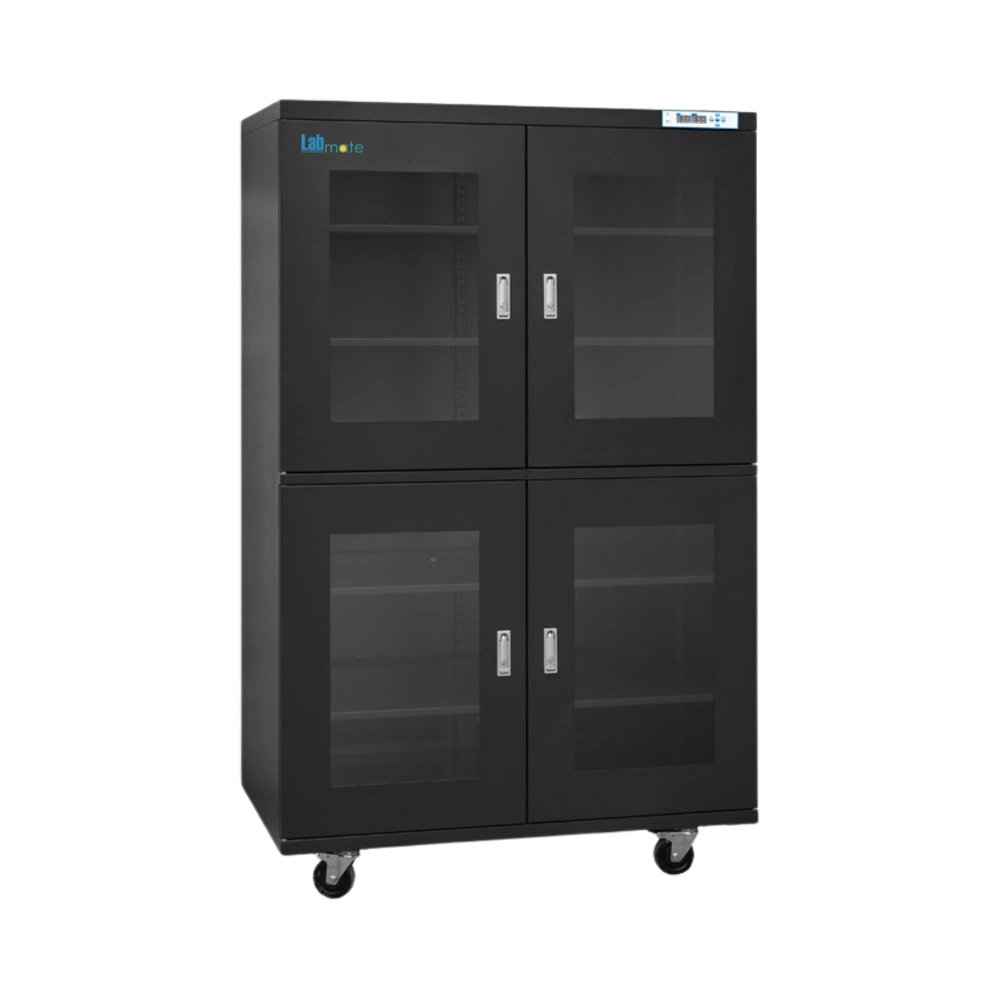

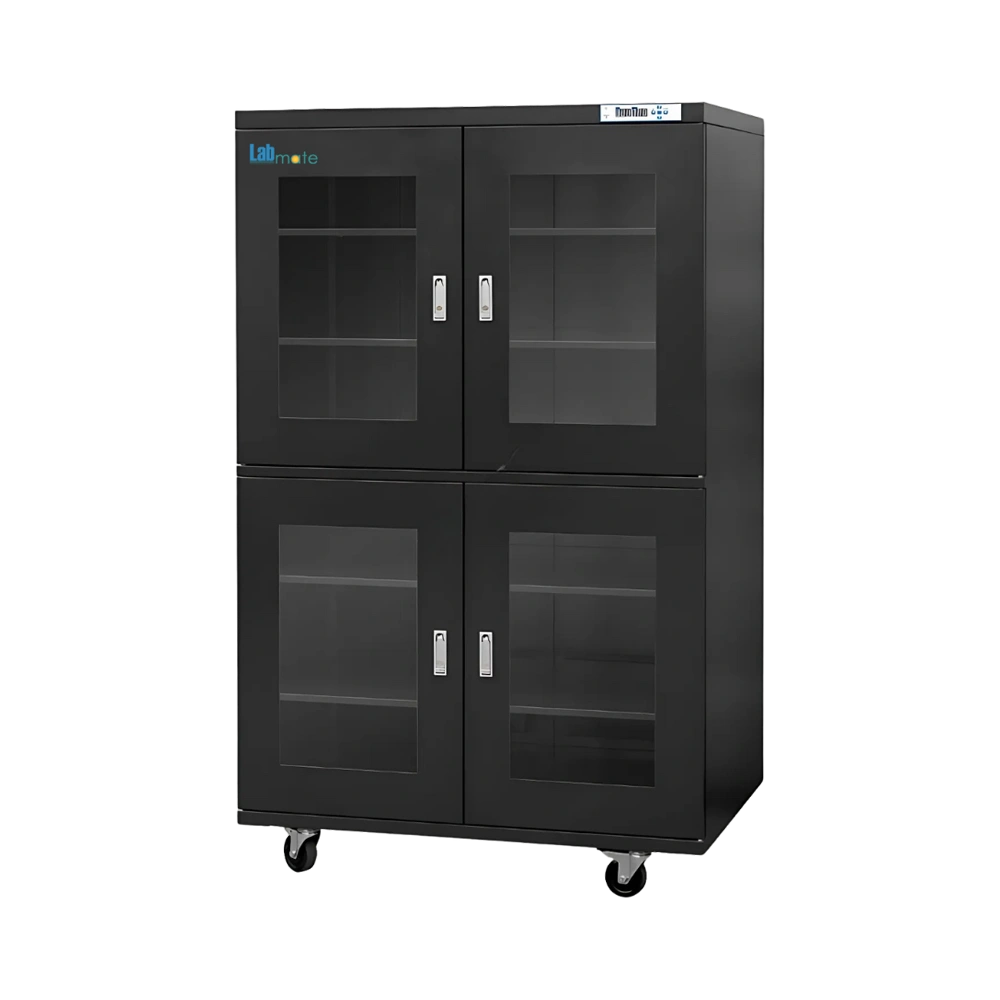

Desiccator Dry Cabinet LMDCC-A108 provides 1436 liters volume for storing moisture-sensitive materials in segregated batches. It features high intensity tempered glass for clear internal visibility. Integrated with LED display that shows real-time data on humidity levels. It offers surface resistance between 10⁶ to 10⁸ ohms, shielding electrostatically delicate components from damage. Our Desiccator Dry Cabinet is designed with black ESD-safe coating to prevent static charge accumulation on outer surfaces.
Specifications
| Storage Capacity | 1436 L |
| Humidity Range | 20% to 60% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 5 |
| Door Quantity | 4 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 25 W |
| Maximum Load Per Shelf | 100 Kg |
| Interior Dimension (W×D×H) | 1198 × 682 × 1723 mm |
| Exterior Dimension(W×D×H) | 1200 × 710 × 1910 mm |
| Net Weight | 144 Kg |
| Gross Weight | 189 Kg |
Features
4 Airtight Magnetic Seal Door
1.2 mm Galvanized Steel Body
LED Display
High Load-Bearing Capacity
Multi Shelves Configuration
Optional Accessories
| Model no. | Accessory |
| LMDCC-A108-A1 | Over Humidity Buzzer Alarm |
| LMDCC-A108-A2 | Open Door Buzzer Alarm |
| LMDCC-A108-A3 | Three-Color Flashing Light Alarm |
| LMDCC-A108-D1 | Data Logging System With USB Interface |
| LMDCC-A108-S1 | Extra Shelf |
Applications
Desiccator Dry Cabinet LMDCC-A108 is essential for shielding sensors, electronic modules, and connectors from moisture and static hazards in the automotive industry.
Similar Products
Frequently Asked Questions
1 What is a Desiccator Dry Cabinet?
A Desiccator Dry Cabinet is an apparatus designed to store items that are sensitive to moisture by providing dry and low-humidity environment.
2 How does Desiccator Dry Cabinet work?
It utilizes a combination of desiccants such as silica gel to absorb moisture from the air inside the cabinet thereby protecting moisture-sensitive items.
3 What is the difference between a Desiccator Dry Cabinet and a regular Dry Cabinet?
A Desiccator Dry Cabinet maintains very low humidity that ensures consistent environment for moisture-sensitive items whereas a regular Dry Cabinet does not provide controlled humidity system.
4 Can Desiccator Dry Cabinet be used to store items at very low temperatures?
It is engineered to store items at room temperature or moderate temperature.
