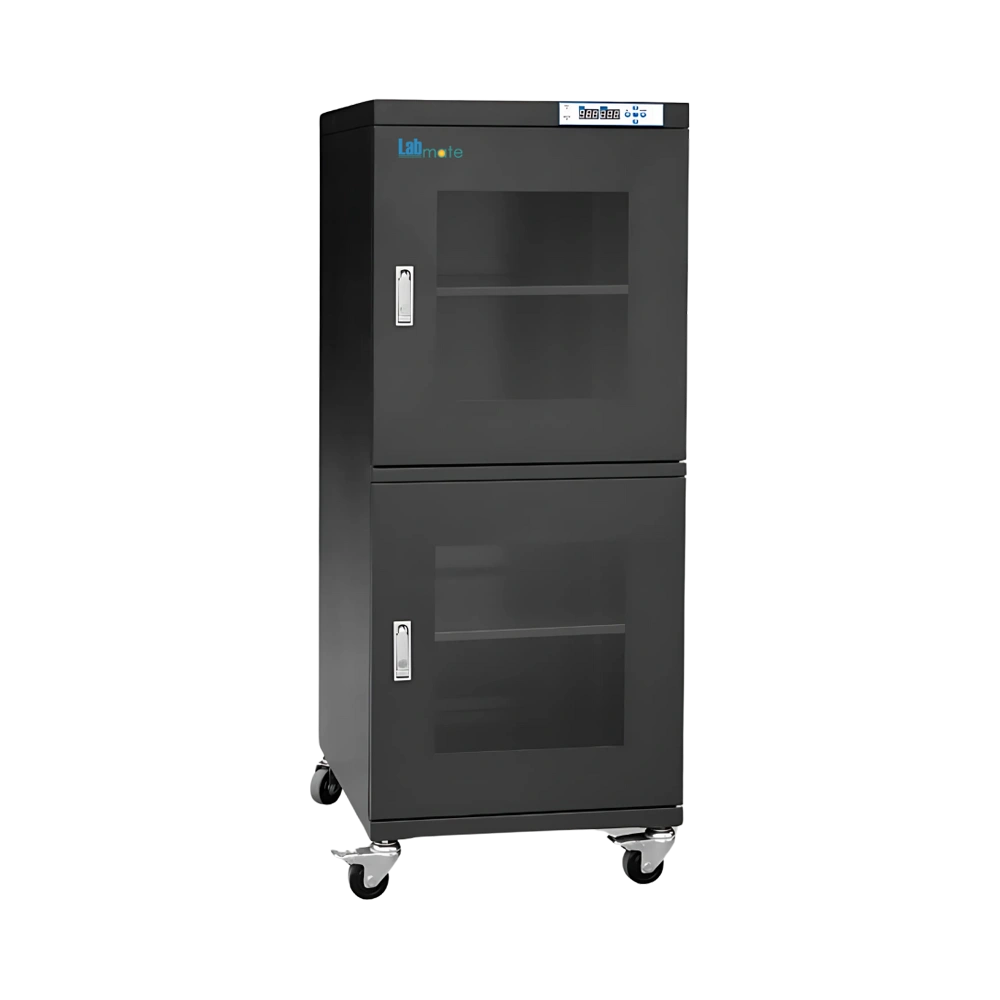

Desiccator Dry Cabinet LMDCC-E102 provides a generous 540L space for moisture-controlled material storage. Integrated with ESD-safe black exterior to prevent electrostatic charge buildup, providing additional safety for static-sensitive materials. It features dual magnetic doors ensuring quick access without disturbing internal conditions. It features flat Press zinc alloy lock with anti-theft function for reliable enclosure. Our Desiccator Dry Cabinet handles 80 kg heavy load without structural deformation.
Specifications
| Storage Capacity | 540 L |
| Humidity Range | Less than 3% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 3 |
| Door Quantity | 2 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 10 W |
| Maximum Load Per Shelf | 80 Kg |
| Interior Dimension (W×D×H) | 596 × 682 × 1298 mm |
| Exterior Dimension(W×D×H) | 598 × 710 × 1465 mm |
| Net Weight | 68 Kg |
| Gross Weight | 95 Kg |
Features
Ultra-Low Humidity Control
Tempered Glass Window
3 Perforated Shelves
Smooth-Glide PU Wheels
High Surface Resistance
Optional Accessories
| Model no. | Accessory |
| LMDCC-E102-A1 | Over Humidity Buzzer Alarm |
| LMDCC-E102-A2 | Open Door Buzzer Alarm |
| LMDCC-E102-A3 | Three-Color Flashing Light Alarm |
| LMDCC-E102-D1 | Data Logging System With USB Interface |
| LMDCC-E102-S1 | Extra Shelf |
Applications
Desiccator Dry Cabinet LMDCC-E102 is suitable for storing advanced ceramic substrates, protecting them from moisture-related cracking, warping, and degradation in electronic and aerospace environments.
Similar Products
Frequently Asked Questions
1 What is a Desiccator Dry Cabinet?
A Desiccator Dry Cabinet is an apparatus designed to store items that are sensitive to moisture by providing dry and low-humidity environment.
2 How does Desiccator Dry Cabinet work?
It utilizes a combination of desiccants such as silica gel to absorb moisture from the air inside the cabinet thereby protecting moisture-sensitive items.
3 What is the difference between a Desiccator Dry Cabinet and a regular Dry Cabinet?
A Desiccator Dry Cabinet maintains very low humidity that ensures consistent environment for moisture-sensitive items whereas a regular Dry Cabinet does not provide controlled humidity system.
4 Can Desiccator Dry Cabinet be used to store items at very low temperatures?
It is engineered to store items at room temperature or moderate temperature.
