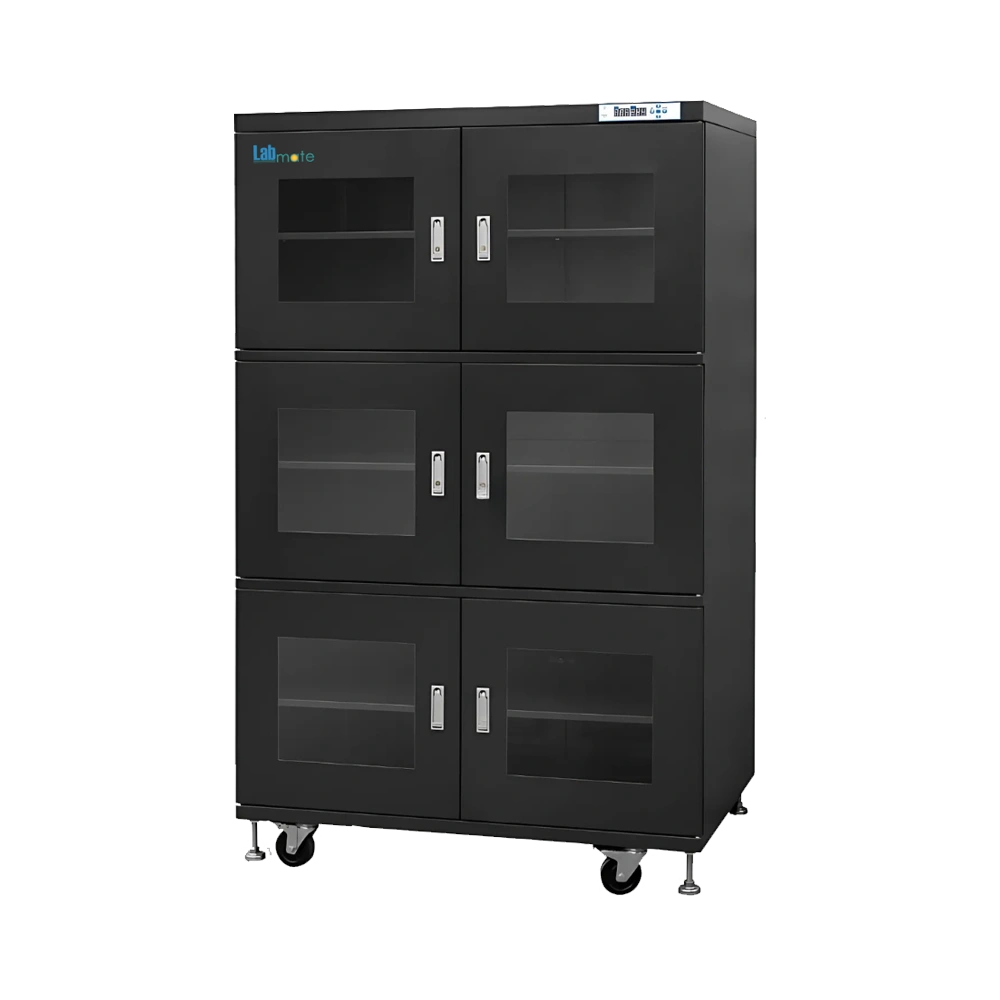

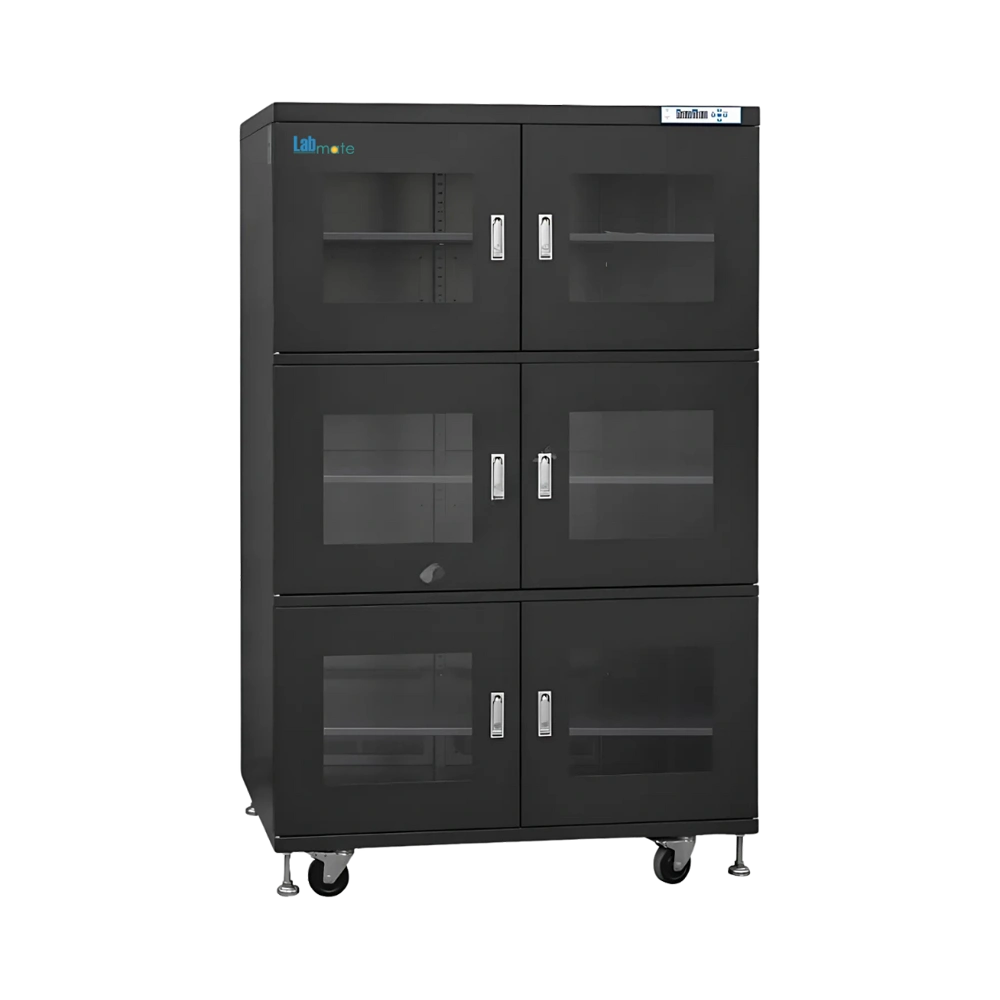

Desiccator Dry Cabinet LMDCC-D109 offers a 1436 L volume for storing large batches of electronic parts. Built from durable 1.2 mm galvanized steel with anti-static powder spray coating, ensures corrosion resistance. Integrated with 6 door configuration allows compartmentalized access, minimizing moisture loss during openings. Equipped with transparent windows allow easy visual inspection of stored contents without open the chamber. Our Desiccator Dry Cabinet includes an LED display for real-time humidity tracking and efficient condition monitoring.
Specifications
| Storage Capacity | 1436 L |
| Humidity Range | Less than 5% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 5 |
| Door Quantity | 6 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 25 W |
| Maximum Load Per Shelf | 100 Kg |
| Interior Dimension (W×D×H) | 1198 × 682 × 1723 mm |
| Exterior Dimension(W×D×H) | 1200 × 710 × 1910 mm |
| Net Weight | 144 Kg |
| Gross Weight | 189 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Desiccator Dry Cabinet LMDCC-D109 | $ 6275 | Each of 1 |
Features
5 Perforated Shelves
Black ESD-Safe Exterior
PU Wheels
LED Display Panel
Heavy Load Capacity
Optional Accessories
| Model no. | Accessory |
| LMDCC-D109-A1 | Over Humidity Buzzer Alarm |
| LMDCC-D109-A2 | Open Door Buzzer Alarm |
| LMDCC-D109-A3 | Three-Color Flashing Light Alarm |
| LMDCC-D109-D1 | Data Logging System With USB Interface |
| LMDCC-D109-S1 | Extra Shelf |
Applications
Desiccator Dry Cabinet LMDCC-D109 offers a low-humidity environment ideal for storing ceramics, silicon wafers, and IC packages, protecting them from oxidation, contamination, and electrostatic damage.
Similar Products
$ 8415 / Each of 1
$ 2587.5 / Each of 1
$ 5212.5 / Each of 1
$ 3675 / Each of 1
$ 2881.25 / Each of 1
$ 3112.5 / Each of 1
$ 8637.5 / Each of 1
$ 6150 / Each of 1
$ 2412.5 / Each of 1
$ 3087.5 / Each of 1
$ 2112.5 / Each of 1
$ 2300 / Each of 1
$ 3162.5 / Each of 1
$ 4675 / Each of 1
$ 3185 / Each of 1
Frequently Asked Questions
1 What is a Desiccator Dry Cabinet?
A Desiccator Dry Cabinet is an apparatus designed to store items that are sensitive to moisture by providing dry and low-humidity environment.
2 How does Desiccator Dry Cabinet work?
It utilizes a combination of desiccants such as silica gel to absorb moisture from the air inside the cabinet thereby protecting moisture-sensitive items.
3 What is the difference between a Desiccator Dry Cabinet and a regular Dry Cabinet?
A Desiccator Dry Cabinet maintains very low humidity that ensures consistent environment for moisture-sensitive items whereas a regular Dry Cabinet does not provide controlled humidity system.
4 Can Desiccator Dry Cabinet be used to store items at very low temperatures?
It is engineered to store items at room temperature or moderate temperature.
