Get Quote
Contact us now to receive a detailed quotation.

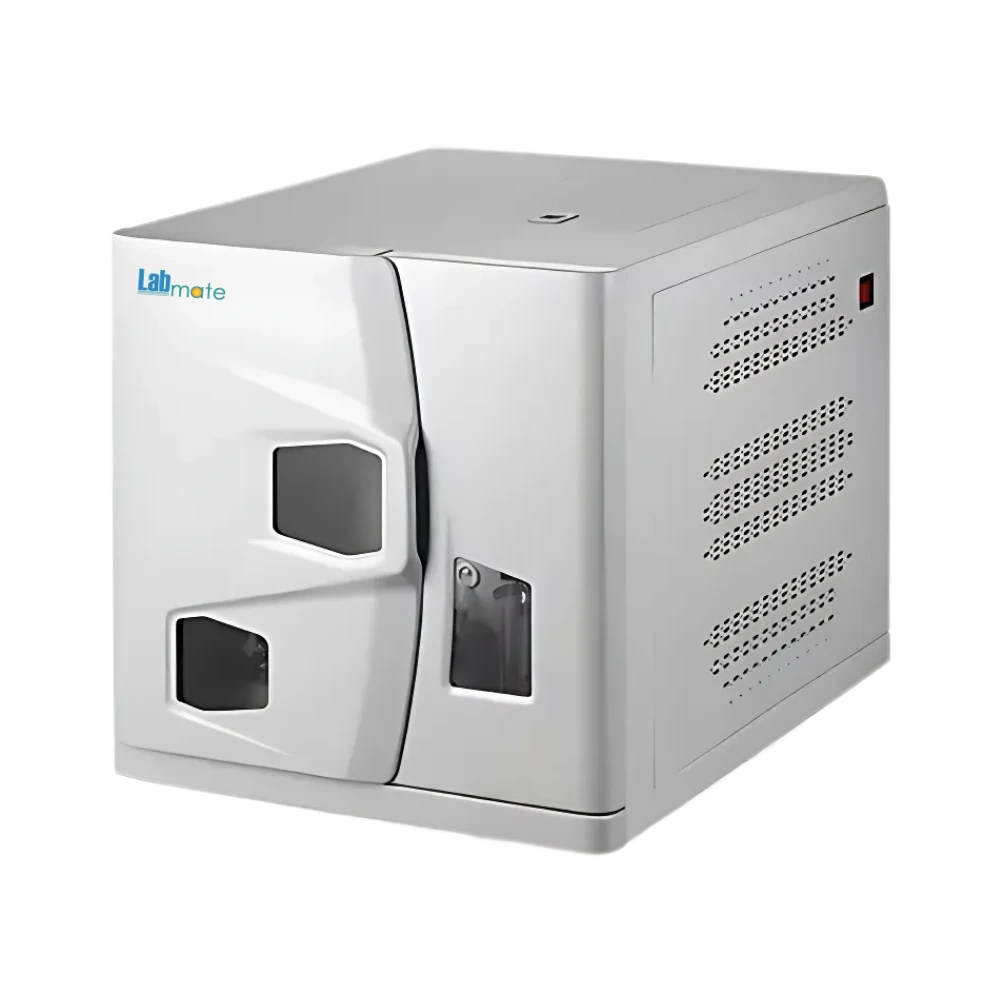

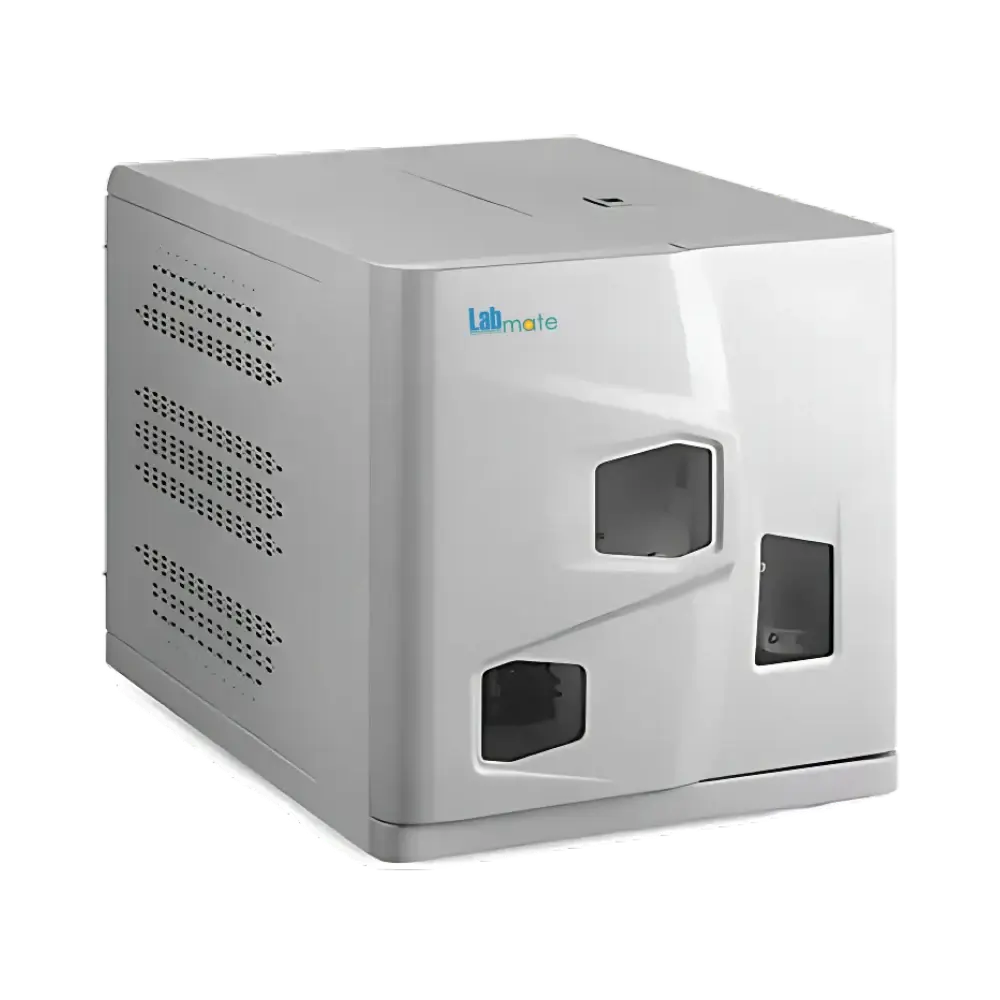

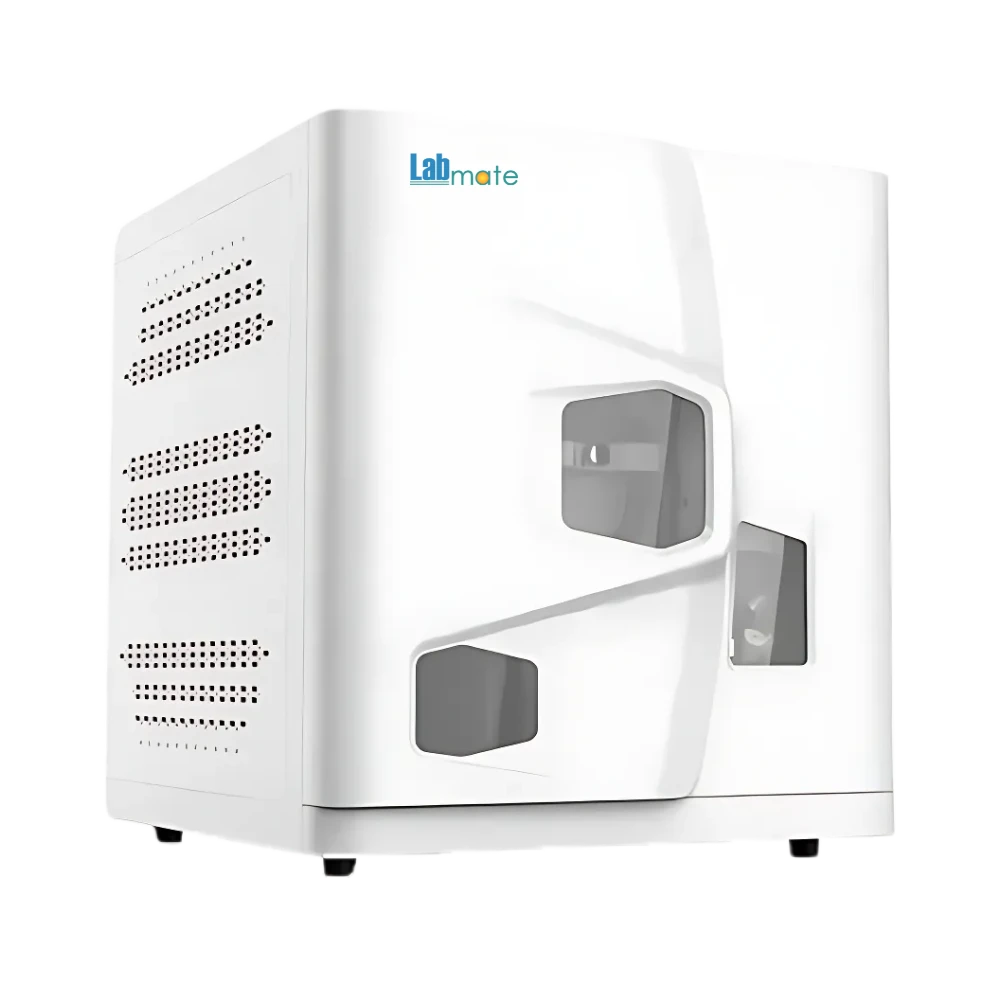

TOC Analyzer LMTOC-B104 offers automatic sample dilution and 0 to 1000 mg/L measurement range. It features 680°C catalytic oxidation with platinum catalyst for reliable measurement. Equipped with three-stage dehydration system, it enhances moisture removal and improves final gas drying. Incorporates standard curve management that simplifies calibration and enhances convenience. Our Analyzer is ideal for TOC measurement in seawater, pharma, industrial, and environmental samples.
Specifications
| Measurement Range | 0 to 1000 mg/L, can extend to 0 to 100,000mg/L |
| Measurement Method | High Temperature Catalytic Combustion |
| Detector | NDIR |
| Detection Limit | IC: 20μg/L |
| Analysis Parameter | TC, TIC, TOC, NPOC |
| Control Mode | PC software Control |
| Gas Requirement | Oxygen, purity greater than equal to 99.995% |
| Sample Type | Solid Sample |
| Dilution Method | Automatic |
| Measuring Time | IC: 3min |
| Maximum Permissible Error | IC: ± 4% |
| Repeatability | Less than or equal to 3% |
| Injection Volume | IC: 100 to 2000μL |
| Power Consumption | 700W |
| Power Supply | AC110/220V, 50/60Hz |
| Dimension | 450×500×480 mm |
| Packing Dimension | 780×710×610 mm |
| Net Weight | 46 Kg |
| Gross Weight | 66 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| TOC Analyzer LMTOC-B104 | $ 26250 | Each of 1 |
Features
Multi-functional software
PID temperature control
Consumables alert
Modular design
High sensitivity
Simplified operation
Optional Accessories
Model No. | Accessory Name |

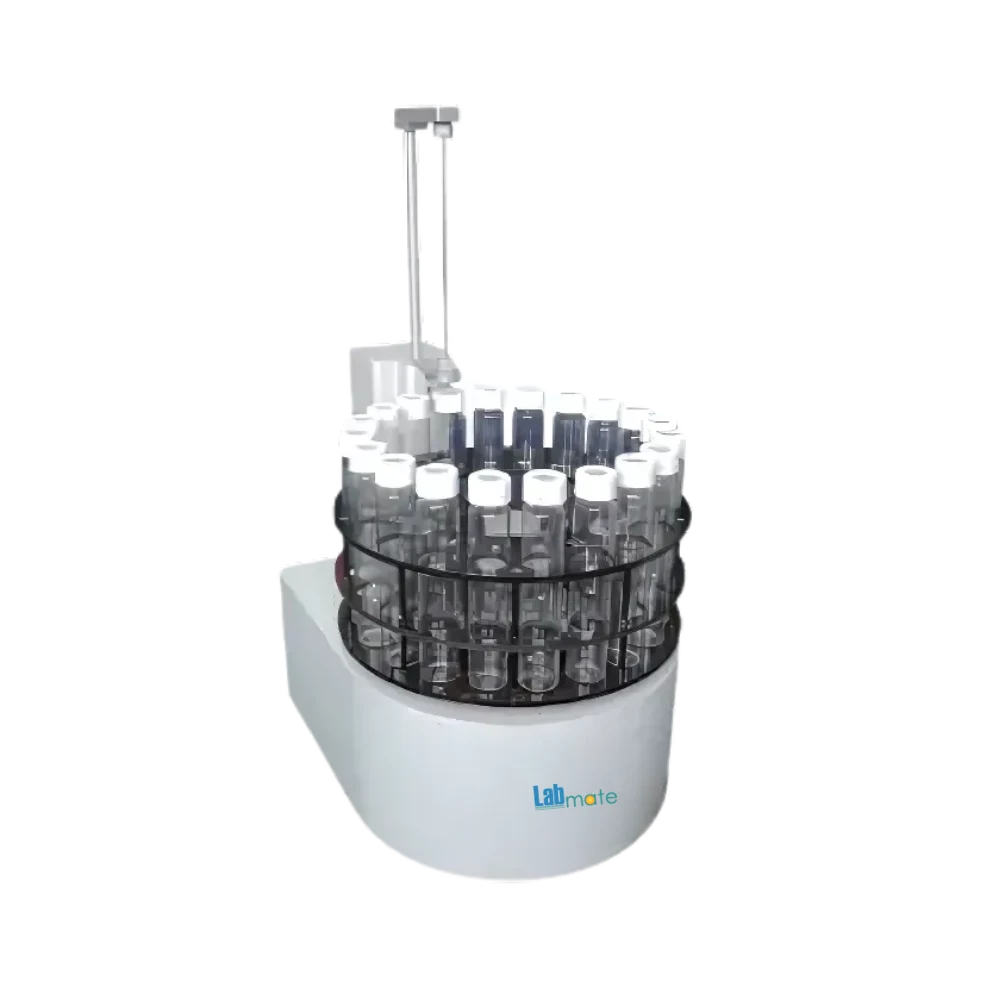

LMTOC-B104-A1 | Autosampler (Liquid) |

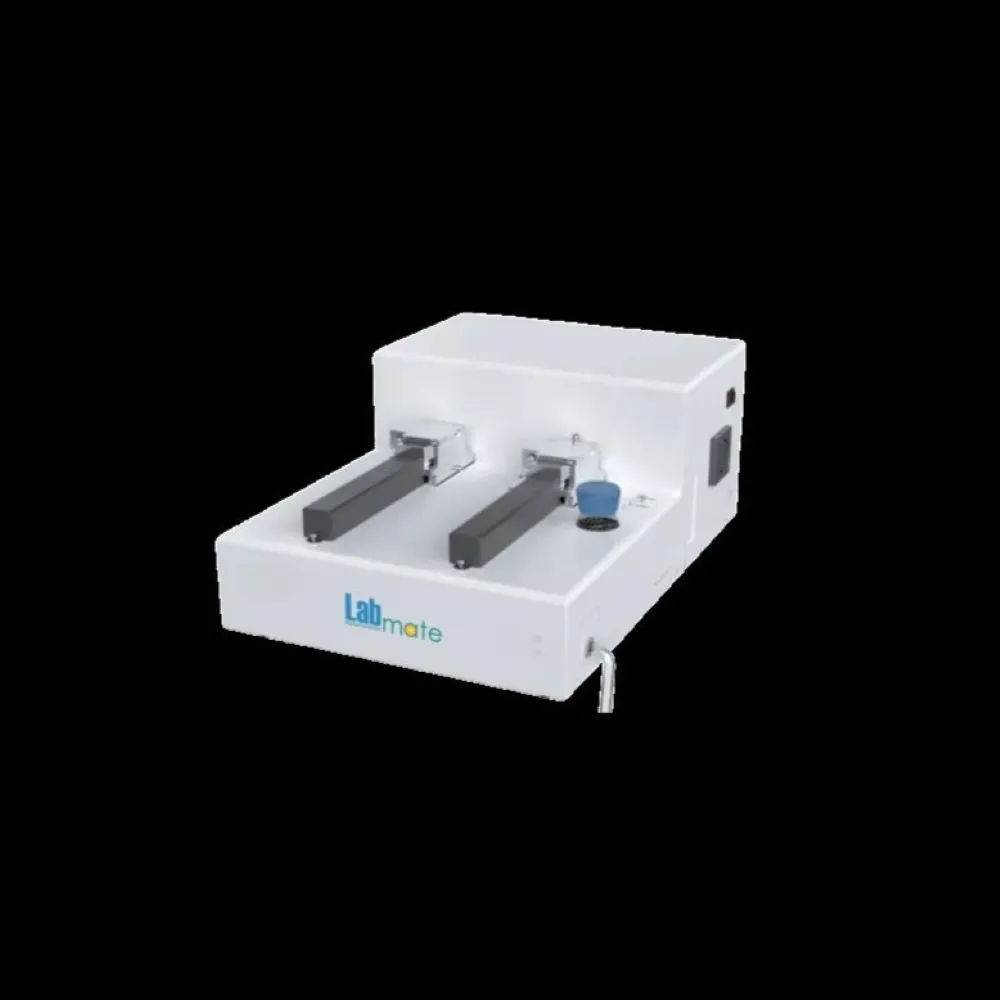

LMTOC-B104-A2 | Autosampler (Solid) |
Applications
TOC Analyzer LMTOC-B104 is ideal for measuring TOC in seawater, pharmaceutical-grade water, industrial wastewater, and environmental samples to ensure compliance, process control, and high-purity water quality assurance.
No. of sample positions- 19, Volume of Sample Bottle- 60mL
Measurement Range- 0.1 to 30.0mg , Measurement Time- 5 to 8min
Similar Products
$ 21000 / Each of 1
$ 26625 / Pack of 1
$ 14000 / Each of 1
$ 21000 / Each of 1
$ 18912.5 / Pack of 1
$ 14875 / Each of 1
Frequently Asked Questions
1 What is a TOC Analyzer?
A TOC Analyzer is an apparatus designed to analyze the organic carbon content in water or other liquid samples.
2 How does a TOC Analyzer work?
It operate by oxidizing organic carbon in sample to carbon dioxide, which is then measured to determine the total organic carbon content.
3 What types of samples can be analyzed using TOC Analyzer?
It is used to analyze a wide variety of samples such as drinking water, wastewater pharmaceutical water, environmental water, food and beverage samples.
4 How is calibration done in case of TOC Analyzer?
Calibration is done using standard solutions of known organic carbon content in order to ensure that the analyzer is providing accurate readings.
5 What kind of maintenance does TOC Analyzer require?
Regular maintenance includes proper cleaning of the apparatus, replacing consumables like filters, reagents or electrodes and performing regular calibration.
6 Can TOC Analyzer test both tap water and river water?
It can test both tap water and river water to measure the amount of organic carbon in each sample.
7 What is the difference between a TOC Analyzer and a UV-Vis Spectrophotometer?
A TOC Analyzer measures organic carbon content directly whereas a UV-Vis Spectrophotometer analyzes light absorption to identify the concentration of various compounds.
8 Can TOC Analyzer be used for both raw and treated water?
It is used to measure organic carbon in both raw and treated water thereby helping in assessing the effectiveness of water treatment process.
9 Is TOC Analyzer affected by temperature?
Temperature fluctuations affect the accuracy of TOC Analyzer results.
10 What is the difference between a TOC Analyzer and a COD Analyzer?
A TOC Analyzer measures the total organic carbon, whereas a COD Analyzer measures the oxygen demand required to oxidize both organic and inorganic contaminants in water.
