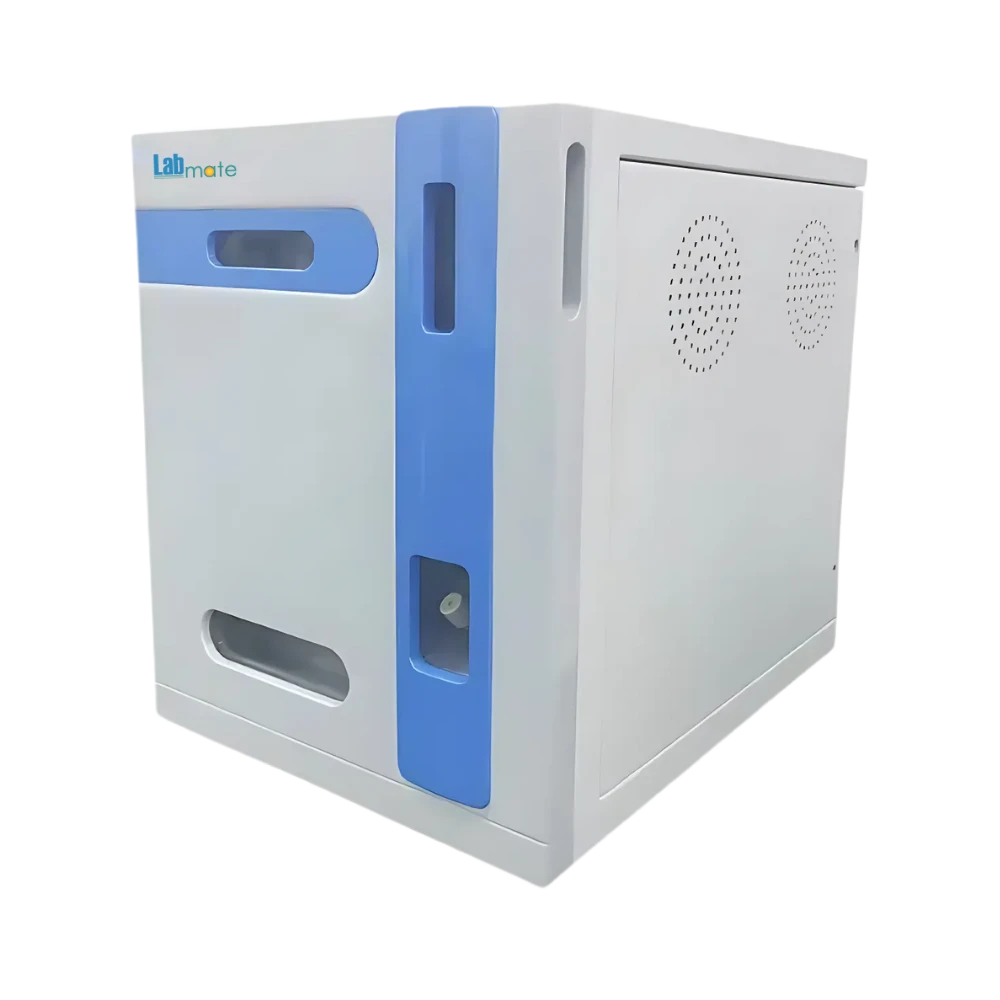

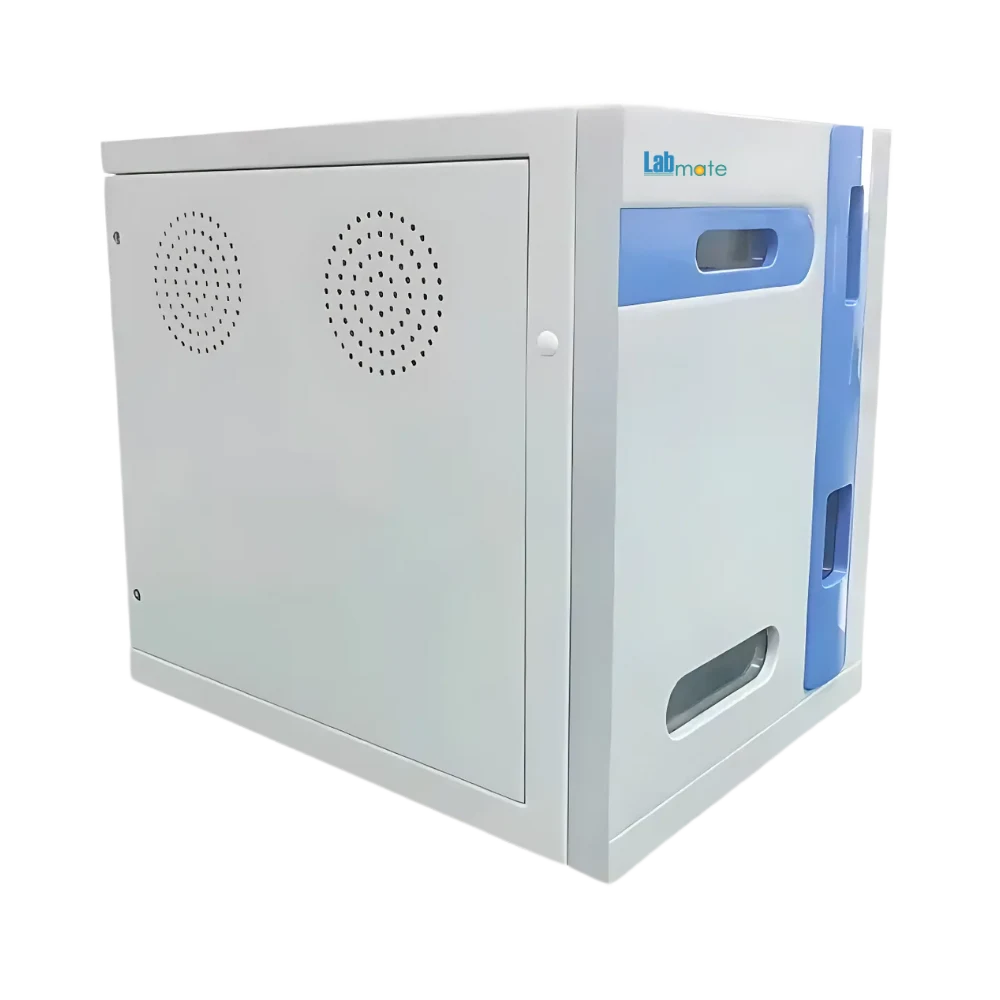

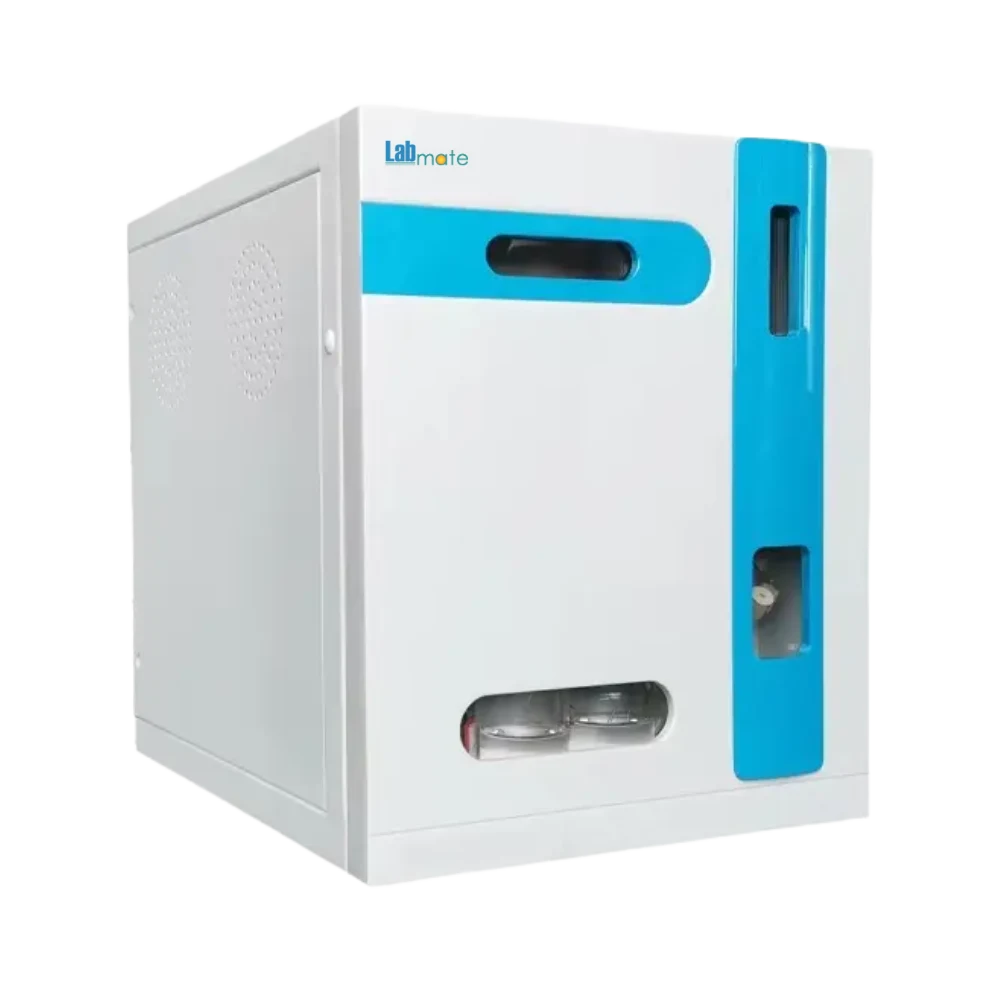

TOC Analyzer LMTOC-B102 is designed with measurement range 0 to 10000 mg/L. It features an NDIR detector that delivers high sensitivity and stable performance. Equipped with multi-functional PC software, it enables real-time control, analysis, and efficient data management. Incorporates gas flow control technology to ensure consistent and reliable measurement output. Our Analyzer is ideal for TOC detection in pharma, environmental, and industrial water.
Specifications
| Measurement Range | 0 to 10000 mg/L (ppm) |
| Measurement Method | Wet Chemical Oxidation by UV |
| Detector | NDIR |
| Detection Limit | 5μg/L (ppb) |
| Analysis Parameter | TC, TIC, TOC, NPOC |
| Control Mode | PC Control |
| Gas Requirement | Nitrogen, purity greater than equal to 99.995% |
| Sample Type | Liquid Sample |
| Repeatability | 3% |
| Maximum Salinity | 85g/L |
| Power Consumption | 200W |
| Power Supply | AC110/220V, 50/60Hz |
| Dimension | 430×460×440 mm |
| Weight | 25 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| TOC Analyzer LMTOC-B102 | $ 21000 | Each of 1 |
Features
Leakage detection
Front panel display
Sample injection port
Status indicators
Rear ventilation
Continuous operation
Optional Accessories
Model No. | Accessory Name |

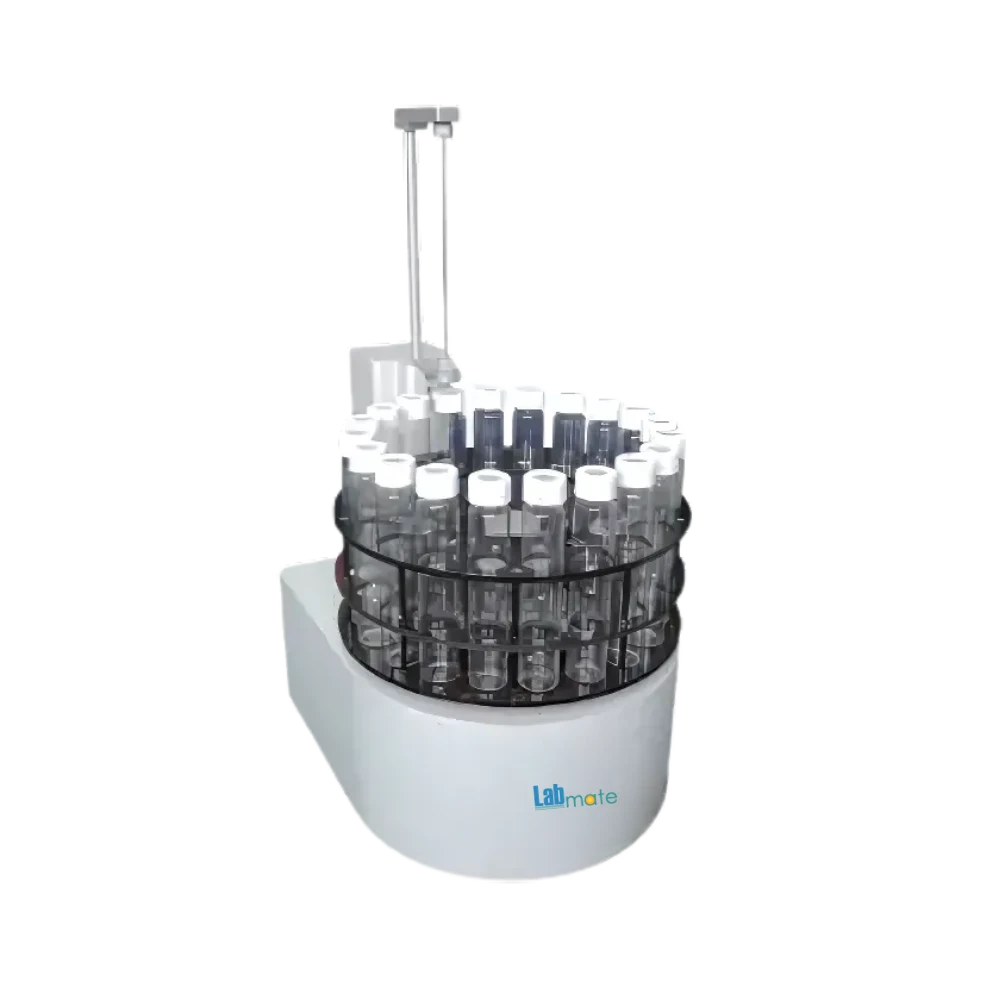

LMTOC-B102-A1 | Autosampler |
Applications
TOC Analyzer LMTOC-B102 is ideal for detecting Total Organic Carbon in environmental monitoring, pharmaceutical water, and industrial process control systems.
No. of sample positions- 19 , Volume of Sample Bottle- 60mL
Similar Products
$ 21000 / Each of 1
$ 26625 / Pack of 1
$ 14000 / Each of 1
$ 14875 / Each of 1
$ 26250 / Each of 1
$ 18912.5 / Pack of 1
Frequently Asked Questions
1 What is a TOC Analyzer?
A TOC Analyzer is an apparatus designed to analyze the organic carbon content in water or other liquid samples.
2 How does a TOC Analyzer work?
It operate by oxidizing organic carbon in sample to carbon dioxide, which is then measured to determine the total organic carbon content.
3 What types of samples can be analyzed using TOC Analyzer?
It is used to analyze a wide variety of samples such as drinking water, wastewater pharmaceutical water, environmental water, food and beverage samples.
4 How is calibration done in case of TOC Analyzer?
Calibration is done using standard solutions of known organic carbon content in order to ensure that the analyzer is providing accurate readings.
5 What kind of maintenance does TOC Analyzer require?
Regular maintenance includes proper cleaning of the apparatus, replacing consumables like filters, reagents or electrodes and performing regular calibration.
6 Can TOC Analyzer test both tap water and river water?
It can test both tap water and river water to measure the amount of organic carbon in each sample.
7 What is the difference between a TOC Analyzer and a UV-Vis Spectrophotometer?
A TOC Analyzer measures organic carbon content directly whereas a UV-Vis Spectrophotometer analyzes light absorption to identify the concentration of various compounds.
8 Can TOC Analyzer be used for both raw and treated water?
It is used to measure organic carbon in both raw and treated water thereby helping in assessing the effectiveness of water treatment process.
9 Is TOC Analyzer affected by temperature?
Temperature fluctuations affect the accuracy of TOC Analyzer results.
10 What is the difference between a TOC Analyzer and a COD Analyzer?
A TOC Analyzer measures the total organic carbon, whereas a COD Analyzer measures the oxygen demand required to oxidize both organic and inorganic contaminants in water.
