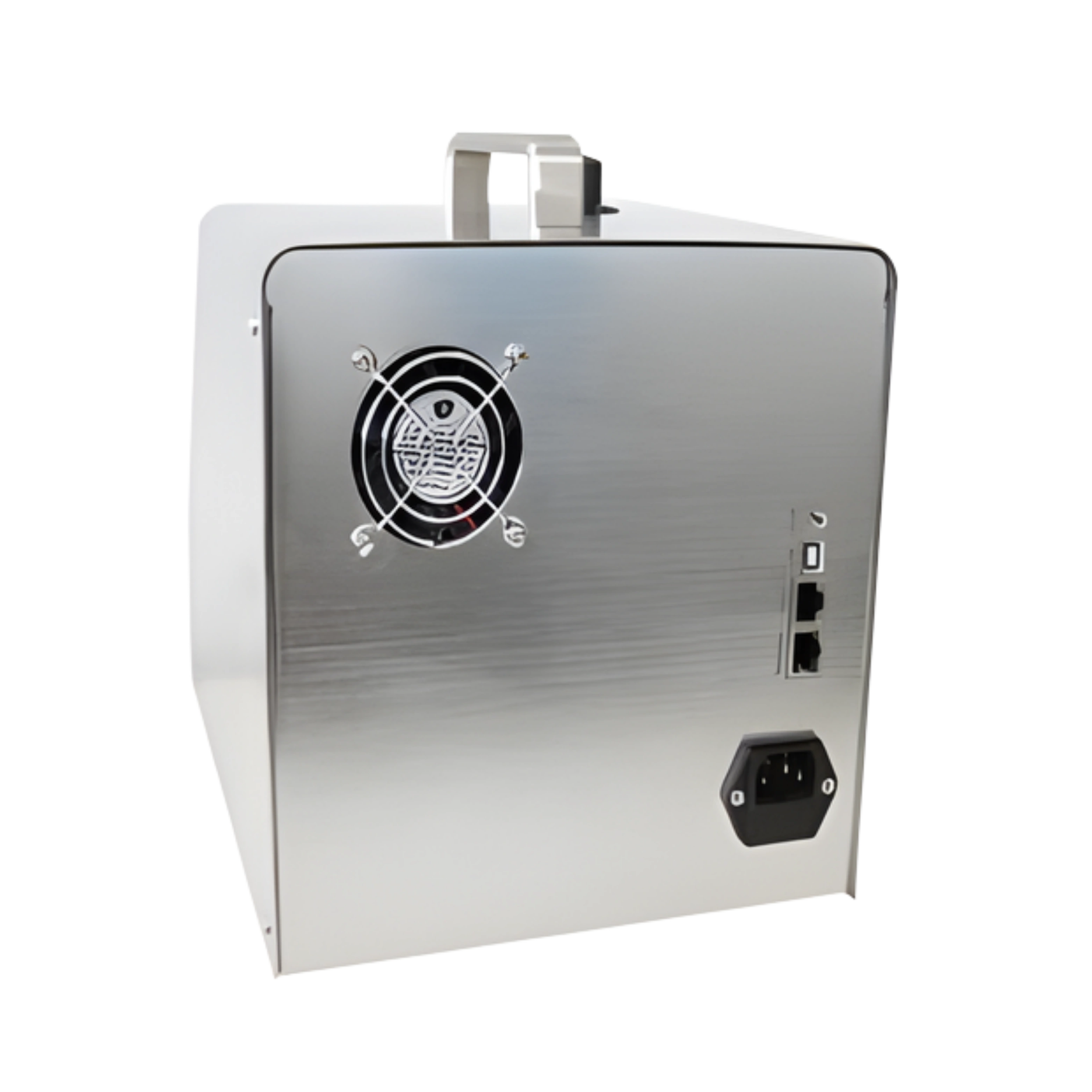

Portable Airborne Particle Counter LMAP-B101 is a stand-alone instrument that includes eight channel ranges for improved air quality detection. Accurately measures airborne particles and It is a perfect device for cleanroom service. Count the particles across eight distinct size ranges. 0.3µm, 0.5 µm, 0.7 µm, 1.0 µm, 2.0 µm, 3.0 µm, 5.0 µm, 10.0 µm. It also offers user-defined particle count limits, providing flexibility to the end user. Furthermore, the particle count data can be easily displayed on the screen, downloaded, or printed directly using the built-in printer with the help of multiple printing modes.
Specifications
| Particle Size Channels | 0.3µm, 0.5 µm, 0.7 µm, 1.0 µm, 2.0 µm, 3.0 µm, 5.0 µm, 10.0 µm |
| Flow Rate | 50L/min |
| Built-in Battery | yes |
| Battery Type | Lithium-ion(Optional) |
| Battery Life | >4 hours of continuous use |
| Sensitivity | 0.3 µm |
| Test Period | 1 sec to 3599 sec (5 L to 3000L |
| Light Source | Laser diode |
| Self-cleaning Time | ≤10 min |
| Operating Temperature Range | 10℃ to 35℃ |
| Operational Humidity | ≤ 75% RH |
| Max. Permissible Sampling Concentration | 35,000 pcs/L |
| Power | 220 V ± 10 %, 50 Hz ± 2 Hz |
| Power Dissipation | 145 W |
| Communication Interface | RS485 |
| Dimensions | 220 × 285 × 260 mm |
| Weight | 9 kgs |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Portable Airborne Particle Counter LMAP-B101 |
Features
7-inch color touch screen for displaying particle count of all channels
Utilizes laser sensor technology for precise particle detection
Generous data storage capacity for up to 5,000 samples
Rapidly samples a cubic meter of air in less than 20 minutes
Allows for easy data conversion between ft³ and m³
Includes an Upper Control Limit (UCL) calculation feature
Equipped with a built-in thermal printer for on-the-spot documentation
Enables seamless data export via Wi-Fi connectivity
Housed in a robust stainless-steel casing for durability and longevity
Standard Accessories
Carrying Case 1Quantity Power cord 1Quantity Tripod 1Quantity Printing paper 1Quantity Fuse 1Quantity Filter 1Quantity
Optional Accessories
Li-battery 1Quantity
Applications
This device is versatile and finds application in clean room monitoring, indoor air quality testing, HEPA filter performance assessment, particle source tracking, and monitoring biosafety cabinets, clean benches, computer rooms, and HVAC system performance evaluation.
Selection Guide
Portable Airborne Particle Counter LMAP-B101 is suitable for cleanroom validation, pharmaceutical R&D, environmental monitoring, and aerosol research where accurate detection of particles ≥0.3 µm is essential. Its portability, built-in data logging, and compliance with ISO and GMP standards make it suitable for on-site inspections, HVAC testing, and lab-based filter validation. Researchers in fields like semiconductor manufacturing, hospital air quality monitoring, and general air cleanliness studies will benefit from its accurate readings and user-friendly interface. This is not exclusive to these uses; customers can select it based on their specific needs and have the option to modify it to suit various research or operational requirements.
Similar Products
$ 3250 / Each of 1
$ 12700 / Pack of 1
$ 4925 / Pack of 1
$ 13225 / Pack of 1
$ 4575 / Pack of 1
$ 7900 / Pack of 1
Frequently Asked Questions
1 What is a Portable Airborne Particle Counter LMAP-B101?
A Portable Airborne Particle Counter LMAP-B101 is a handheld device that measures and counts airborne particles of various sizes to assess air quality in controlled environments.
2 How does a Portable Airborne Particle Counter LMAP-B101 work?
A Portable Airborne Particle Counter LMAP-B101 operates on the principle of laser light scattering to detect and count airborne particles.
3 Is Portable Airborne Particle Counter LMAP-B101 suitable for HVAC system testing?
Portable Airborne Particle Counter LMAP-B101 helps assess the efficiency of HVAC filters by measuring airborne particles.
4 Can Portable Airborne Particle Counter LMAP-B101 be used in pharmaceutical manufacturing areas?
Portable Airborne Particle Counter LMAP-B101 supports compliance with air cleanliness standards in pharmaceutical production.
5 Does Portable Airborne Particle Counter LMAP-B101 help monitor biosafety cabinets?
Portable Airborne Particle Counter LMAP-B101 accurately measures particle concentration inside biosafety cabinets.
6 Is Portable Airborne Particle Counter LMAP-B101 useful for indoor air quality assessments?
Portable Airborne Particle Counter LMAP-B101 measures airborne particles to evaluate overall indoor air quality.
7 Is Portable Airborne Particle Counter LMAP-B101 useful for environmental air pollution studies?
Portable Airborne Particle Counter LMAP-B101 measures ambient airborne particles for environmental monitoring.
8 Can Portable Airborne Particle Counter LMAP-B101 be used for verifying effectiveness of air purifiers?
Portable Airborne Particle Counter LMAP-B101 assesses particle reduction performance of air purification devices.
9 Is Portable Airborne Particle Counter LMAP-B101 suitable for monitoring particle contamination in museums or archives?
Portable Airborne Particle Counter LMAP-B101 helps protect sensitive artifacts by monitoring airborne particulate levels.
10 What kind of maintenance does Portable Airborne Particle Counter LMAP-B101 require?
Routine maintenance includes regular cleaning of the sampling inlet, periodic calibration, battery charging, and occasional filter replacement to ensure accurate particle counting.
11 What is a Portable Airborne Particle Counter?
A Portable Airborne Particle Counter is a mobile apparatus designed to detect and count the number and size of particles suspended in the air.
12 How does a Portable Airborne Particle Counter work?
It works by sampling air and detecting particles as they pass through a laser beam, measuring their size and quantity.
13 Can environmental conditions affect Portable Airborne Particle Counter?
High humidity and extreme temperatures can affect its readings or damage sensitive internal components.
14 What kind of maintenance does Portable Airborne Particle Counter require?
Regular maintenance includes cleaning of the apparatus, storing it properly and calibrating it annually for accurate performance.
15 Can Portable Airborne Particle Counter detect smoke or pollution?
It can detect fine particulates in smoke and pollution.
16 Can Portable Airborne Particle Counter be used in a cleanroom?
It is widely used in cleanroom environments.
17 Can Portable Airborne Particle Counter be used in a manufacturing facility?
It is commonly used in electronics, pharmaceuticals, food processing and other controlled manufacturing environments to ensure air cleanliness.
18 Can Portable Airborne Particle Counter be used to validate HEPA filters?
It is commonly used during HEPA/ULPA filter integrity testing.
19 Can Portable Airborne Particle Counter be used to measure air cleanliness in laboratories?
It is commonly used in laboratory environments in order to ensure that airborne particle levels comply with cleanliness standards necessary for research and testing.
20 Can Portable Airborne Particle Counter be used to measure air quality in vehicles?
It is suitable for measuring particulate pollution in vehicles.
