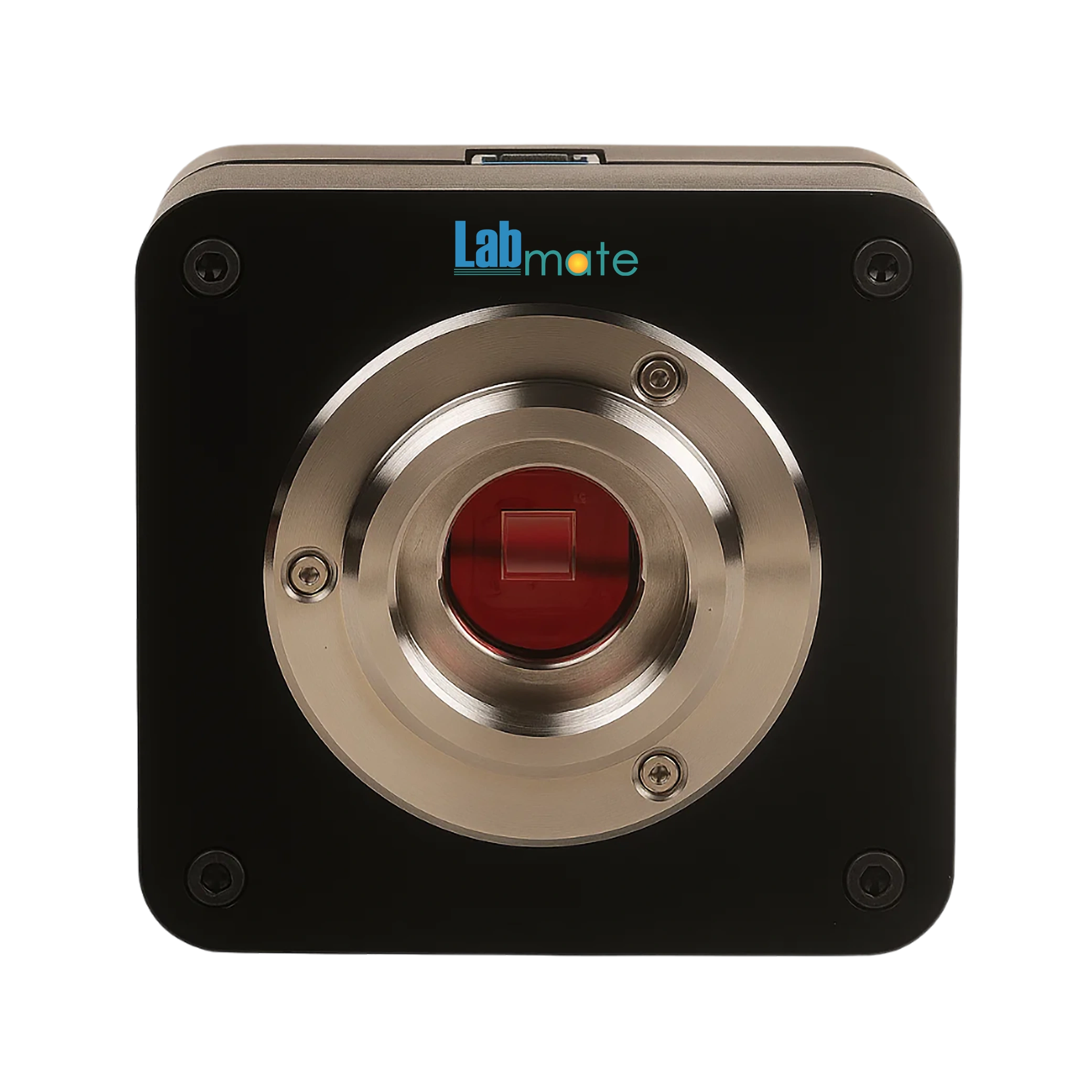

Microscope Camera LMMIC-A112 delivers resolution of 10MP. Built with advanced color CMOS sensor for detailed and sharp images. It features adjustable exposure times, multiple binning modes, and broad spectral range. Designed with zinc-aluminum alloy body for enhanced strength and durability. Our Microscope Camera supports 7.2fps, providing high-definition stills and smooth video capture.
Specifications
| Sensor Type | MT9J003 Color CMOS Sensor |
| Sensor Size | 1/2.3-inch (5.98 × 4.58 mm) |
| Resolution | 10 Megapixels |
| Pixel Size | 1.67 × 1.67 µm |
| G Sensitivity | 0.31 V/lux-sec |
| Dynamic Range | 65.2 dB |
| Dark Signal Noise | 34 dB |
| Frame Rate | 7.2 fps at 3584 × 2746 and 24.5 fps at 1792 × 1372 |
| Binning Modes | 1×1, 2×2, 4×4 |
| Exposure | 0.38 ms to 2000 ms |
| Spectral Range | 380 to 650 nm |
| White Balance | ROI White Balance / Manual Temp-Tint Adjustment |
| Color Rendering | Ultra Fine Color Engine |
| Recording Modes | Still Images and Movie |
| Cooling System | Natural |
| Operating Temperature | –10 °C to 50 °C |
| Storage Temperature | –20 °C to 60 °C |
| Operating Humidity | 30 to 80% RH |
| Storage Humidity | 10 to 60% RH |
| Supported Operating System | Windows XP/Vista/7/8/10 (32 & 64-bit), Mac OS X, Linux |
| Capture/Control SDK | indows/Linux/macOS/Android; Multi-platform SDK (C/C++, C#/VB.NET, Python, Java, DirectShow, Twain) |
| Interface | USB 3.0 |
| PC Requirements | CPU: Intel Core2 2.8 GHz; Memory: 2 GB or more; USB port: USB 2.0 High-Speed Port; Display: 17-inch or larger; CD-ROM |
| Power Supply | DC 5 V over PC USB Port |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Microscope Camera LMMIC-A112 | $ 2012.5 | Each of 1 |
Features
USB 3.0 Data transfer interface
ROI white balance
Ultra-fine color engine
Wide operating temperature
Low dark signal noise
Lightweight and compact
Applications
Microscope Camera LMMIC-A112 is ideal for high-resolution imaging in microscopy, pathology, biological research, and industrial inspection.
Similar Products
$ 1250 / Pack of 1
$ 1137.5 / Pack of 1
$ 1362.5 / Pack of 1
$ 1787.5 / Each of 1
$ 1362.5 / Pack of 1
$ 1125 / Pack of 1
$ 1550 / Pack of 1
$ 1300 / Pack of 1
$ 1300 / Pack of 1
$ 1987.5 / Each of 1
$ 1237.5 / Pack of 1
$ 1300 / Pack of 1
Frequently Asked Questions
1 What is a Microscope Camera?
A Microscope Camera is a specialized camera designed to capture images or video through the lens of a microscope.
2 How does a Microscope Camera work?
It captures images or video from the lens of microscope and displays them on a screen or computer for analysis.
3 What is the difference between a Digital Microscope and a Microscope Camera?
A Digital Microscope has a built-in camera and display whereas a Microscope Camera attaches to an existing microscope to capture and display images.
4 Can Microscope Camera be used for both live and still images?
It is used to capture both live and still images.
5 Is Microscope Camera compatible with all types of Microscopes?
It is compatible with various types of Microscopes including Light, Stereo and Digital Microscopes.
6 Can Microscope Camera be used for both biological and material science samples?
It is widely used for both biological and material science samples.
7 How is calibration done in case of Microscope Camera?
It is done using a calibration slide or known measurement standards in order to ensure accurate measurements.
8 What is the role of the adapter in a Microscope Camera?
It is used to connect the camera to the microscope in order to ensure proper alignment and a stable connection for image capture.
9 Is Microscope Camera suitable for industrial or quality control applications?
It is widely used in industrial and quality control applications to inspect small parts, electronics and materials for defects or damage.
10 Can Microscope Camera be used for cell culture analysis?
It is commonly used for cell culture analysis in biological research to monitor cell growth and behavior.
