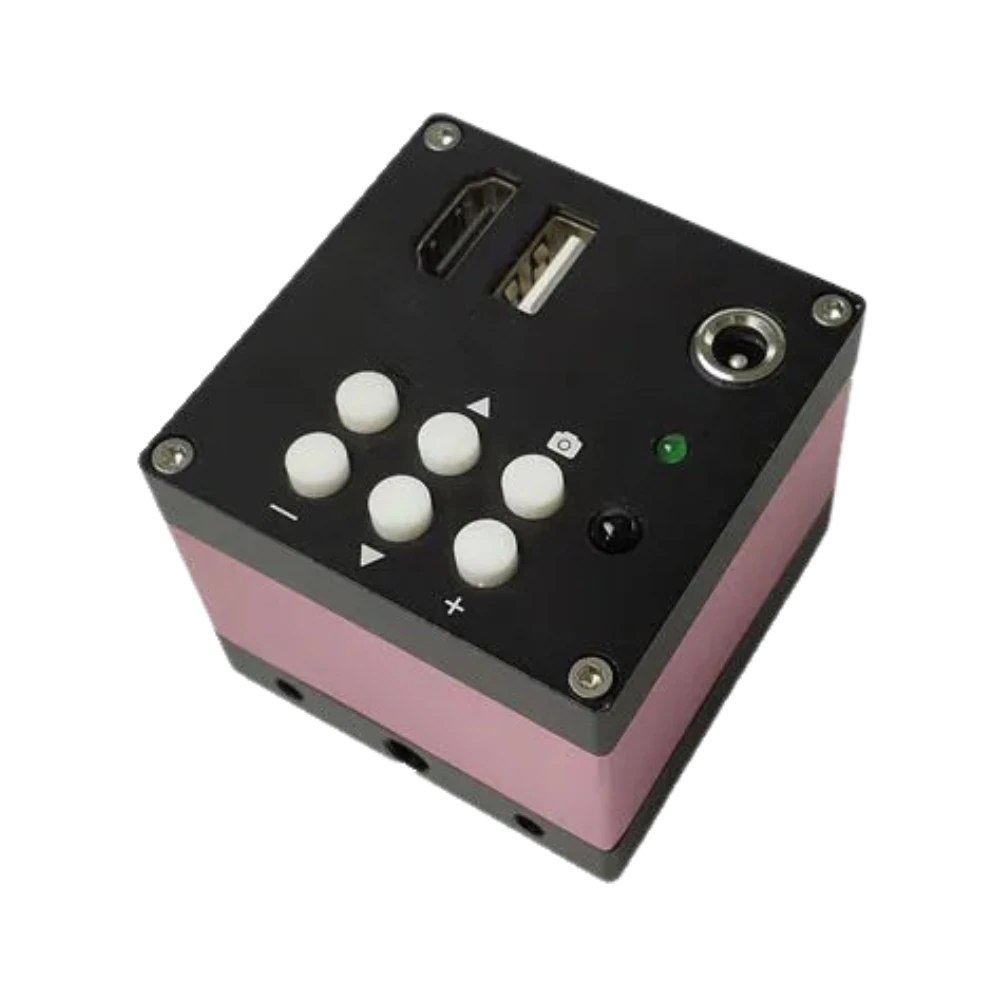

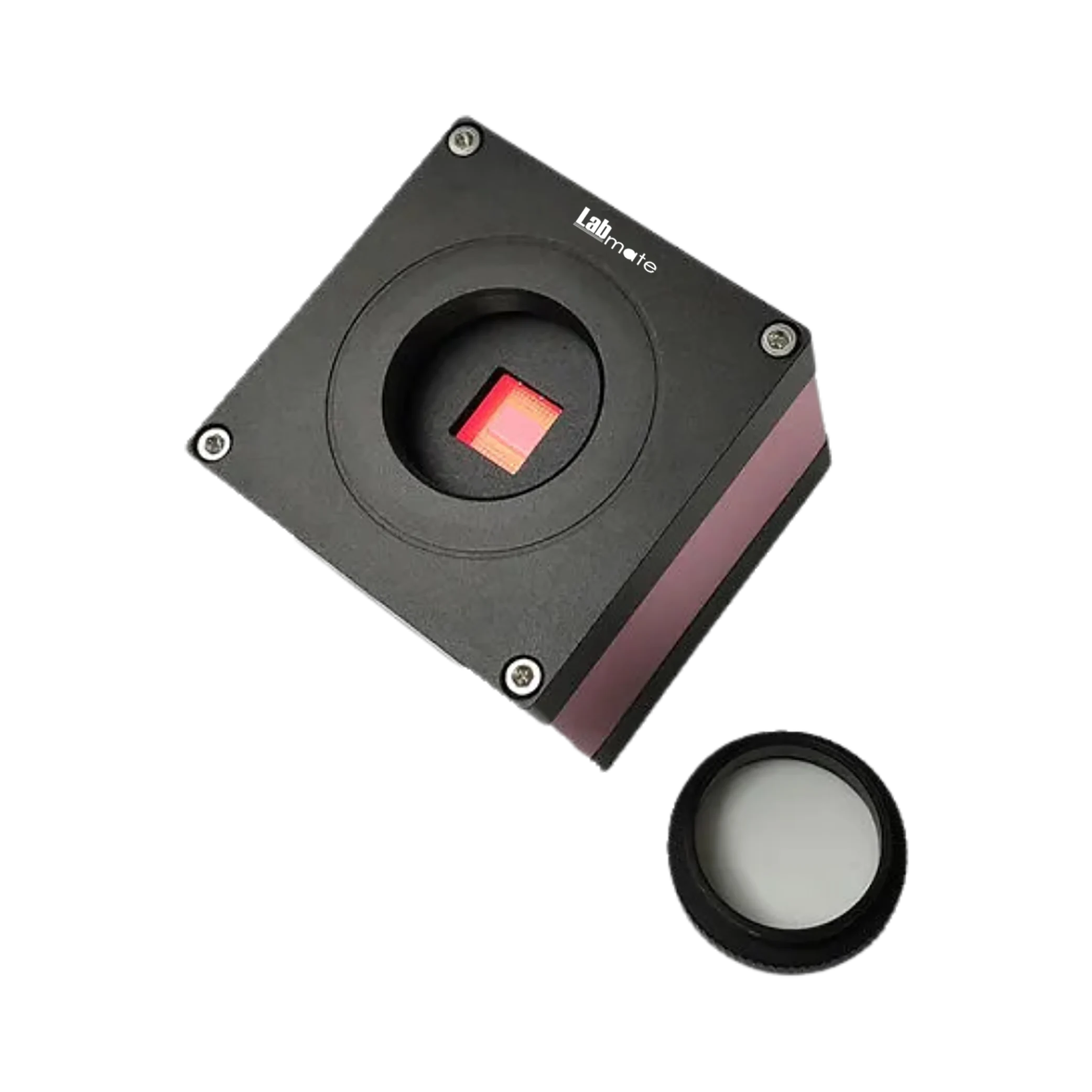

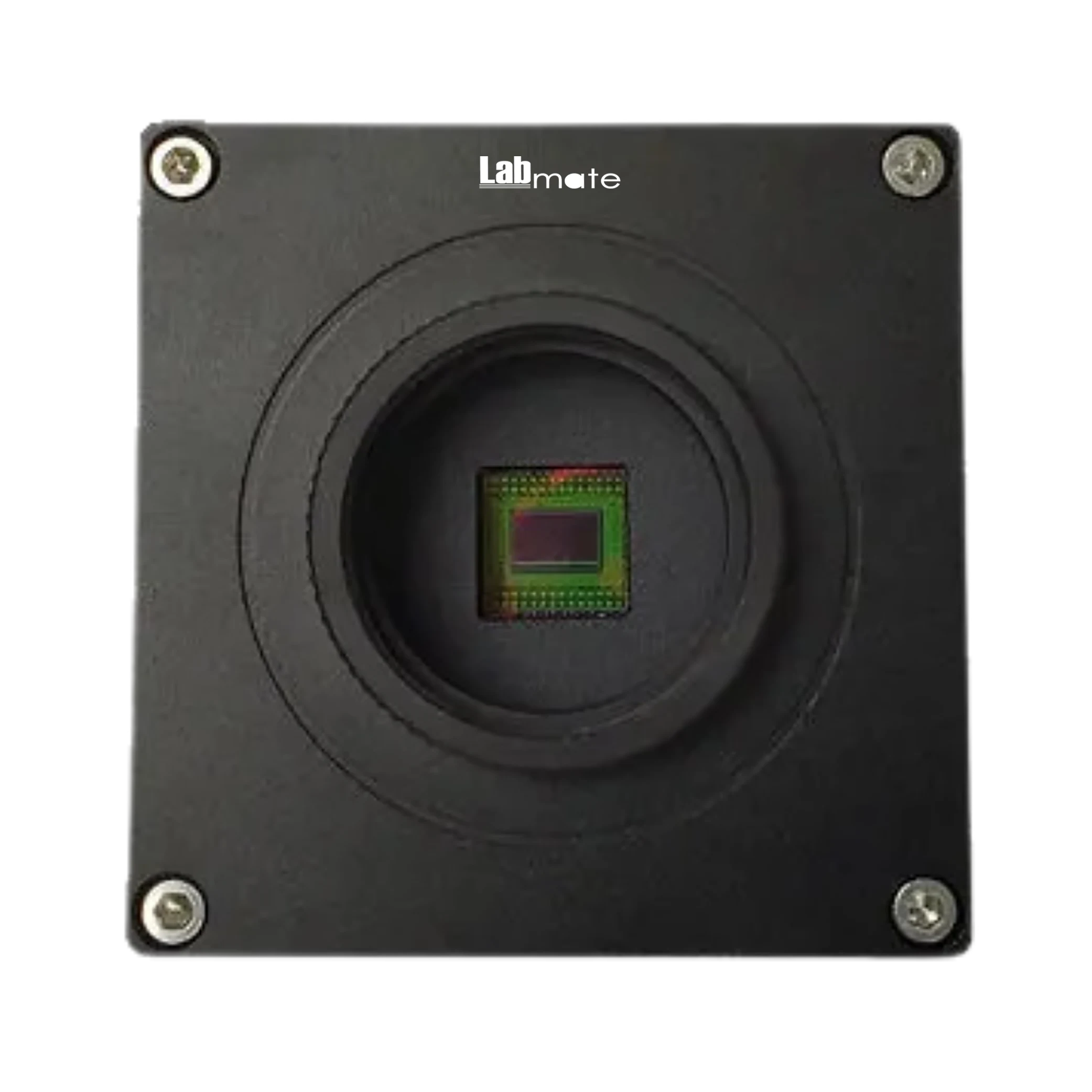

Labmate Microscope Camera LMMIC-A106 delivers 2.0 MP resolution with smooth 60 fps video capture. Its advanced features include progressive scanning, manual/auto exposure, and electronic shutter control. It ensures seamless connectivity for efficient usage with equipped with HDMI and USB 2.0 interfaces. Our Microscope Camera LMMIC-A106 offers flexible exposure modes and adjustable R, G, B color settings for accurate results.
Specifications
| Sensor Type | 2.0 MP, 1/2.8’’ inch |
| Effective Pixels | 1920 × 1080V |
| Data Bites | 12bit |
| Pixel Size | 2.9 µm × 2.9 µm |
| Frame Rate | 60fps/s |
| Definition | 900TV |
| Scanning Mode | Progressive |
| Shutter Mode | Electronic shutter |
| Dynamic range | >90dB |
| Signal to noise ratio | 55dB |
| Sensitivity | 2.0V/lux-sec (550nm) |
| Exposure Mode | Manual /Auto mode |
| White Balance | Auto/Manual mode |
| Lens Mount | C/CS |
| Output Interface | HDMI, USB 2.0, Standard HDMI/USB 2.0 interface |
| HDMI output Resolution | 1920 × 1080 |
| Light Source | Light Source |
| Dimension | 53 × 53 × 45 mm |
| Menu function | USB interface: Connects to a USB drive for capturing images and videos, allowing users to save and browse files directly. Cross lines: 1 to 8 groups, color optional, size adjustable. |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Microscope Camera LMMIC-A106 | $ 1362.5 | Pack of 1 |
Features
Dynamic range greater than 90 dB
Manual and auto exposure modes
Auto/manual white balance adjustment
Progressive scanning mode
Cross lines adjustable in size and color
Supports USB storage for images and video
HDMI digital output for enhanced viewing
Standard Accessories
| Accessory Name | Quantity |
| HDMI Cable (1.5 m) | 1 pc |
| USB Storage | 1 pc |
| Power Adapter (DC 12V/1A) | 1 pc |
| Lens Cleaning Cloth | 1 pc |
| Calibration Slide | 1 pc |
| Microscope Mount Adapters | 2 pcs |
| Protective Carrying Case | 1 pc |
| User Manual | 1 pc |
Applications
Microscope Camera LMMIC-A106 is ideal for various scientific fields, including clinical diagnostics, forensic analysis, and industrial quality control, delivering high-definition images for detailed analysis.
Selection Guide
Microscope Camera LMMIC-A106 is designed for high-quality imaging in laboratory and research environments. Featuring a 2.0 MP CMOS sensor with a 1/2.8-inch optical size, it delivers sharp and detailed Full HD images at 1920 × 1080V resolution, making it suitable for applications such as biological research, clinical diagnostics, educational demonstrations, and industrial inspections. The 12-bit data depth provides enhanced grayscale accuracy and color differentiation, which is crucial for image analysis and measurement-based experiments. Its pixel size of 2.9 µm × 2.9 µm ensures good sensitivity under standard lighting conditions, supporting accurate visualization of samples. Based on research usage, this camera meets the needs of laboratories seeking reliable digital imaging with sufficient detail for documentation, analysis, and live observation. It may also be aligned with quality certifications or imaging standards required in regulated environments.
Similar Products
$ 1987.5 / Each of 1
$ 1137.5 / Pack of 1
$ 1300 / Pack of 1
$ 2012.5 / Each of 1
$ 1300 / Pack of 1
$ 1787.5 / Each of 1
$ 1125 / Pack of 1
$ 1237.5 / Pack of 1
$ 1300 / Pack of 1
$ 1362.5 / Pack of 1
$ 1550 / Pack of 1
$ 1250 / Pack of 1
Frequently Asked Questions
1 What is a Microscope Camera?
A Microscope Camera is a specialized camera designed to capture images or video through the lens of a microscope.
2 How does a Microscope Camera work?
It captures images or video from the lens of microscope and displays them on a screen or computer for analysis.
3 What is the difference between a Digital Microscope and a Microscope Camera?
A Digital Microscope has a built-in camera and display whereas a Microscope Camera attaches to an existing microscope to capture and display images.
4 Can Microscope Camera be used for both live and still images?
It is used to capture both live and still images.
5 Is Microscope Camera compatible with all types of Microscopes?
It is compatible with various types of Microscopes including Light, Stereo and Digital Microscopes.
6 Can Microscope Camera be used for both biological and material science samples?
It is widely used for both biological and material science samples.
7 How is calibration done in case of Microscope Camera?
It is done using a calibration slide or known measurement standards in order to ensure accurate measurements.
8 What is the role of the adapter in a Microscope Camera?
It is used to connect the camera to the microscope in order to ensure proper alignment and a stable connection for image capture.
9 Is Microscope Camera suitable for industrial or quality control applications?
It is widely used in industrial and quality control applications to inspect small parts, electronics and materials for defects or damage.
10 Can Microscope Camera be used for cell culture analysis?
It is commonly used for cell culture analysis in biological research to monitor cell growth and behavior.
