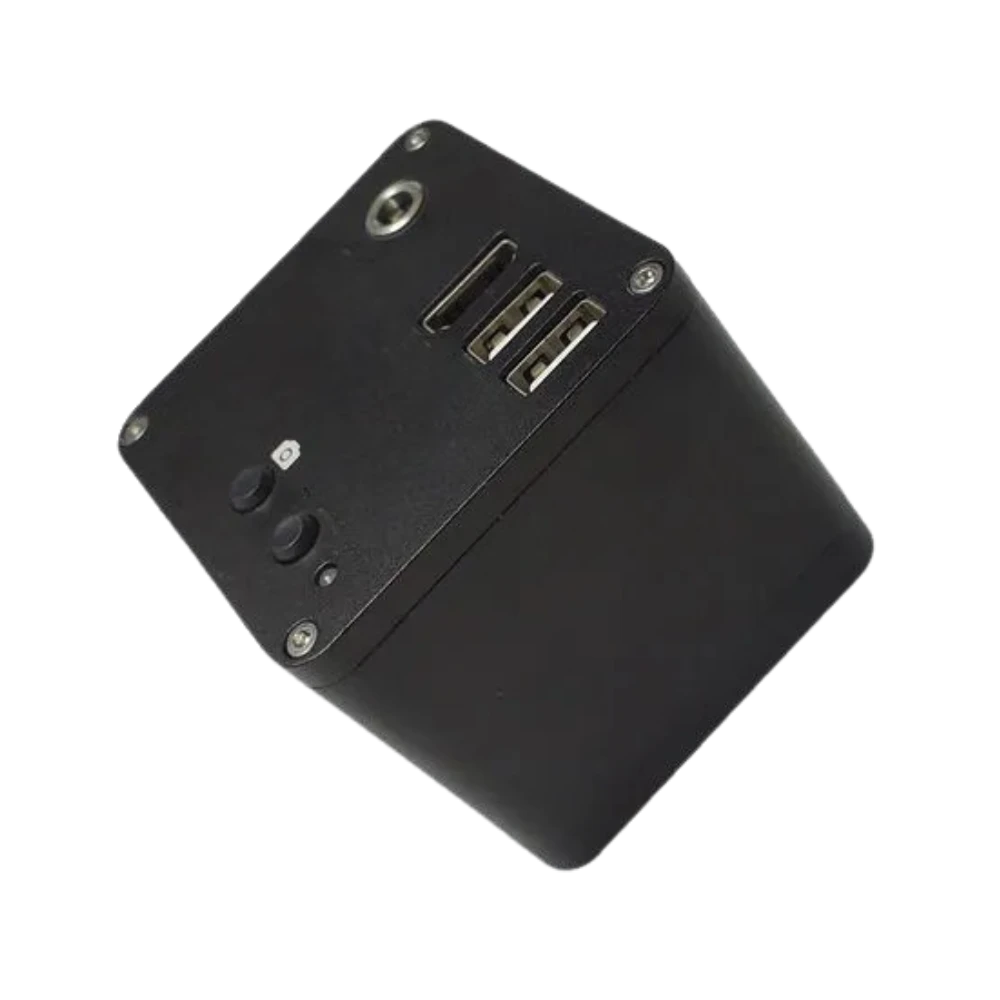

Labmate Microscope Camera LMMIC-A110 features an 8.0 MP SONY color sensor. It captures 30 fps video with a dynamic range of over 90 dB for vibrant images. The camera supports HDMI and dual USB connectivity for versatile storage options. Our Microscope Camera LMMIC-A110 ensures freeze function with split screens enables comparison of multiple images and videos.
Specifications
| Sensor Type | 8.0MP, 1/3” inch SONY Color, CMOS |
| Effective Pixels | 3480H × 2160V |
| Data Bites | 12bit |
| Pixel Size | 1.45 µm × 1.45 µm |
| Frame rate | 30fps/s |
| Definition | Above 1500TV line |
| Scanning Mode | Progressive |
| Shutter Mode | Electronic shutter |
| Dynamic Range | >90dB |
| Signal to noise ratio | 55dB |
| Sensitivity | 2.0V/lux-sec (550nm) |
| Exposure mode | Manual/Auto mode |
| White Balance | Auto/Manual mode |
| Lens Mount | C/CS |
| Output interface | Standard HDMI, Two USB 2.0 interface |
| HDMI Output Resolution | 1920 × 1080 / 3840 × 2160 |
| Light Source | DC 12V/1A |
| Dimension | 53 × 53 × 45 mm |
| Menu function | Two USB interface, one connects to USB mouse, another connects to U diskSave the image to the U disk, can also browse the pictures and video in the U diskCross lines: 1 to 12 groups, color optional, size adjustableFreeze function: two split screens, four split screensScale: the number of scale pixels of each small grid can be adjusted arbitrarilyMeasurement function: distance between two points, rectangle, circle, angle etc. |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Microscope Camera LMMIC-A110 | $ 1300 | Pack of 1 |
Features
Manual and auto exposure modes for versatility
Auto/manual white balance adjustment
Progressive scanning mode for enhanced image quality
Adjustable cross lines in size and color, up to 12 groups
Supports dual USB storage for images and video
HDMI digital output for superior viewing
Freeze function with two and four split screens for comparison
Measurement functions: distance between two points, rectangle, circle, angle, etc.
Standard Accessories
| Accessory Name | Quantity |
| HDMI Cable (1.5 m) | 1 pc |
| USB Storage | 1 pc |
| Power Adapter (DC 12V/1A) | 1 pc |
| Lens Cleaning Cloth | 1 pc |
| Calibration Slide | 1 pc |
| Microscope Mount Adapters | 2 pcs |
| Protective Carrying Case | 1 pc |
| User Manual | 1 pc |
Applications
Microscope Camera LMMIC-A110 is ideal for scientific applications, including clinical diagnostics, forensic analysis, and industrial quality control, providing high-definition and accurate images for detailed examination.
Selection Guide
Microscope Camera LMMIC-A110 is a high-resolution imaging solution suitable for a range of advanced microscopy applications, particularly where precision and color accuracy are critical. Equipped with an 8.0 MP, 1/3” inch SONY color CMOS sensor, it provides a resolution of 3480H × 2160V, ensuring detailed visualization for research documentation, cell analysis, and digital pathology. The fine pixel size of 1.45 µm × 1.45 µm supports high image clarity and is ideal for capturing minute specimen features under high magnification. With 12-bit data depth, the camera delivers superior dynamic range and color fidelity, making it suitable for experiments involving fluorescence imaging, histology, and clinical diagnostics. Based on research usage and industrial standards, it is often preferred in life science laboratories, material science imaging, and educational demonstrations. Cameras like this typically adhere to CE and ISO certifications, ensuring reliability and performance compliance, which helps researchers and technicians confidently select it for demanding microscopy applications.
Similar Products
$ 1237.5 / Pack of 1
$ 1137.5 / Pack of 1
$ 1300 / Pack of 1
$ 1300 / Pack of 1
$ 1362.5 / Pack of 1
$ 1362.5 / Pack of 1
$ 1550 / Pack of 1
$ 1787.5 / Each of 1
$ 1250 / Pack of 1
$ 1125 / Pack of 1
$ 2012.5 / Each of 1
$ 1987.5 / Each of 1
Frequently Asked Questions
1 What is a Microscope Camera?
A Microscope Camera is a specialized camera designed to capture images or video through the lens of a microscope.
2 How does a Microscope Camera work?
It captures images or video from the lens of microscope and displays them on a screen or computer for analysis.
3 What is the difference between a Digital Microscope and a Microscope Camera?
A Digital Microscope has a built-in camera and display whereas a Microscope Camera attaches to an existing microscope to capture and display images.
4 Can Microscope Camera be used for both live and still images?
It is used to capture both live and still images.
5 Is Microscope Camera compatible with all types of Microscopes?
It is compatible with various types of Microscopes including Light, Stereo and Digital Microscopes.
6 Can Microscope Camera be used for both biological and material science samples?
It is widely used for both biological and material science samples.
7 How is calibration done in case of Microscope Camera?
It is done using a calibration slide or known measurement standards in order to ensure accurate measurements.
8 What is the role of the adapter in a Microscope Camera?
It is used to connect the camera to the microscope in order to ensure proper alignment and a stable connection for image capture.
9 Is Microscope Camera suitable for industrial or quality control applications?
It is widely used in industrial and quality control applications to inspect small parts, electronics and materials for defects or damage.
10 Can Microscope Camera be used for cell culture analysis?
It is commonly used for cell culture analysis in biological research to monitor cell growth and behavior.
