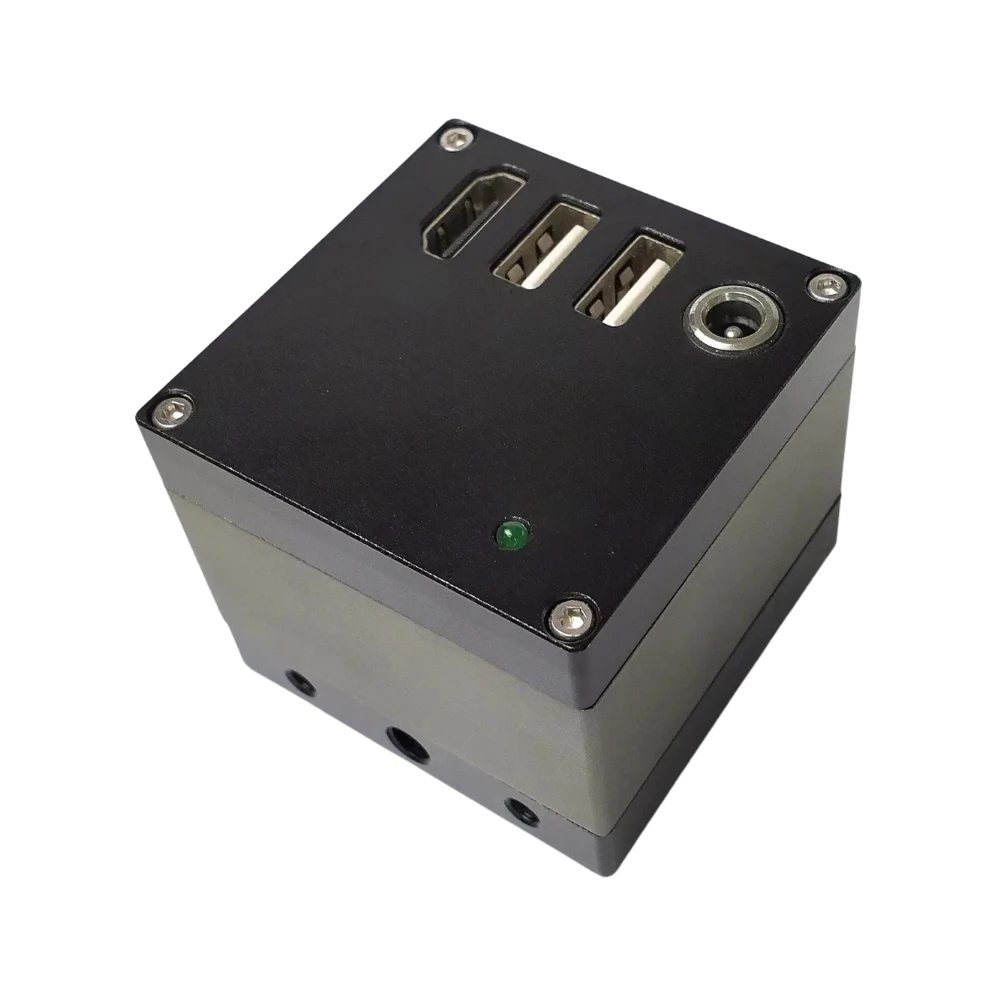

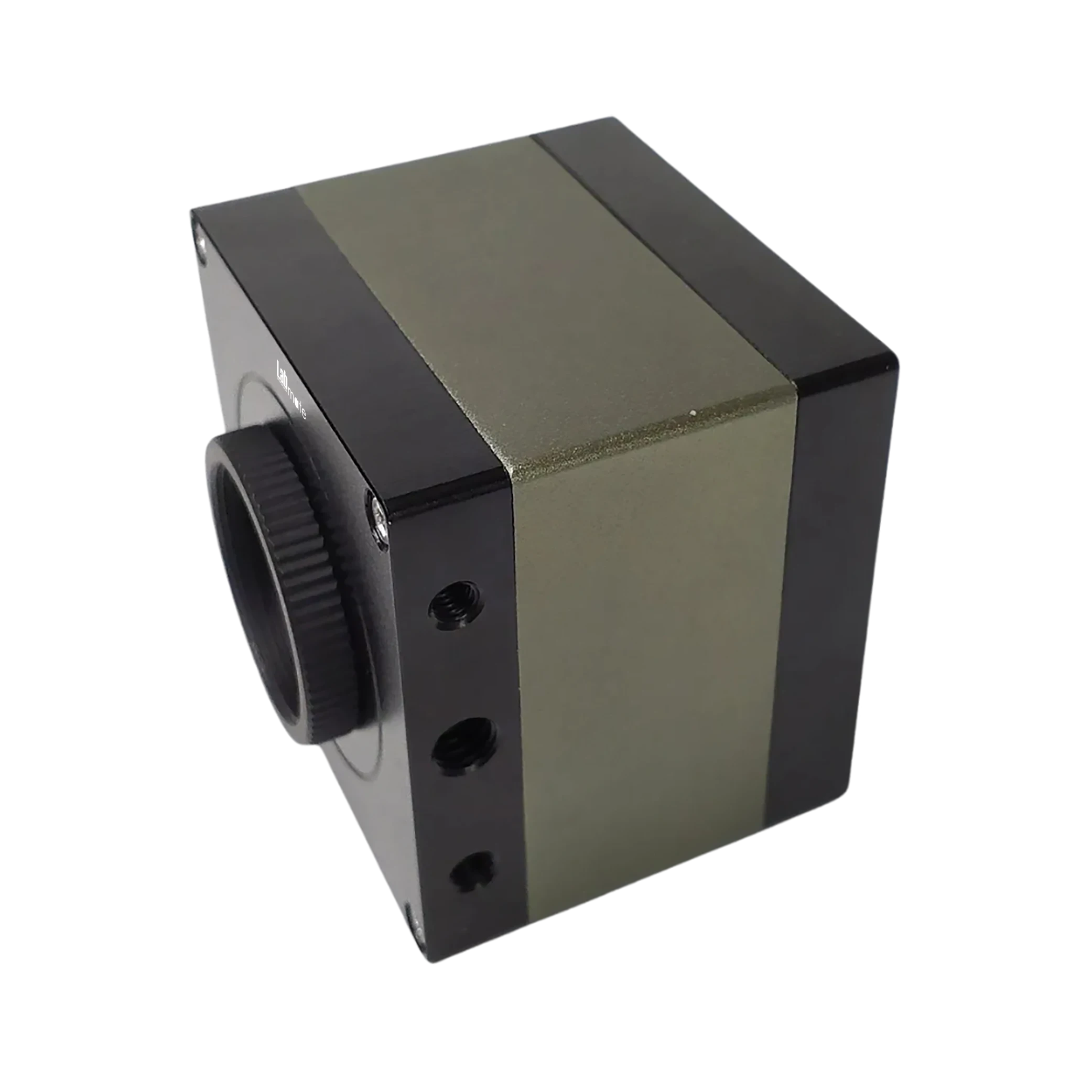

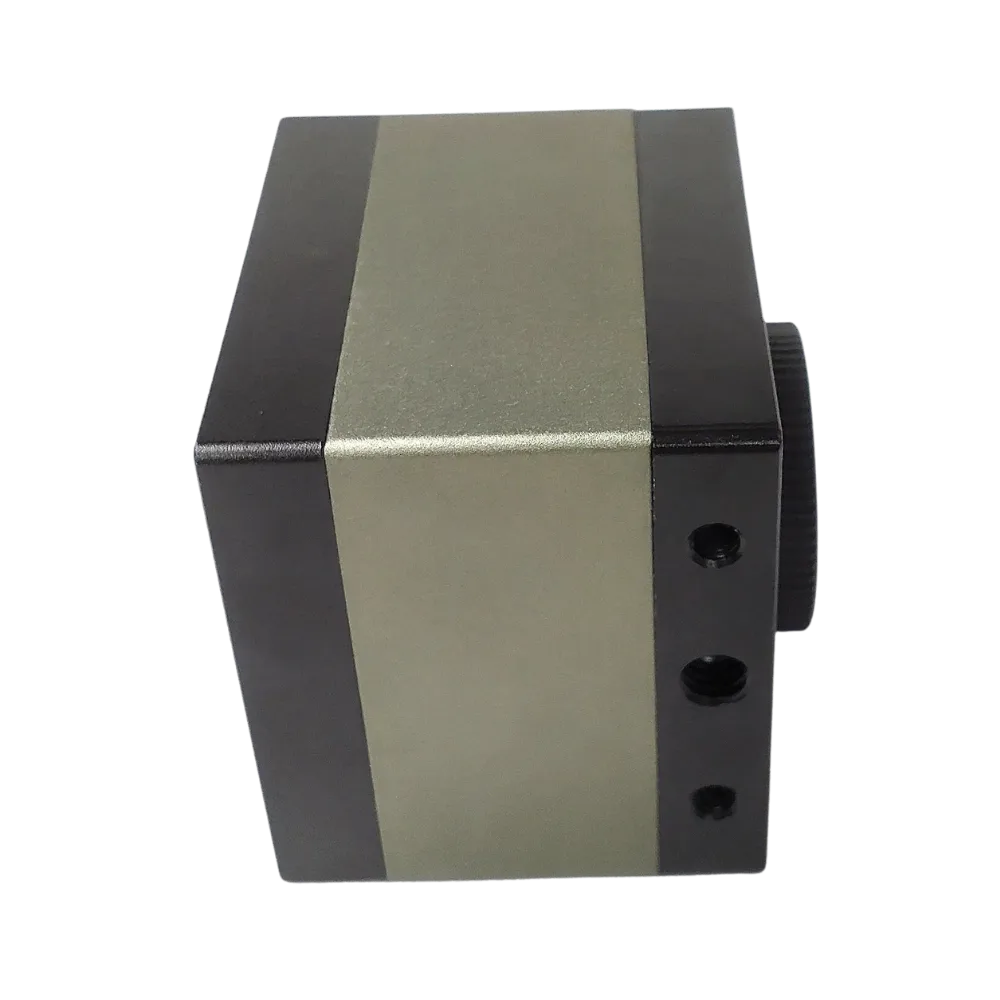

Labmate Microscope Camera LMMIC-A108 provides a superior 4.0 MP resolution for high-definition imaging. This camera ensures smooth, real-time video capture with a frame rate of 30 fps. Its adjustable manual and auto exposure modes enhance image clarity in various lighting conditions. Our Microscope Camera LMMIC-A108 contains HDMI and dual USB interfaces provide easy connectivity and storage for images and videos.
Specifications
| Sensor Type | 4.0MP, 1/ 3” inch SONY color, CMOS |
| Effective Pixels | 2560H × 1440V |
| Data Bites | 12bit |
| Pixel Size | 2.0 µm × 2.0 µm |
| Frame rate | 30fps/s |
| Definition | Above 1200TV lines |
| Scanning Mode | Progressive |
| Shutter Mode | Electronic shutter |
| Dynamic Range | >90dB |
| Signal to noise ratio | 55dB |
| Sensitivity | 2.0V/lux-sec (550nm) |
| Exposure mode | Manual/Auto mode |
| White Balance | Auto/Manual mode |
| Lens Mount | C/CS |
| Output interface | Standard HDMI, Two USB 2.0 interface |
| HDMI Output Resolution | 1920 × 1080 / 2560 × 1440 |
| Light Source | DC 12V/1A |
| Dimension | 53 × 53 × 45 mm |
| Menu function | Two USB interface, one connects to USB mouse, another connects to U disk.Save the image to the U disk, can also browse the pictures and video in the U diskCross lines: 1to 12 groups, color optional, size adjustableFreeze function: two split screens, four split screensScale: The number of scale pixels of each small grid can be adjusted arbitrarily Measurement function: distance between two points, rectangle, circle, angle etc. |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Microscope Camera LMMIC-A108 | $ 1250 | Pack of 1 |
Features
4.0 MP resolution for sharp, high-definition imaging
30 fps video capture for smooth imaging
Dynamic range greater than 90 dB
Manual and auto exposure modes
Auto/manual white balance adjustment
Progressive scanning mode
Adjustable cross lines in size and color
Supports USB storage for images and video
HDMI digital output for enhanced viewing
Freeze function with two and four split screens for comparison
Measurement function: distance, angle, cir
Standard Accessories
| Accessory Name | Quantity |
| HDMI Cable (1.5 m) | 1 pc |
| USB Storage | 1 pc |
| Power Adapter (DC 12V/1A) | 1 pc |
| Lens Cleaning Cloth | 1 pc |
| Calibration Slide | 1 pc |
| Microscope Mount Adapters | 2 pcs |
| Protective Carrying Case | 1 pc |
| User Manual | 1 pc |
Applications
Microscope Camera LMMIC-A108 is designed for scientific applications such as clinical diagnostics, forensic analysis, and industrial quality control, delivering high-definition, accurate images for detailed analysis.
Selection Guide
Microscope Camera LMMIC-A108 is best suited for users seeking high-resolution imaging for detailed microscopy work. With a 4.0 MP, 1/3” inch SONY color CMOS sensor, it delivers sharp images at 2560H × 1440V resolution, making it suitable for applications such as biological research, pathology, cytology, material analysis, and live-cell imaging. It's 2.0 µm × 2.0 µm pixel size ensures accurate detail capture, even in fine structures. The 12-bit data depth supports excellent color fidelity and contrast, important for documentation and image analysis. Based on research and practical use, it fits into workflows requiring precise image reproduction and digital archiving. Additionally, if backed by certifications like ISO, CE, or FCC, it assures compliance with international quality and safety standards, enhancing its suitability for academic, clinical, or industrial lab environments.
Similar Products
$ 1362.5 / Pack of 1
$ 1787.5 / Each of 1
$ 1237.5 / Pack of 1
$ 1550 / Pack of 1
$ 1987.5 / Each of 1
$ 1300 / Pack of 1
$ 1362.5 / Pack of 1
$ 1137.5 / Pack of 1
$ 1300 / Pack of 1
$ 1300 / Pack of 1
$ 2012.5 / Each of 1
$ 1125 / Pack of 1
Frequently Asked Questions
1 What is a Microscope Camera?
A Microscope Camera is a specialized camera designed to capture images or video through the lens of a microscope.
2 How does a Microscope Camera work?
It captures images or video from the lens of microscope and displays them on a screen or computer for analysis.
3 What is the difference between a Digital Microscope and a Microscope Camera?
A Digital Microscope has a built-in camera and display whereas a Microscope Camera attaches to an existing microscope to capture and display images.
4 Can Microscope Camera be used for both live and still images?
It is used to capture both live and still images.
5 Is Microscope Camera compatible with all types of Microscopes?
It is compatible with various types of Microscopes including Light, Stereo and Digital Microscopes.
6 Can Microscope Camera be used for both biological and material science samples?
It is widely used for both biological and material science samples.
7 How is calibration done in case of Microscope Camera?
It is done using a calibration slide or known measurement standards in order to ensure accurate measurements.
8 What is the role of the adapter in a Microscope Camera?
It is used to connect the camera to the microscope in order to ensure proper alignment and a stable connection for image capture.
9 Is Microscope Camera suitable for industrial or quality control applications?
It is widely used in industrial and quality control applications to inspect small parts, electronics and materials for defects or damage.
10 Can Microscope Camera be used for cell culture analysis?
It is commonly used for cell culture analysis in biological research to monitor cell growth and behavior.
