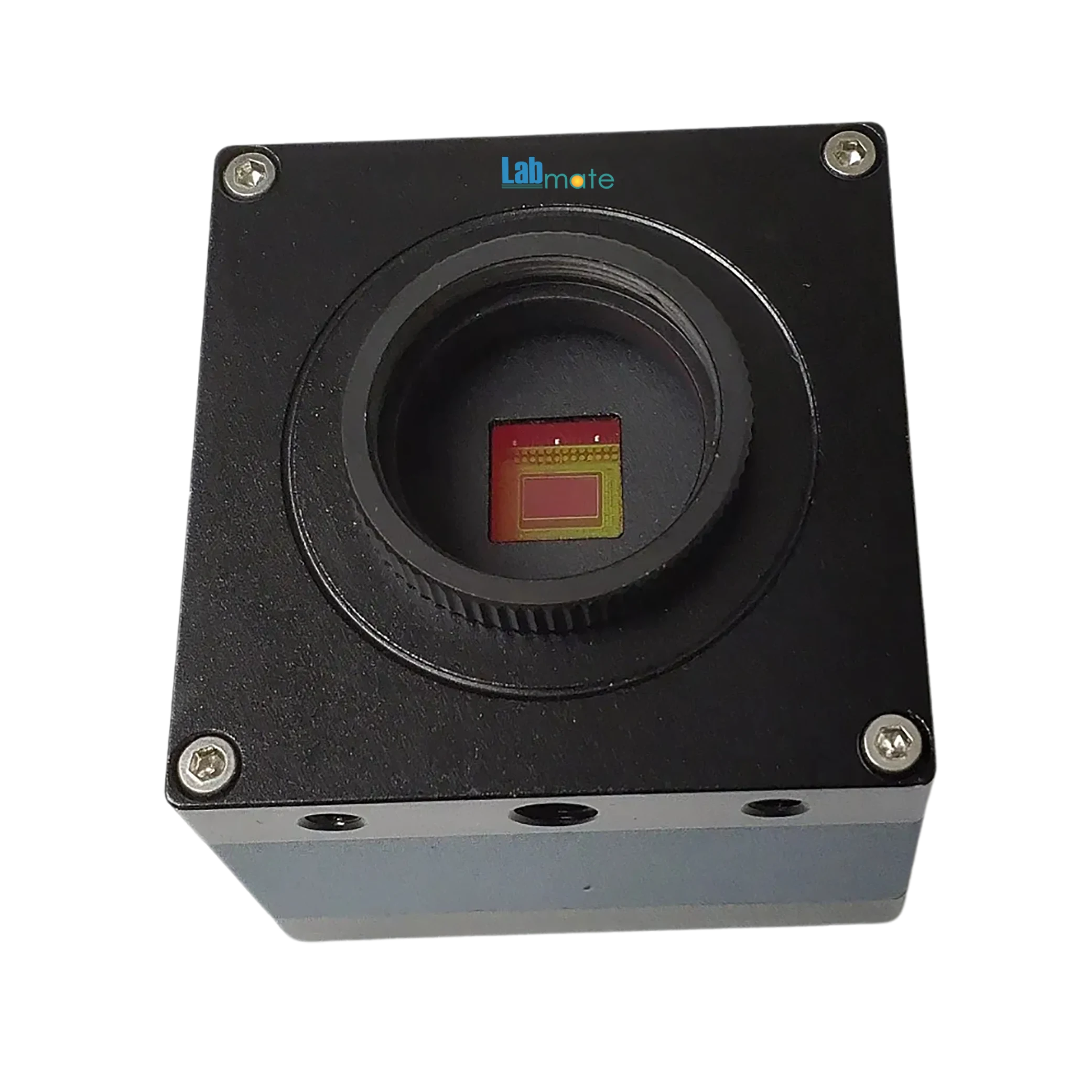

Labmate Microscope Camera LMMIC-A107 delivers 2.0 MP for high resolution imaging. It includes advanced featured capabilities such as manual/auto exposure, progressive scanning, and electronic shutter control. The camera ensures seamless connectivity with HDMI and dual USB 2.0 interfaces. Our Microscope Camera LMMIC-A107 Contains adjustable cross lines, and built-in measurement tools, enhances precision in analysis.
Specifications
| Sensor Type | 2.0MP, 1/ 2.8” inch SONY color, CMOS |
| Effective Pixels | 1920H × 1080V |
| Data Bites | 12bit |
| Pixel Size | 2.9 µm × 2.9 µm |
| Frame rate | 60fps/s |
| Definition | Above 900TV lines |
| Scanning Mode | Progressive |
| Shutter Mode | Electronic shutter |
| Dynamic Range | >90dB |
| Signal to noise ratio | 55dB |
| Sensitivity | 2.0V/lux-sec (550nm) |
| Exposure mode | Manual/Auto mode |
| White Balance | Auto/Manual mode |
| Lens Mount | C/CS |

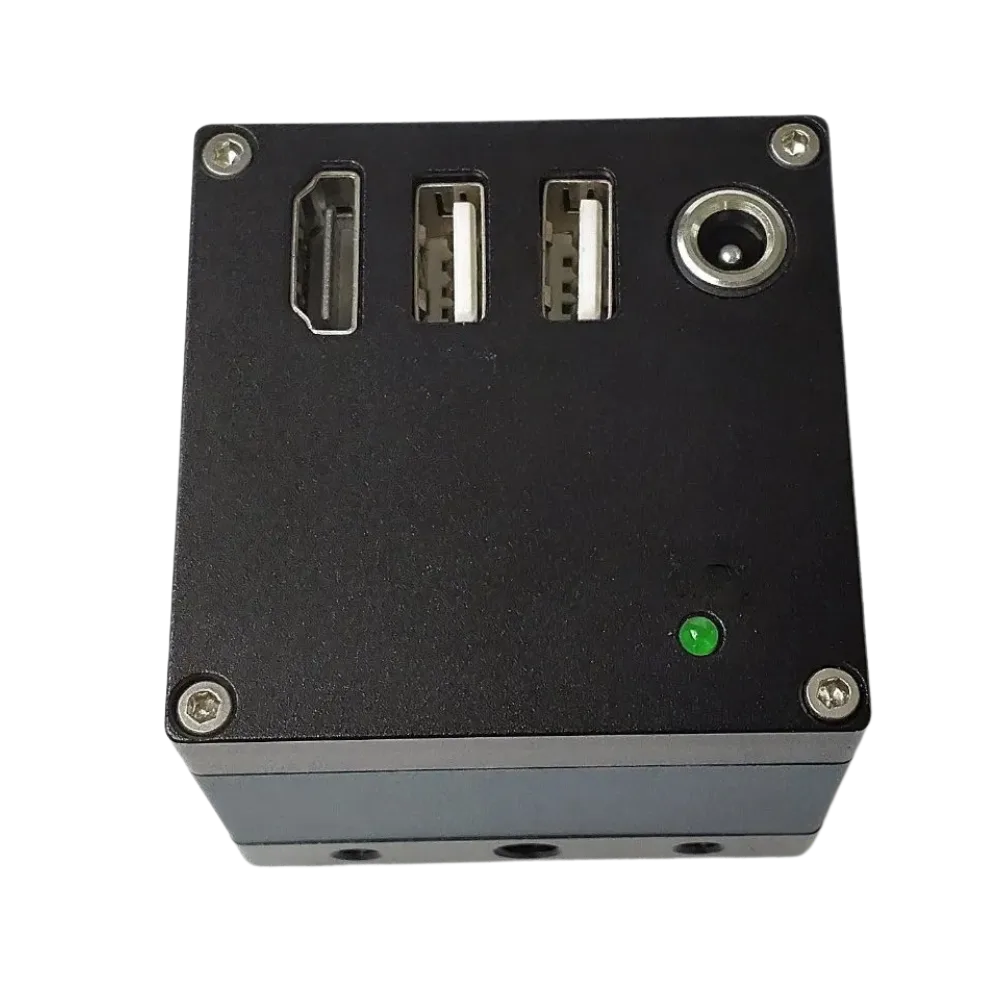

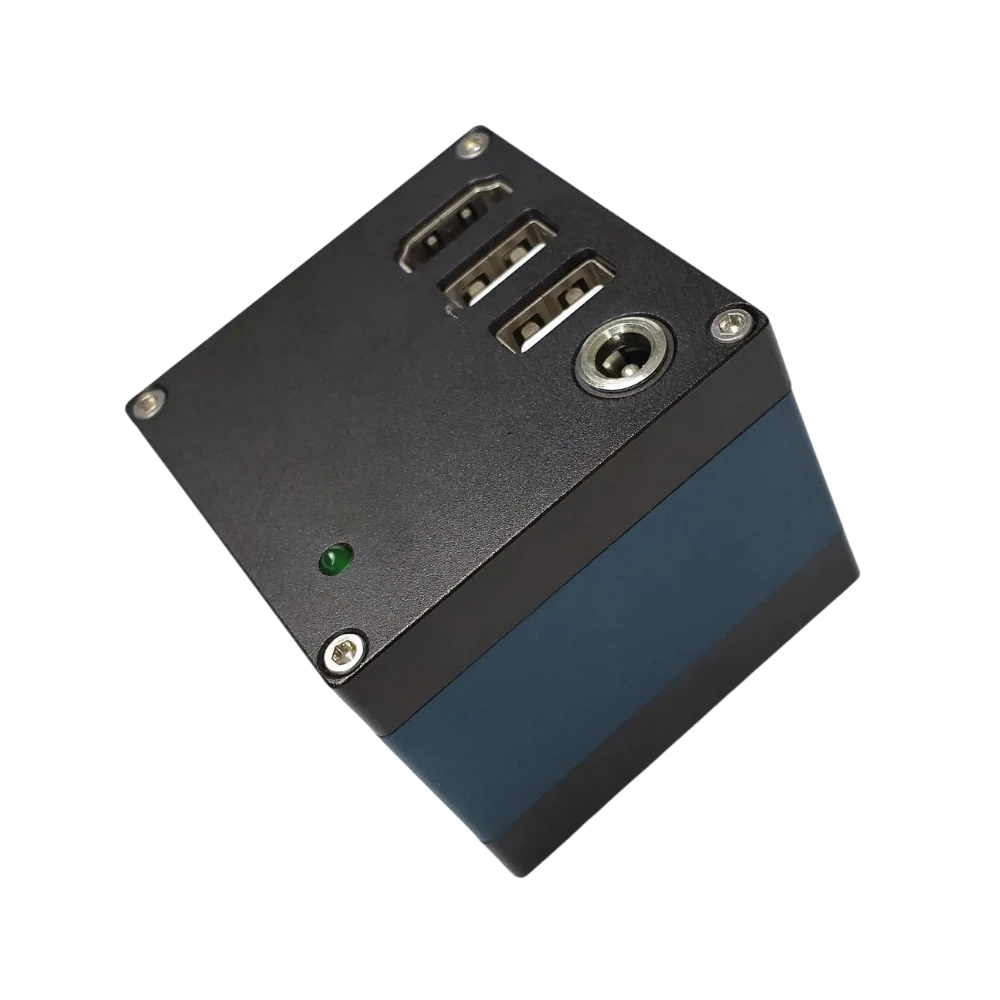

| Output interface | Standard HDMI, Two USB 2.0 interface |
| HDMI Output Resolution | 1920 × 1080 |
| Light Source | DC 12V/1A |

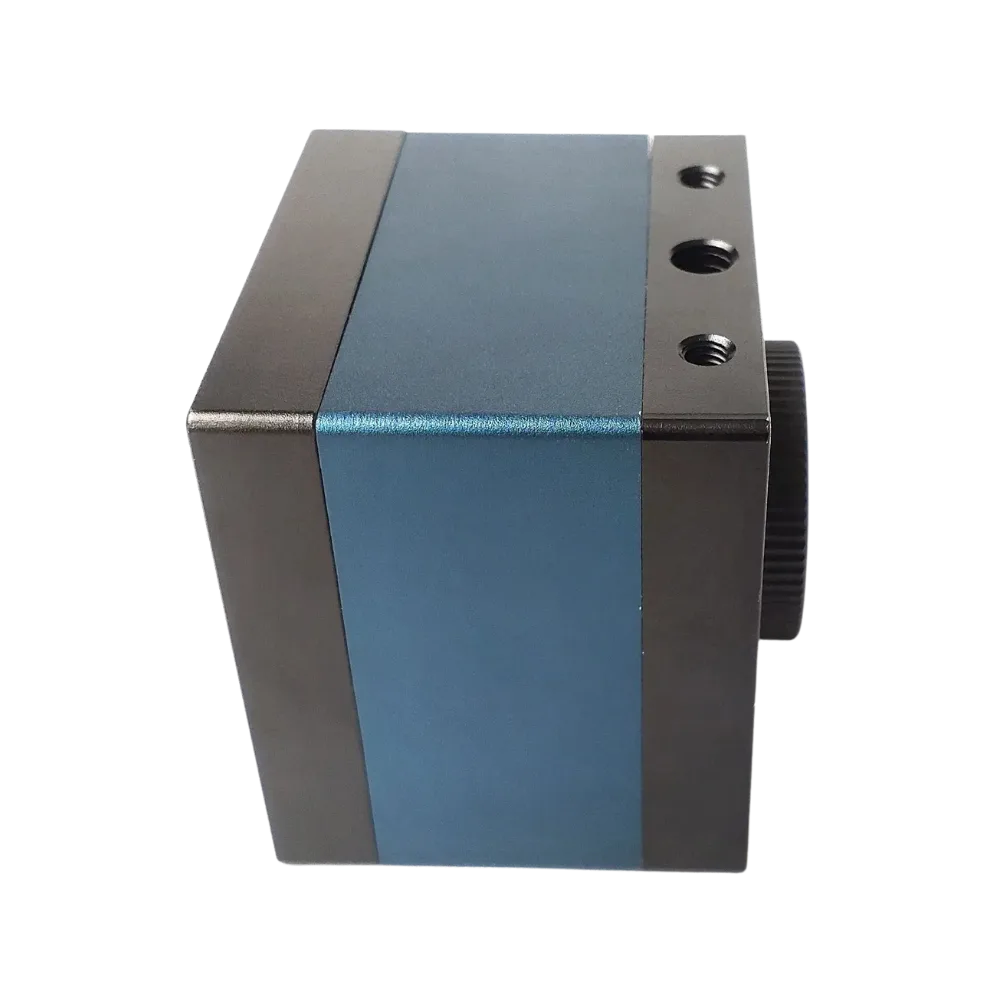

| Dimension | 53 × 53 × 45 mm |
| Menu function | Two USB interface, one connects to USB mouse, another connects to U diskSave the image to the U disk, can also browse the pictures and video in the U diskCross lines: 1to 12 groups, color optional, size adjustableScale: The number of scale pixels of each small grid can be adjusted arbitrarily Measurement function: distance between two points, rectangle, circle, angle etc. |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Microscope Camera LMMIC-A107 | $ 1362.5 | Pack of 1 |
Features
High-speed 60 fps video capture
Dynamic range greater than 90 dB
Manual and auto exposure modes
Auto/manual white balance adjustment
Progressive scanning mode
Cross lines adjustable in size and color
Supports USB storage for images and video
HDMI digital output for enhanced viewing
Measurement function: distance, angle, circle, rectangle
Standard Accessories
| Accessory Name | Quantity |
| HDMI Cable (1.5 m) | 1 pc |
| USB Storage | 1 pc |
| Power Adapter (DC 12V/1A) | 1 pc |
| Lens Cleaning Cloth | 1 pc |
| Calibration Slide | 1 pc |
| Microscope Mount Adapters | 2 pcs |
| Protective Carrying Case | 1 pc |
| User Manual | 1 pc |
Optional Accessories
Remote focus control module
Applications
Microscope Camera LMMIC-A107 is ideal for scientific fields such as clinical diagnostics, forensic analysis, and industrial quality control, delivering high-definition images for accurate analysis.
Selection Guide
Microscope Camera LMMIC-A107 features a high-quality 2.0 MP SONY color CMOS sensor (1/2.8” inch) with an effective resolution of 1920H × 1080V, 12-bit data output, and a pixel size of 2.9 µm × 2.9 µm, making it suitable for detailed and accurate imaging. This camera is perfect for applications such as biological research, live cell imaging, material inspection, pathology, and educational demonstrations. Its high sensitivity and low noise performance ensure clear imaging even under low light conditions, making it beneficial for fluorescence and phase contrast microscopy. Backed by CE and ISO certifications, the model provides reliability and safety for use in professional laboratory environments. Researchers and professionals looking for a full HD, research-grade camera with stable real-time performance and high image fidelity will find this model a suitable and efficient choice.
Similar Products
$ 1300 / Pack of 1
$ 1250 / Pack of 1
$ 1300 / Pack of 1
$ 1987.5 / Each of 1
$ 1137.5 / Pack of 1
$ 1300 / Pack of 1
$ 2012.5 / Each of 1
$ 1787.5 / Each of 1
$ 1362.5 / Pack of 1
$ 1550 / Pack of 1
$ 1237.5 / Pack of 1
$ 1125 / Pack of 1
Frequently Asked Questions
1 What is a Microscope Camera?
A Microscope Camera is a specialized camera designed to capture images or video through the lens of a microscope.
2 How does a Microscope Camera work?
It captures images or video from the lens of microscope and displays them on a screen or computer for analysis.
3 What is the difference between a Digital Microscope and a Microscope Camera?
A Digital Microscope has a built-in camera and display whereas a Microscope Camera attaches to an existing microscope to capture and display images.
4 Can Microscope Camera be used for both live and still images?
It is used to capture both live and still images.
5 Is Microscope Camera compatible with all types of Microscopes?
It is compatible with various types of Microscopes including Light, Stereo and Digital Microscopes.
6 Can Microscope Camera be used for both biological and material science samples?
It is widely used for both biological and material science samples.
7 How is calibration done in case of Microscope Camera?
It is done using a calibration slide or known measurement standards in order to ensure accurate measurements.
8 What is the role of the adapter in a Microscope Camera?
It is used to connect the camera to the microscope in order to ensure proper alignment and a stable connection for image capture.
9 Is Microscope Camera suitable for industrial or quality control applications?
It is widely used in industrial and quality control applications to inspect small parts, electronics and materials for defects or damage.
10 Can Microscope Camera be used for cell culture analysis?
It is commonly used for cell culture analysis in biological research to monitor cell growth and behavior.
