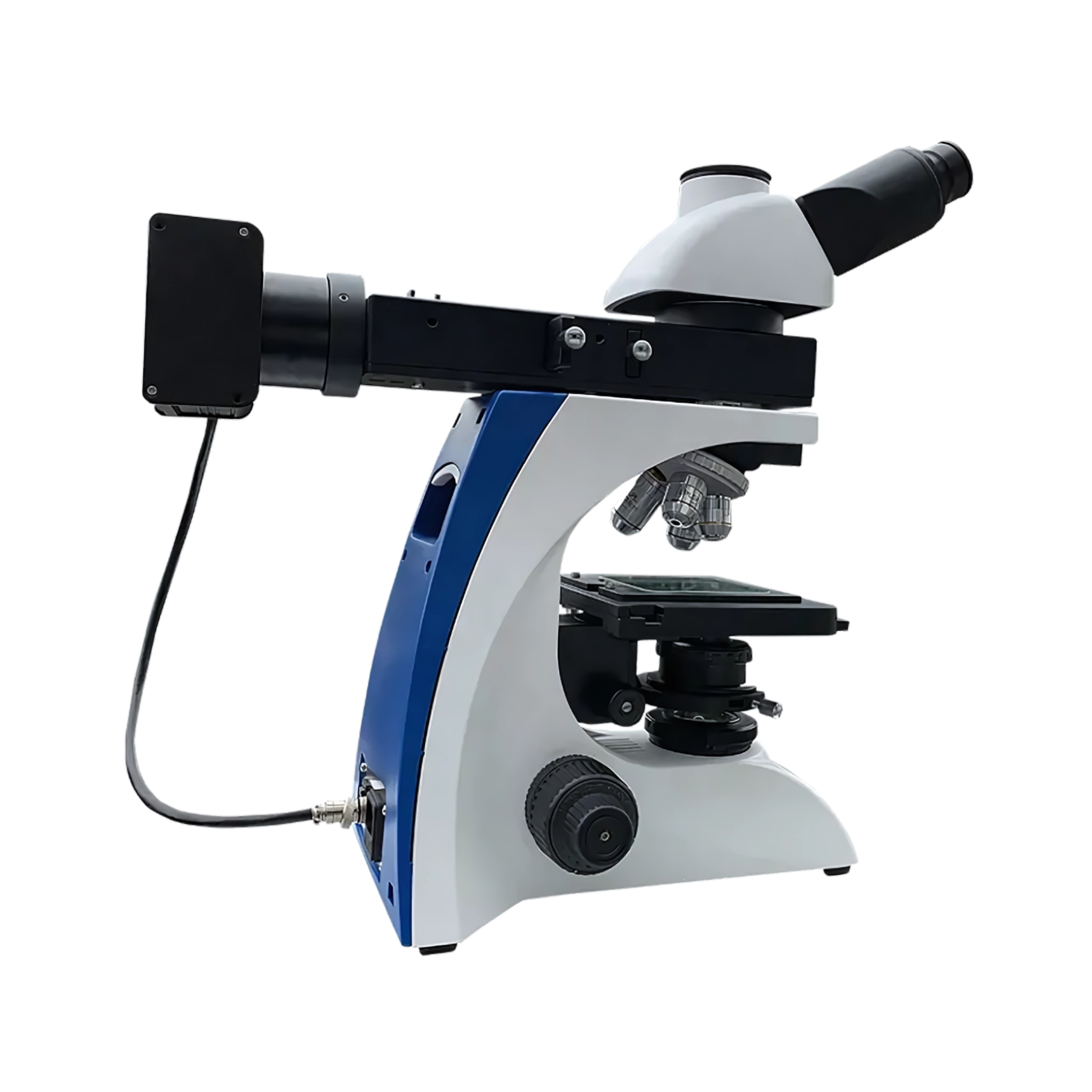

Metallurgical Microscope LMMM-708 features a trinocular head with 30° inclined and 360° rotatable for ergonomic observation. Equipped with metallurgical LWD Infinity Plan objectives in 5X, 10X, 20X, 50X for brightfield and darkfield analysis. It offers an abbe condenser N.A.1.25 with Iris diaphragm, providing uniform light projection for transmitted inspection. Incorporated light distribution ratio 80:20, optimized for clear and consistent viewing. our Metallurgical Microscope supports routine quality control, research, and educational labs with versatile performance.
Specifications
| Magnification Range | 50X to 1000X |
| Eyepiece | WF10X/22mm |
| Reticule Eyepiece | WF10X/22mm |
| Objectives (Bright and Dark Field) | 5X/10X/20X/50X |
| Viewing Head | Trinocular Head |
| Head Position | 30° inclined, 360° rotatable |
| Interpupillary Distance | 48 to 76mm |
| Light Distribution Ratio | 80:20 |
| Polarizing Unit | Polarizer/ Analyzer |
| Condenser | Abbe N.A.1.25, with Iris Diaphragm |
| Nosepiece | Quadplex |
| Focusing Knob | Coaxial coarse and fine focusing knob |
| Coarse Stroke | 25mm |
| Fine Stroke Per Rotation | 0.2mm |
| Fine Division | 2 μm |
| Reflecting Illumination System | 12V/50W Halogen lamp |
| Transmitting Illumination System | 5WLED lamp |
| Mechanical Stage Dimension | 182mm × 140mm |
| Mechanical Stage Adjustment Range | 77 × 52 mm |
| Power Supply | 100V to 240V |
| Packaging Dimension | 520mm×470mm×430mm |
| Net Weight | 12 kg |
| Gross Weight | 16 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Metallurgical Microscope LMMM-708 | $ 5200 | Each of 1 |
Features
Dual Illumination System
Quadplex Nosepiece
Adjustable Mechanical Stage
High-Resolution Focusing Knobs
Durable Stable Base
Applications
Metallurgical Microscope LMMM-708 is vital for examining circuit boards, thin films, and microelectronic components, as well as performing routine quality control in steel, automotive, aerospace, and heavy machinery industries.
Similar Products
$ 2662.5 / Pack of 1
$ 2425 / Pack of 1
$ 3700 / Each of 1
$ 2787.5 / Each of 1
$ 4875 / Each of 1
$ 3075 / Each of 1
$ 2550 / Each of 1
Frequently Asked Questions
1 What is a Metallurgical Microscope?
A Metallurgical Microscope is an apparatus designed specifically for observing and analyzing the microstructure of metals and other solid materials.
2 How does Metallurgical Microscope work?
It works by using reflected light rather than transmitted light, allowing the observation of opaque specimens such as metals.
3 Can Metallurgical Microscope analyze grain size in metals?
It is commonly used to analyze grain size, phase boundaries, and microstructures in metallic samples.
4 What kind of samples can be observed under Metallurgical Microscope?
It can observe polished and etched metal samples, coatings, welds, failures, and surface treatments.
5 Can Metallurgical Microscope be used for quality control?
It is widely used in quality control processes to inspect metal parts for defects, uniformity, and adherence to industry standards.
6 Can Metallurgical Microscope be used for coating thickness measurement?
It is used to measure coating thickness by analyzing cross-sectional samples prepared through precise polishing and etching.
7 Can Metallurgical Microscope be used in studying corrosion?
It is used to study corrosion by examining surface pitting, intergranular attack, and oxide layer formation in metals.
8 How does Metallurgical Microscope assist in analyzing cast iron microstructures?
It assists in analyzing cast iron microstructures by revealing graphite morphology, matrix composition, and the distribution of carbides or pearlite.
9 How is Metallurgical Microscope used in the analysis of forged components?
It is used to inspect forged components for grain flow patterns, inclusions, and potential material segregation resulting from forging processes.
10 What is the role of Metallurgical Microscope in aerospace material testing?
It plays a key role in aerospace material testing by analyzing high-performance alloys for fatigue cracks, microstructural uniformity, and oxidation layers.
