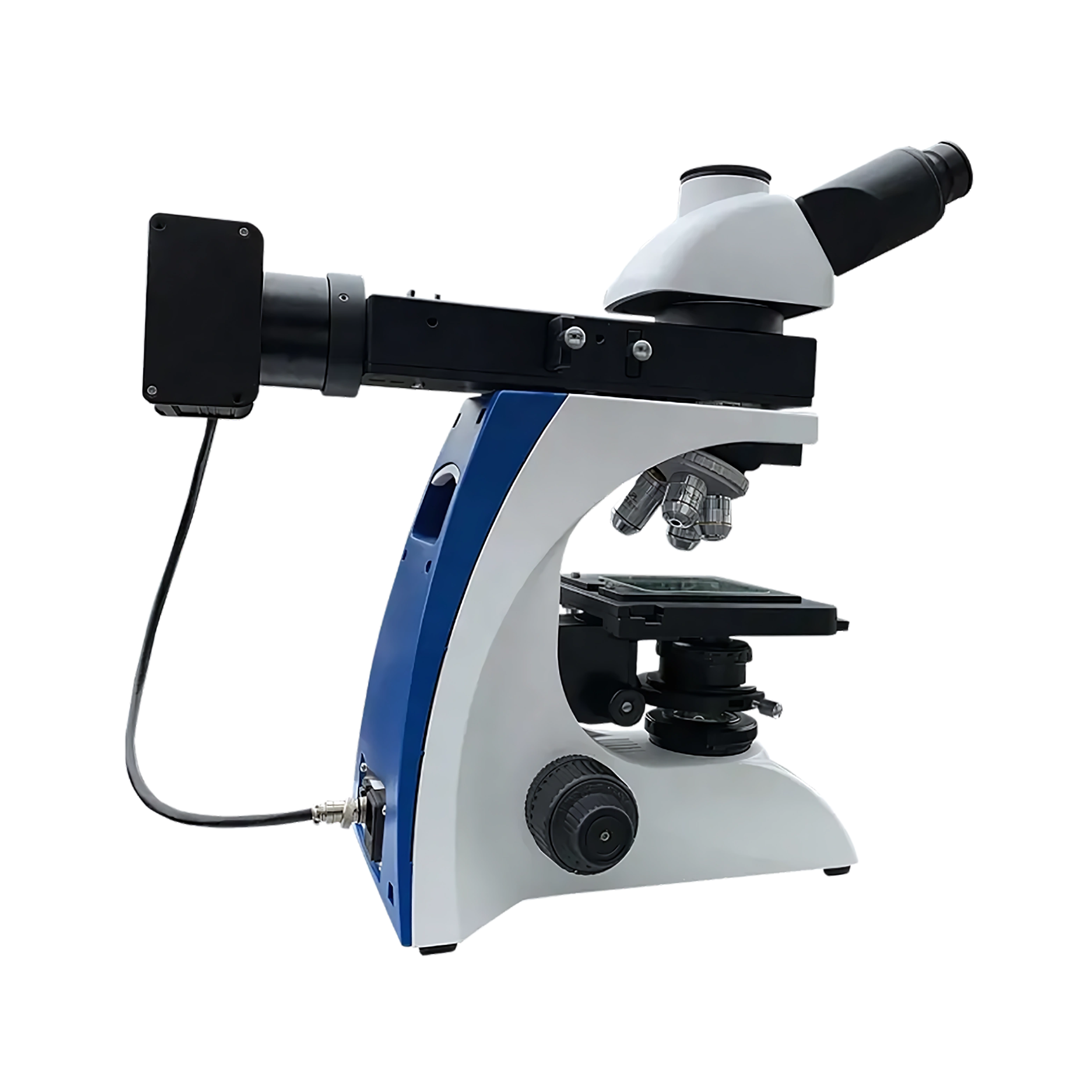

Metallurgical Microscope LMMM-706 offers a magnification range of 50X to 1000X for detailed observation. Built with an 80:20 light distribution ratio, balancing brightness between viewing tube and camera port. It features a quintuple revolving nosepiece for seamless switching among multiple objectives. Equipped with coaxial coarse and fine focusing, 25mm coarse stroke, and 0.2mm fine rotation. Our Metallurgical Microscope includes LED reflecting and transmitting illumination for versatile analysis.
Specifications
| Magnification Range | 50X to 1000X |
| Eyepiece | WF10X/22mm |
| Reticule Eyepiece | WF10X/22mm |
| Objectives (Semi Apochromatic) | 5X/10X/20X/50X |
| Viewing Head | Trinocular Head |
| Head Position | 30° inclined, 360° rotatable |
| Interpupillary Distance | 48 to 76mm |
| Light Distribution Ratio | 80:20 |
| Polarizing Unit | Polarizer/ Analyzer |
| Condenser | Abbe N.A.1.25, with Iris Diaphragm |
| Nosepiece | Quintuple |
| Focusing Knob | Coaxial coarse and fine focusing knob |
| Coarse Stroke | 25mm |
| Fine Stroke Per Rotation | 0.2mm |
| Fine Division | 2 μm |
| Reflecting Illumination System | 5W LED |
| Transmitting Illumination System | 5WLED |
| Mechanical Stage Dimension | 182 ×140 mm |
| Mechanical Stage Adjustment Range | 77 × 52 mm |
| Power Supply | 100V to 240V |
| Packaging Dimension | 520mm×470mm×430mm |
| Net Weight | 12 kg |
| Gross Weight | 16 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Metallurgical Microscope LMMM-706 | $ 3700 | Each of 1 |
Features
Reticule Eyepiece
Plan Semi-Apochromatic Lenses
Polarizer
Abbe Condenser
Spacious Mechanical Stage
Applications
Metallurgical Microscope LMMM-706 is crucial for examining the microstructures of metals and alloys, enabling identification of grain size, phase distribution, and material defects, while supporting quality control, material certification, and advanced research in metallurgy and engineering.
Similar Products
$ 5200 / Each of 1
$ 2662.5 / Pack of 1
$ 4875 / Each of 1
$ 2425 / Pack of 1
$ 2550 / Each of 1
$ 3075 / Each of 1
$ 2787.5 / Each of 1
Frequently Asked Questions
1 What is a Metallurgical Microscope?
A Metallurgical Microscope is an apparatus designed specifically for observing and analyzing the microstructure of metals and other solid materials.
2 How does Metallurgical Microscope work?
It works by using reflected light rather than transmitted light, allowing the observation of opaque specimens such as metals.
3 Can Metallurgical Microscope analyze grain size in metals?
It is commonly used to analyze grain size, phase boundaries, and microstructures in metallic samples.
4 What kind of samples can be observed under Metallurgical Microscope?
It can observe polished and etched metal samples, coatings, welds, failures, and surface treatments.
5 Can Metallurgical Microscope be used for quality control?
It is widely used in quality control processes to inspect metal parts for defects, uniformity, and adherence to industry standards.
6 Can Metallurgical Microscope be used for coating thickness measurement?
It is used to measure coating thickness by analyzing cross-sectional samples prepared through precise polishing and etching.
7 Can Metallurgical Microscope be used in studying corrosion?
It is used to study corrosion by examining surface pitting, intergranular attack, and oxide layer formation in metals.
8 How does Metallurgical Microscope assist in analyzing cast iron microstructures?
It assists in analyzing cast iron microstructures by revealing graphite morphology, matrix composition, and the distribution of carbides or pearlite.
9 How is Metallurgical Microscope used in the analysis of forged components?
It is used to inspect forged components for grain flow patterns, inclusions, and potential material segregation resulting from forging processes.
10 What is the role of Metallurgical Microscope in aerospace material testing?
It plays a key role in aerospace material testing by analyzing high-performance alloys for fatigue cracks, microstructural uniformity, and oxidation layers.
