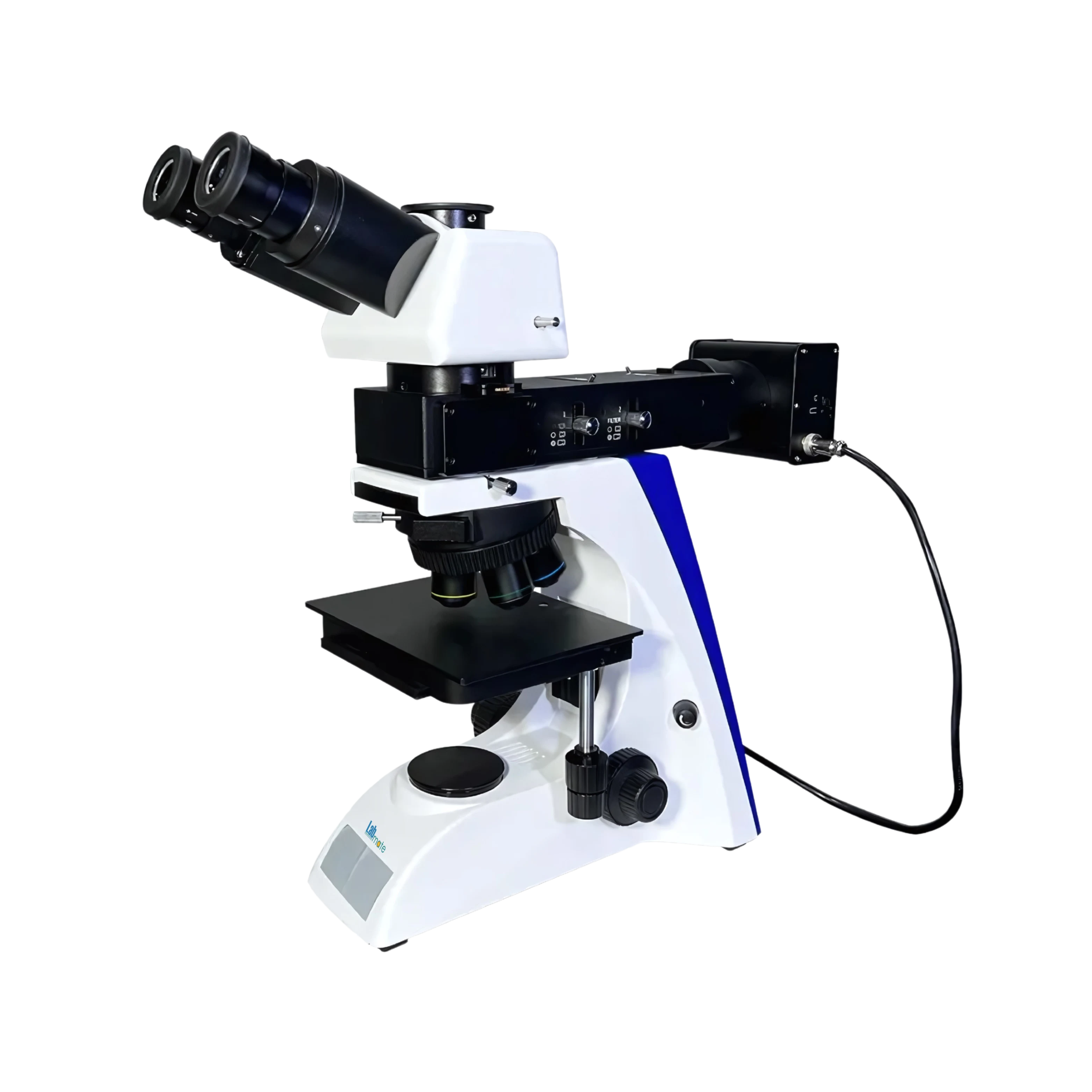

Metallurgical Microscope LMMM-707 offers 5X, 10X, 20X, and 50X objectives that support both bright and dark field observations. It features a trinocular viewing system that enables simultaneous visual inspection and digital documentation. Equipped with 30° inclination and 360° rotatable head, ensuring flexibility and comfort in operation. Integrated with an interpupillary adjustment range of 48 to 76mm for strain-free viewing experience. Our Metallurgical Microscope includes a quadplex nosepiece enabling effortless transition across magnifications.
Specifications
| Magnification Range | 50X to 1000X |
| Eyepiece | WF10X/22mm |
| Reticule Eyepiece | WF10X/22mm |
| Objectives (Bright and Dark Field) | 5X/10X/20X/50X |
| Viewing Head | Trinocular Head |
| Head Position | 30° inclined, 360° rotatable |
| Interpupillary Distance | 48 to 76mm |
| Light Distribution Ratio | 80:20 |
| Polarizing Unit | Polarizer/ Analyzer |
| Nosepiece | Quadplex |
| Focusing Knob | Coaxial coarse and fine focusing knob |
| Coarse Stroke | 25mm |
| Fine Stroke Per Rotation | 0.2mm |
| Fine Division | 2 μm |
| Reflecting Illumination System | 12V/50W Halogen lamp |
| Mechanical Stage Dimension | 200 × 150 mm |
| Mechanical Stage Adjustment Range | 77 × 52 mm |
| Mechanical Extra Vertical Adjustment | 50mm |
| Power Supply | 100V to 240V |
| Packaging Dimension | 520mm×470mm×430mm |
| Net Weight | 12 kg |
| Gross Weight | 16 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Metallurgical Microscope LMMM-707 | $ 4875 | Each of 1 |
Features
Reticule Eyepiece
Built-In Polarizer
Large Mechanical Stage
Smooth Focusing System
Halogen Illumination System
Applications
Metallurgical Microscope LMMM-707 is essential for advance research across materials engineering, nanotechnology, and applied physics, enabling detailed study of microstructures and material properties.
Similar Products
$ 2787.5 / Each of 1
$ 2425 / Pack of 1
$ 5200 / Each of 1
$ 2550 / Each of 1
$ 3075 / Each of 1
$ 2662.5 / Pack of 1
$ 3700 / Each of 1
Frequently Asked Questions
1 What is a Metallurgical Microscope?
A Metallurgical Microscope is an apparatus designed specifically for observing and analyzing the microstructure of metals and other solid materials.
2 How does Metallurgical Microscope work?
It works by using reflected light rather than transmitted light, allowing the observation of opaque specimens such as metals.
3 Can Metallurgical Microscope analyze grain size in metals?
It is commonly used to analyze grain size, phase boundaries, and microstructures in metallic samples.
4 What kind of samples can be observed under Metallurgical Microscope?
It can observe polished and etched metal samples, coatings, welds, failures, and surface treatments.
5 Can Metallurgical Microscope be used for quality control?
It is widely used in quality control processes to inspect metal parts for defects, uniformity, and adherence to industry standards.
6 Can Metallurgical Microscope be used for coating thickness measurement?
It is used to measure coating thickness by analyzing cross-sectional samples prepared through precise polishing and etching.
7 Can Metallurgical Microscope be used in studying corrosion?
It is used to study corrosion by examining surface pitting, intergranular attack, and oxide layer formation in metals.
8 How does Metallurgical Microscope assist in analyzing cast iron microstructures?
It assists in analyzing cast iron microstructures by revealing graphite morphology, matrix composition, and the distribution of carbides or pearlite.
9 How is Metallurgical Microscope used in the analysis of forged components?
It is used to inspect forged components for grain flow patterns, inclusions, and potential material segregation resulting from forging processes.
10 What is the role of Metallurgical Microscope in aerospace material testing?
It plays a key role in aerospace material testing by analyzing high-performance alloys for fatigue cracks, microstructural uniformity, and oxidation layers.
