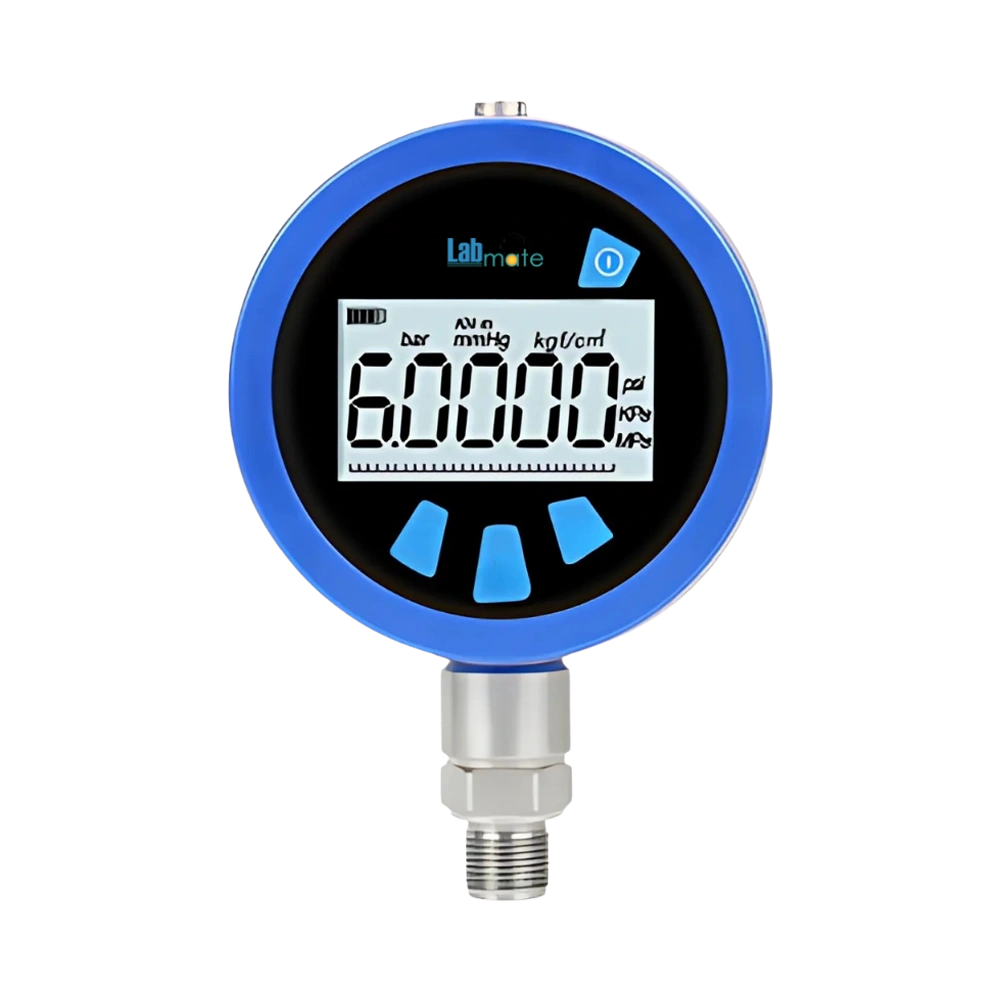

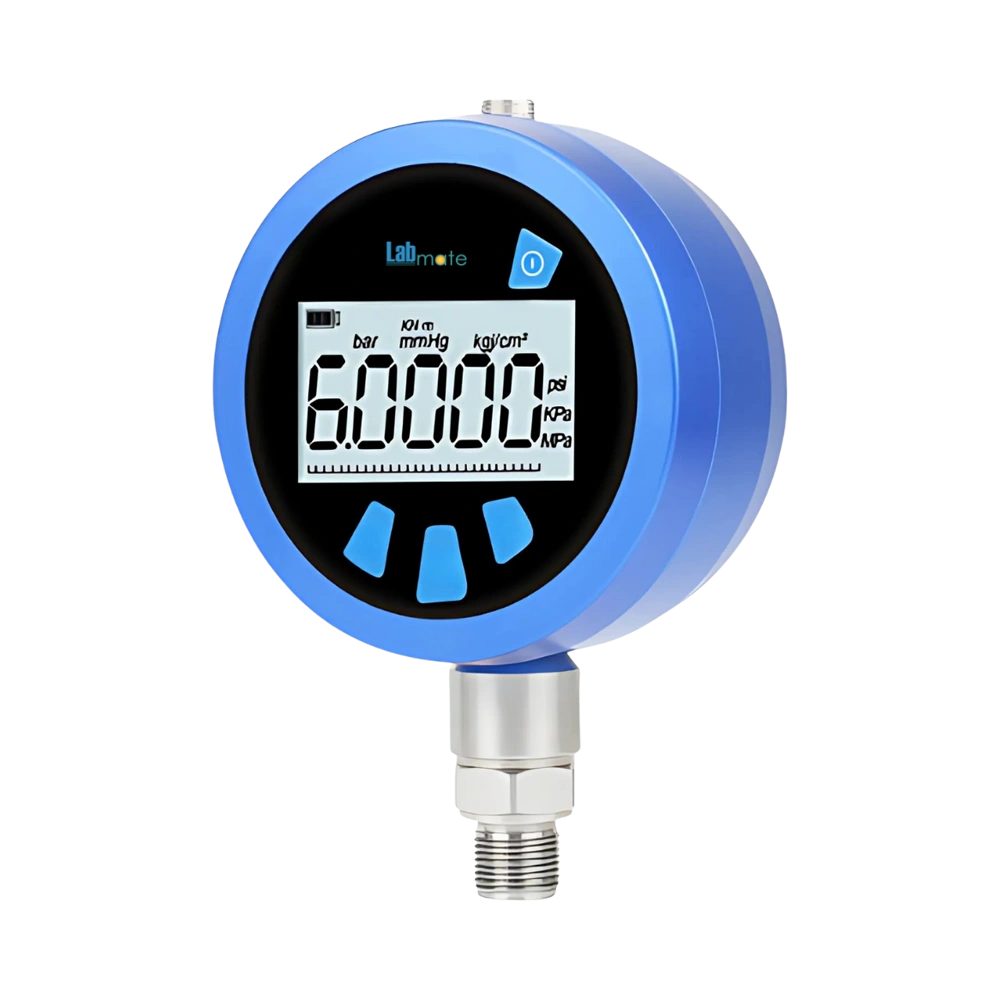

Digital Pressure Gauge LMDPG-D107 is engineered for ultimate accuracy delivering high-performance pressure monitoring. Uses cutting-edge quartz resonant sensor technology to maintain precision even in electrically unstable environments. Equipped with real-time display output and stable signal processing. Stands as robust and reliable choice for professionals who require uncompromised accuracy and consistency. Our Digital Pressure Gauge LMDPG-D107 is reliable offering consistent performance and long-term stability.
Specifications
| Pressure Range | 10kPa to 60MPa |
| Dial Size | 120 mm |
| Accuracy | 0.02% |
| Pressure Types | Gauge, Vacuum, Absolute |
| Display | 5-digit LCD with simulated light bar |
| Power Supply | Rechargeable Lithium Battery |
| Case Material | Stainless Steel |
| Pressure Units | kPa, bar, mmHg, psi, kgf/cm², MPa, Pa |
| Medium Temperature | -10°C to 60°C |
| Working Temperature | -10°C to 60°C |
| Working Humidity | ≤80% RH |
| Connection Sizes | M20×1.5, G1/4, G1/2, NPT1/4, NPT3/8 |
| Mounting Type | RS485 |
| Gross Dimension | 265 × 170 × 100 mm |
| Weight | 0.8 Kg |
Features
Advanced quartz-based pressure sensing
Large backlit LCD screen with real-time pressure display
Integrated lithium rechargeable battery
One-button control for easy operation and backlight toggle
Applications
Digital Pressure Gauge LMDPG-D107 is extensively used in pharmaceutical compliance monitoring, semiconductor process regulation, and lab-grade gas distribution systems. Ensures high fidelity pressure control in regulated manufacturing and inspection procedures.
