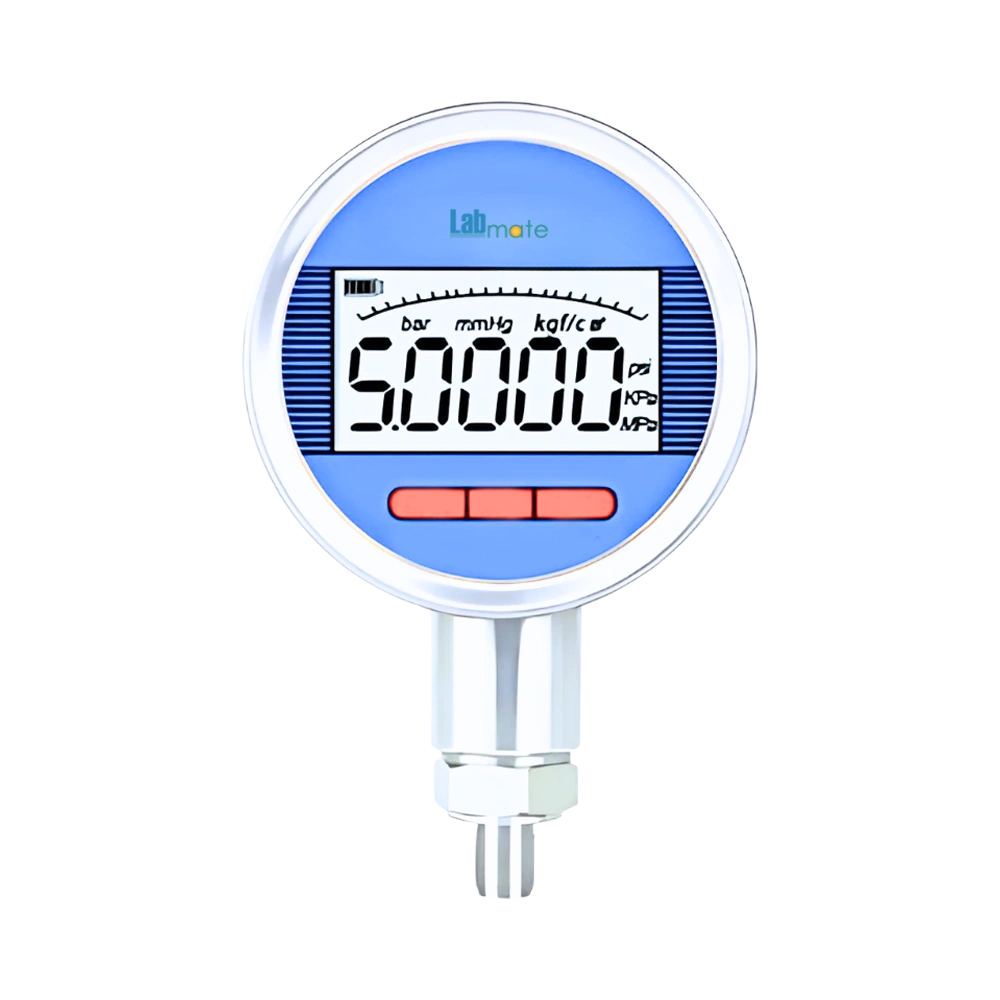

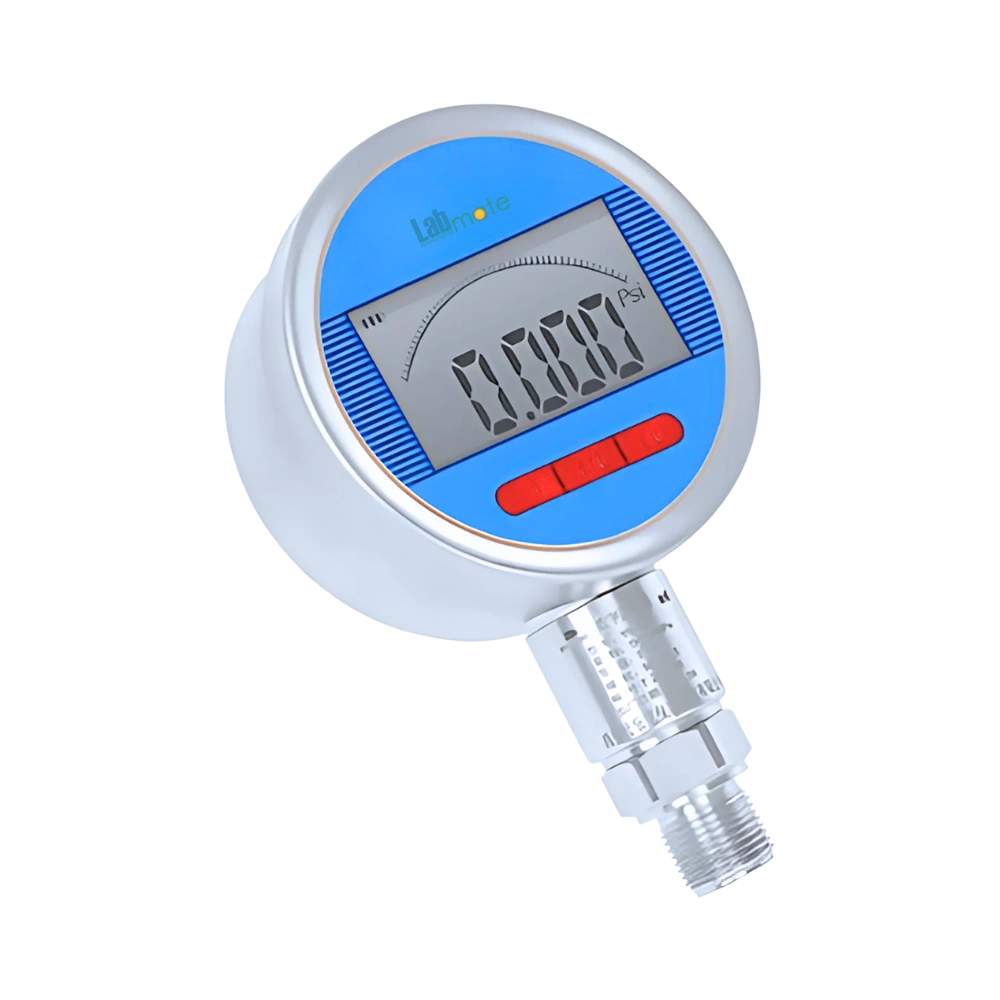

Digital Pressure Gauge LMDPG-B202 is compact digital solution for precision pressure sensing in gas and liquid systems. Built with robust imported sensors, rustproof metal casing, and advanced visual feedback. Designed for high reliability and steady output in industrial applications. Features minimal power consumption and a 5-digit LCD with an analog percentage indicator. Our Digital Pressure Gauge LMDPG-B202 is Effective for both isolated setups and system-based monitoring.
Specifications
| Pressure Range | 0 to 10kPa |
| Dial Size | 100 mm |
| Accuracy | 0.2% |
| Pressure Types | Gauge, Absolute, Vacuum |
| Display | 5-digit LCD with simulated light bar |
| Measuring Medium | Water, Gas (compatible with SS) |
| Power Supply | Built-in High-Performance Lithium Battery |
| Case Material | Stainless Steel |
| Pressure Units | kPa, bar, mmHg, mHg, psi, kgf/cm², MPa, Pa |
| Medium Temperature | -10°C to 60°C |
| Working Temperature | -10°C to 60°C |
| Working Humidity | ≤80% RH |
| Connection Sizes | M20×1.5, G1/4, G1/2, NPT1/4, NPT3/8 |
| Mounting Type | Male Thread (standard) |
| Gross Dimension | 213 × 150 × 90 |
| Weight | 0.5 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Digital Pressure Gauge LMDPG-B202 | $ 1037.5 | MOQ of 10 |
Features
Real-time pressure shown on 5-digit LCD
Precision guaranteed by imported sensor unit
Power-saving lithium-based system
Industrial-grade stainless steel enclosure
Slim and durable design
Settings adjustable with onboard keys
Applications
The Digital Pressure Gauge LMDPG-B202 supports pressure monitoring and calibration across multiple domains like chemical and pharma manufacturing, HVAC maintenance, water recycling plants, and lab-based instrumentation setups.
