Get Quote
Contact us now to receive a detailed quotation.

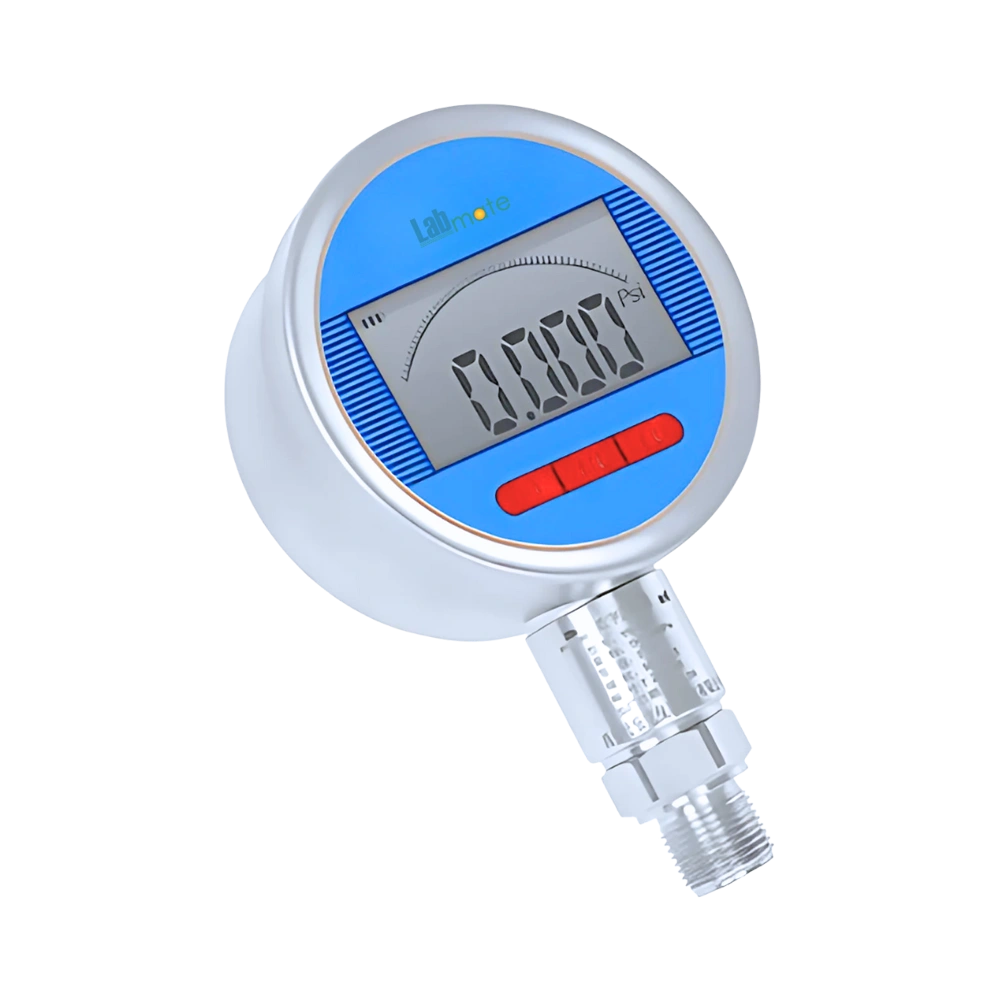

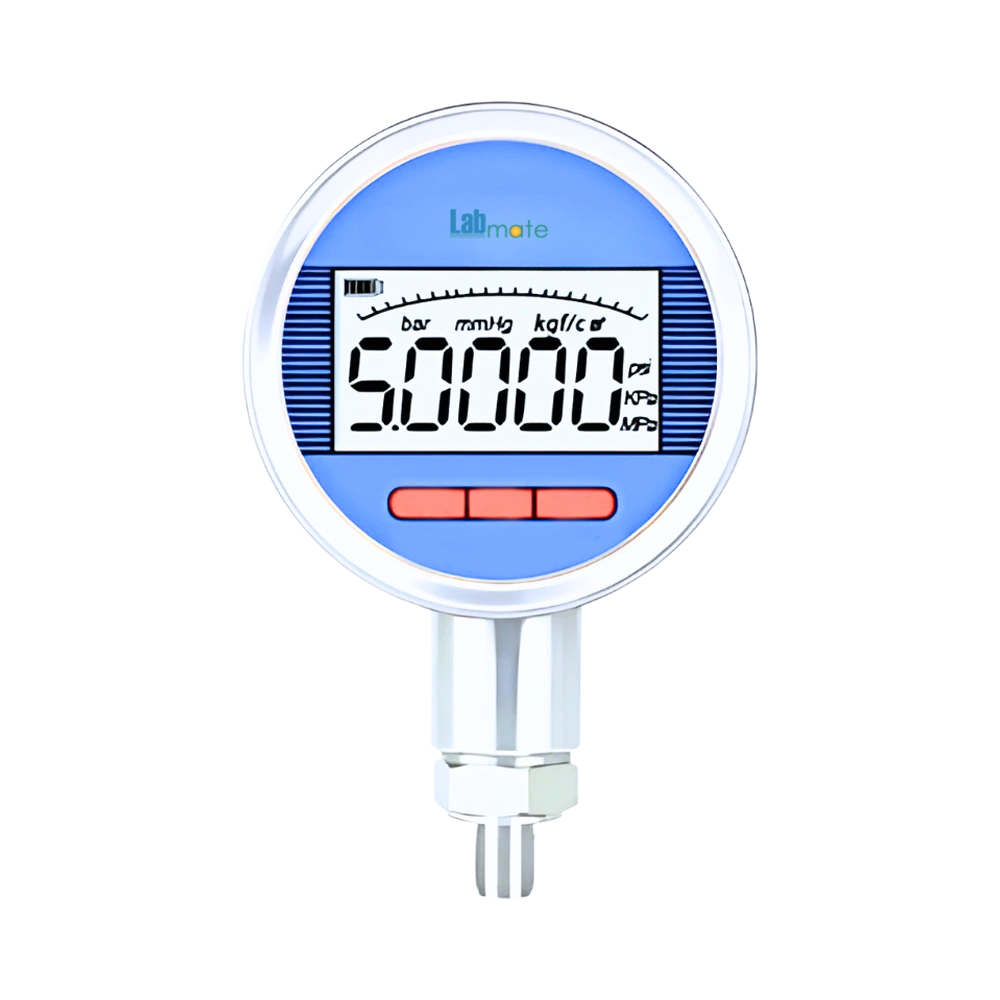

Digital Pressure Gauge LMDPG-B106 is precision-built compact gauge for measuring fluid and gas pressure. Outfitted with high-grade imported sensor technology, anti-corrosive casing, and responsive display output. Designed to offer stable and accurate readings in rigorous industrial settings. Features an ultra-low power processor and 5-digit LCD coupled with analog scale feedback. Our Digital Pressure Gauge LMDPG-B106 is suitable for both direct system use and modular integration.
Specifications
| Pressure Range | 160MPa to 250MPa |
| Dial Size | 100 mm |
| Accuracy | 0.5% |
| Pressure Types | Gauge, Absolute, Vacuum |
| Display | 5-digit LCD with simulated light bar |
| Measuring Medium | Water, Gas (compatible with SS) |
| Power Supply | Built-in High-Performance Lithium Battery |
| Case Material | Stainless Steel |
| Pressure Units | kPa, bar, mmHg, mHg, psi, kgf/cm², MPa, Pa |
| Medium Temperature | -10°C to 60°C |
| Working Temperature | -10°C to 60°C |
| Working Humidity | ≤80% RH |
| Connection Sizes | M20×1.5, G1/4, G1/2, NPT1/4, NPT3/8 |
| Mounting Type | Male Thread (standard) |
| Gross Dimension | 213 × 150 × 90 |
| Weight | 0.5 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Digital Pressure Gauge LMDPG-B106 | $ 1146.25 | MOQ of 10 |
Features
High-visibility five-digit digital screen
Accurate imported sensor for stable readings
Optimized for minimal power draw
Stainless steel housing with anti-corrosion properties
Small footprint and lightweight form
Onboard push-button configuration
Applications
Digital Pressure Gauge LMDPG-B106 is engineered for precise pressure assessment in sectors like pharmaceuticals, chemicals, HVAC, and municipal water management. This gauge performs equally well in on-site maintenance checks and controlled lab setups.
