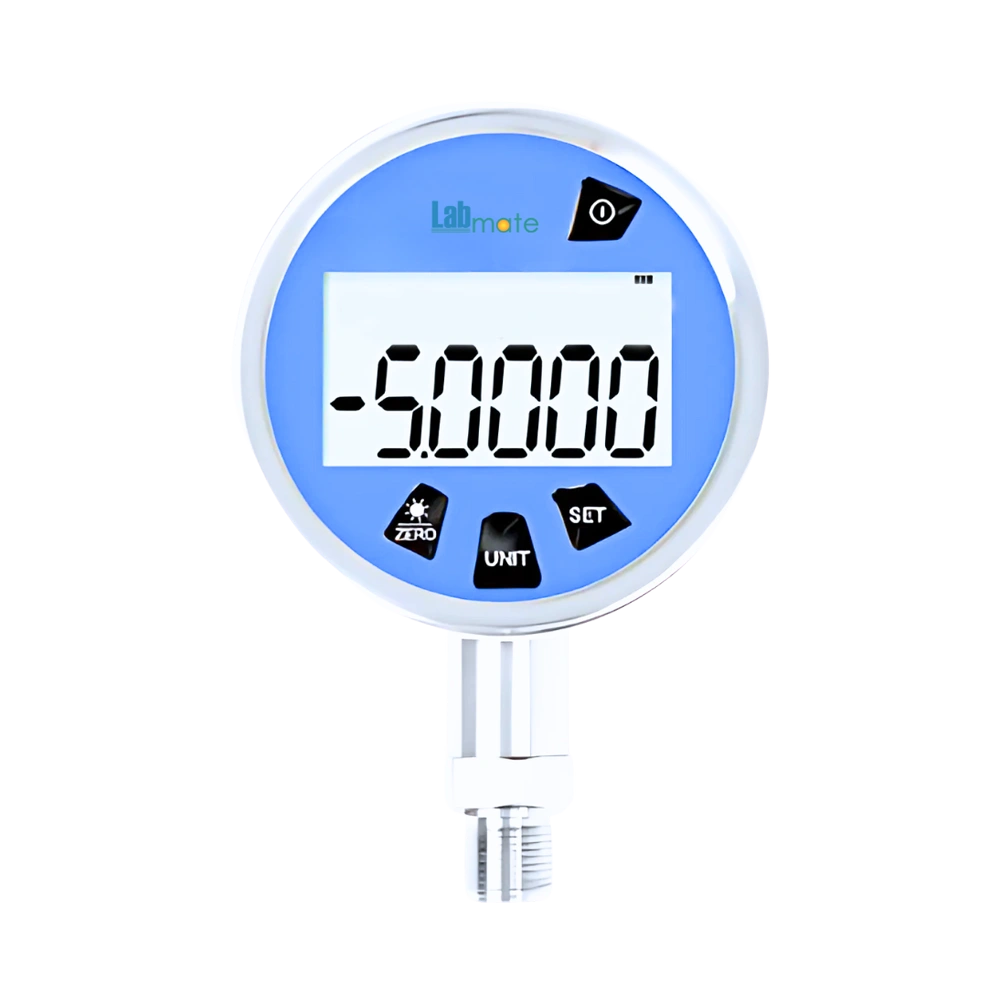

Digital Pressure Gauge LMDPG-C301 offers real-time pressure readings with micro-power consumption tech. Equipped with clear LCD readout ensuring easy monitoring in all environments. Constructed with lithium battery supporting over three years of use. Holds strong performance even in changing temperature and humidity conditions. Includes multiple pressure units and RS485 interface for smooth integration. Our Digital Pressure Gauge LMDPG-C301 is reliable for long-term usage in lab, field, and industry sites.
Specifications
| Pressure Range | 0.1 to 0MPa |
| Dial Size | 100 mm |
| Accuracy | 0.1% |
| Pressure Types | Gauge, Absolute, Vacuum |
| Display | 5-digit LCD with simulated light bar |
| Measuring Medium | Water, Gas (compatible with SS) |
| Power Supply | Rechargeable Lithium Battery (3+ years) |
| Case Material | Stainless Steel |
| Pressure Units | MPa, KPa, PSI, mmHg, bar, kgf/cm² |
| Medium Temperature | -10°C to 60°C |
| Working Temperature | -10°C to 60°C |
| Working Humidity | ≤80% RH |
| Connection Sizes | M20×1.5, G1/4, G1/2, NPT1/4, NPT3/8 |
| Mounting Type | RS485 |
| Gross Dimension | 213 × 150 × 90 mm |
| Weight | 0.6 kg |
Features
Micro-power design
Multi-unit display
RS485 output
Long battery life
Applications
Digital Pressure Gauge LMDPG-C301 is ideal for chemical processing plants, laboratories, and pharmaceutical manufacturing lines where consistent pressure tracking is essential. It's widely used for calibrating pressure transmitters, monitoring tank pressures in printing or water systems, and managing fluid pipelines. Its rugged build and RS485 data compatibility make it a smart choice for both manual field testing and integration into automated systems.
